M426R2GA3BB0-CQK

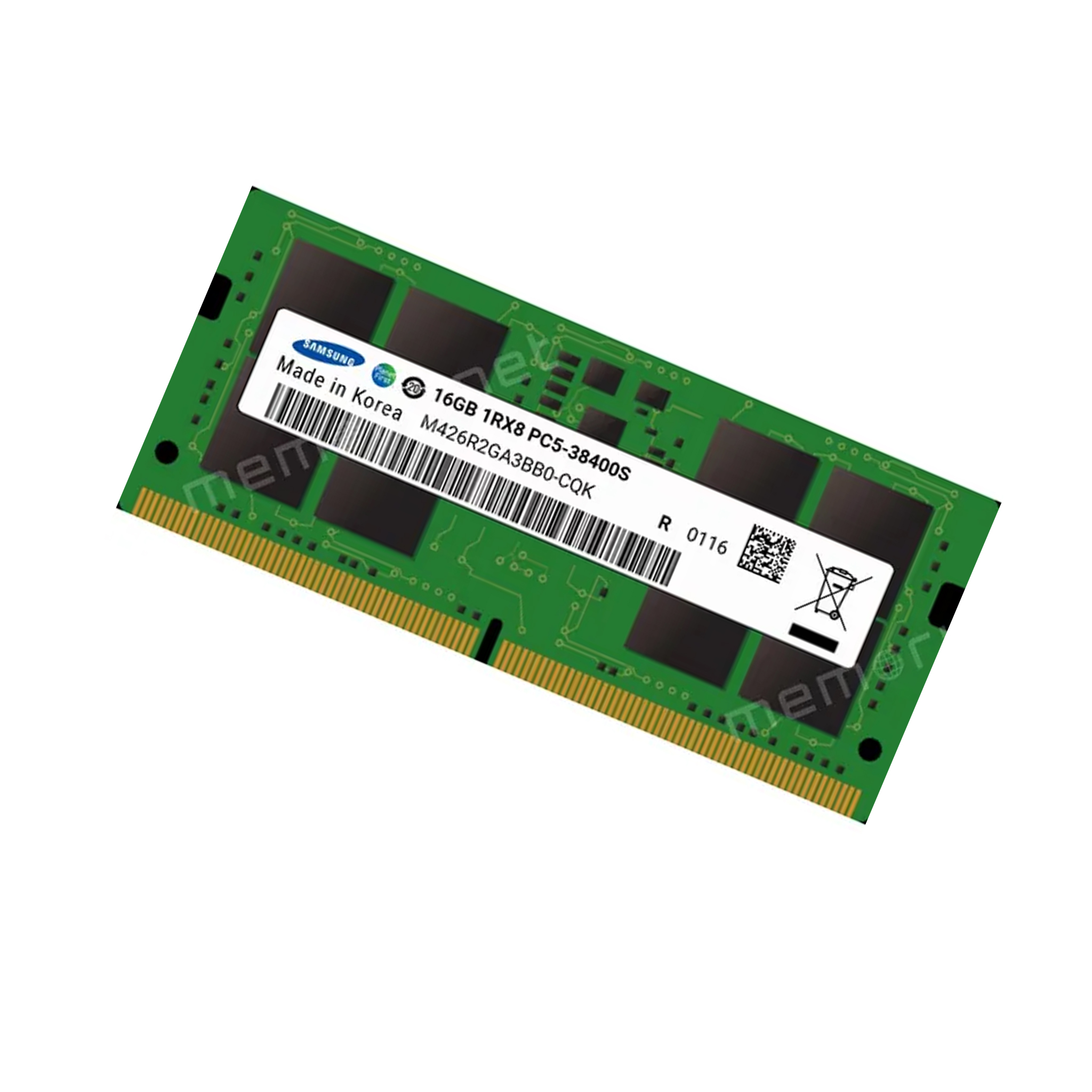

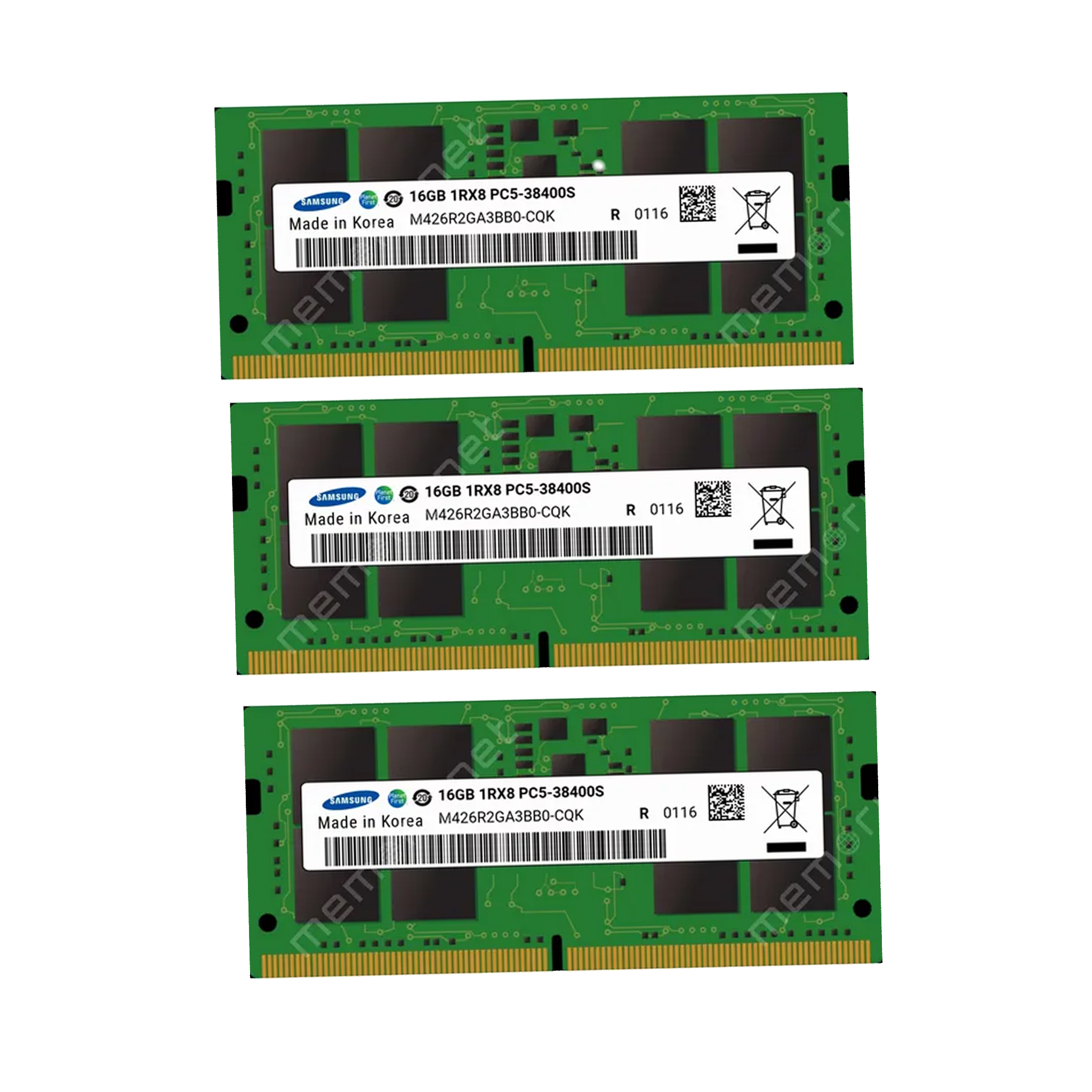

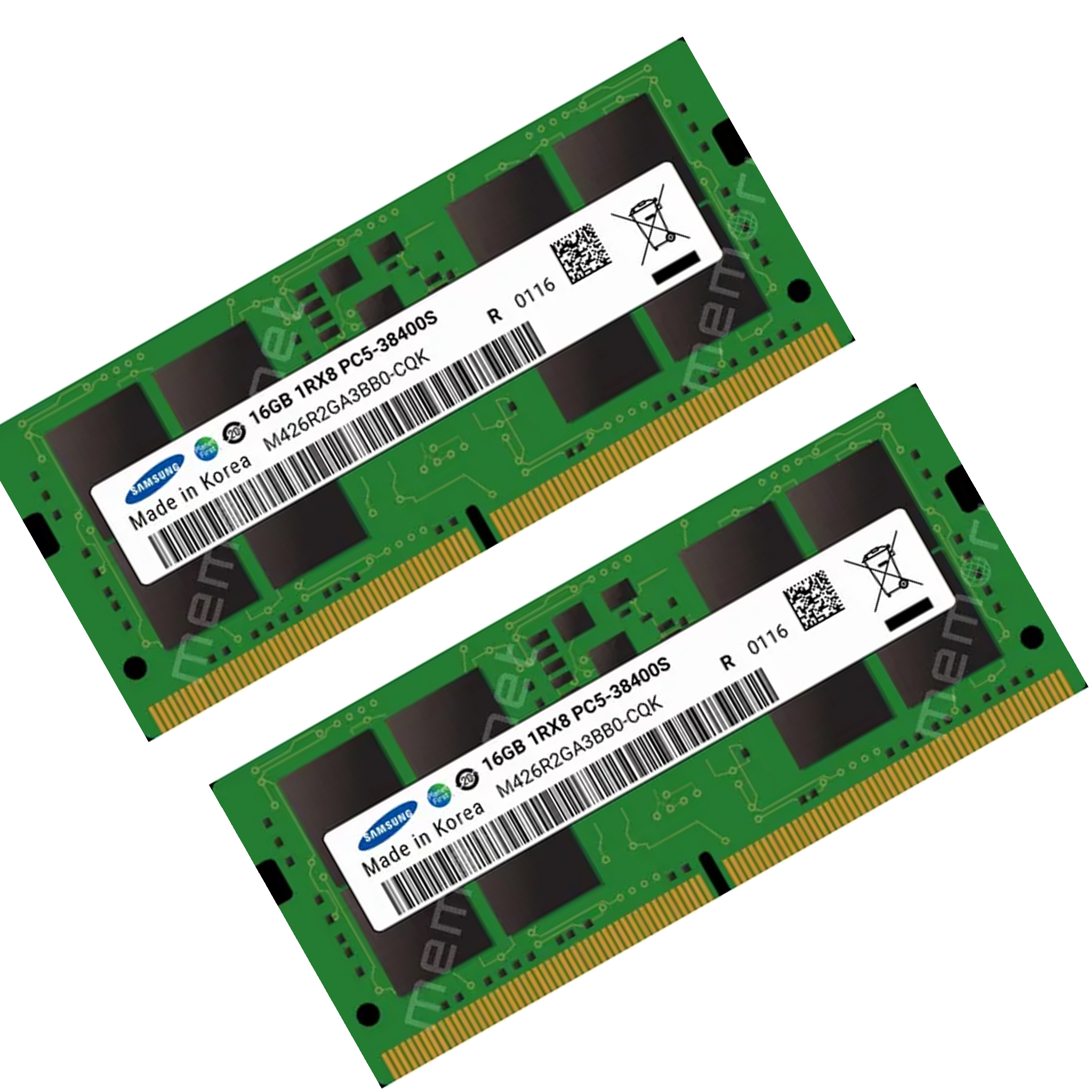

Samsung M426R2GA3BB0‑CQK is original 16GB DDR5 Unbuffered ECC SODIMM memory module, running at 4800MHz PC5‑38400, CL40 latency, 1.1V operating voltage, 262‑pin compact form factor, 1Rx8 single‑rank layout.
Integrated ECC error correction detects and repairs single‑bit memory faults, preventing random freeze, crash and data corruption caused by memory bit flip under long‑time continuous workload. As unbuffered design without register chip, it maintains low signal latency and delivers good compatibility for hardware supporting ECC SODIMM standard.
DDR5 1.1V low‑voltage specification reduces power draw and thermal generation. Compact SODIMM footprint saves motherboard space and supports simple memory expansion.
Perfect for micro‑servers, embedded workstations, industrial controllers, NAS storage and edge computing devices for non‑stop business operations.
The M426R2GA3BB0-CQK is an authentic Samsung new-generation industrial and embedded-grade DDR5 ECC SODIMM memory module, built with original high-density industrial DRAM chips. Featuring 16GB single-module mainstream large capacity and mature 1Rx8 single-rank low-latency architecture, it is exclusively designed for new-gen embedded industrial hosts, compact micro servers, industrial NAS storage, lightweight mobile workstations and high-end industrial embedded control terminals. It provides high-capacity, low-delay and ultra-stable memory expansion for intelligent industrial computing, embedded virtualization and 24/7 long-term uninterrupted industrial core business operation.
2. DDR5 4800MHz Standard High-Efficiency Bandwidth & 1.1V Low Power Architecture
This latest industrial-grade DDR5 memory supports DDR5 4800MHz (PC5-38400) standard high-frequency bandwidth, delivering upgraded data transmission efficiency and lower operating latency compared with traditional DDR4 industrial memory. It effectively improves embedded system multi-thread processing speed, program instantaneous response and batch data throughput capability, perfectly balancing high performance and operational stability. Adopting exclusive DDR5 1.1V low-voltage energy-saving design, it significantly reduces continuous operating power consumption and heat accumulation, fully adapting to long-cycle stable operation of compact and heat-sensitive embedded industrial equipment.
3. Advanced ECC Error Correction & Industrial Data Precision Guarantee
Equipped with upgraded built-in ECC real-time error correction technology, the M426R2GA3BB0-CQK can instantly detect, identify and correct single-bit and multi-bit data errors during ultra-high-frequency continuous industrial operation. It effectively avoids system stuttering, program crashes, data deviation and service interruption caused by harsh industrial environments including strong electromagnetic interference, frequent temperature changes and long-term equipment aging. It comprehensively enhances embedded system operational stability and data accuracy, fully complying with strict industrial-grade high-reliability operating standards.
4. 1Rx8 Single-Rank Low-Latency Compact DDR5 Architecture
Adopting streamlined 1Rx8 single-rank professional architecture tailored for new-generation compact embedded devices, this DDR5 SODIMM memory features simplified signal scheduling logic, lower transmission delay and stronger anti-jitter performance. The optimized compact particle arrangement ensures stable 4800MHz high-frequency output without performance attenuation under long-term light and medium industrial loads, perfectly adapting to embedded cyclic data computing, real-time industrial monitoring, intelligent data analysis and lightweight virtualization tasks.
5. Ultra-Wide Temperature Resistance & Full Embedded Device Compatibility
Manufactured in strict accordance with top-tier industrial specifications, the module supports stable operation within 0°C to 85°C ultra-wide temperature range, adapting to high-temperature, high-density and harsh on-site industrial operating environments. With ultra-low failure rate and excellent cross-brand compatibility, it perfectly matches mainstream new-gen embedded industrial hosts, micro servers, industrial NAS, intelligent industrial control workstations and dedicated embedded terminals, supporting plug-and-play rapid upgrade and stable batch capacity expansion.
Technical Specifications of M426R2GA3BB0-CQK Samsung DDR5 ECC SODIMM▼
Item | Specifications |
|---|---|
Part Number | M426R2GA3BB0-CQK |
Product Series | Samsung New-Generation Industrial DDR5 ECC SODIMM |
Capacity | 16GB |
Memory Type | DDR5 ECC SODIMM |
Frequency | 4800MHz (PC5-38400) |
Voltage | 1.1V Low Voltage |
Rank & Organization | 1Rx8 Single Rank |
Timing Parameter | CL40 40-40-40 |
Pin Definition | 262-Pin Standard DDR5 SODIMM |
Core Technology | Advanced ECC Real-Time Error Correction, DDR5 Low-Power Energy Saving, 1Rx8 Low-Latency Single-Rank Compact Architecture, High-Stability Signal Buffering |
Working Temperature | 0°C ~ 85°C Industrial Wide Temperature |
Form Factor | Compact New-Generation Industrial SODIMM |
Core Advantages | 16GB large industrial capacity, 4800MHz DDR5 high-standard bandwidth, compact 1Rx8 low-latency design, upgraded ECC error correction, 1.1V ultra-low power consumption, wide temperature resistance, 24/7 high-stability industrial continuous operation |
Application Grade | New-Generation Embedded Industrial Hosts, Compact Micro Servers, Industrial NAS Storage Devices, Lightweight Mobile Workstations, Intelligent Industrial Control Terminals, Embedded Virtualization Platforms |
Industrial Applications of M426R2GA3BB0-CQK Samsung Industrial DDR5 Memory▼
The M426R2GA3BB0-CQK is a high-cost-performance and high-reliability DDR5 memory solution for new-gen embedded industrial hardware upgrades and system iteration. With 16GB large single-module capacity and 4800MHz high-efficiency DDR5 bandwidth, it effectively solves the problems of insufficient memory capacity and low processing efficiency of aging embedded industrial equipment. The low-latency single-rank compact architecture ensures smooth and efficient operation of industrial intelligent control systems, real-time data monitoring and on-site business processing programs, maintaining long-term stable output of industrial core business tasks.
2. Compact Micro Server & Embedded Virtualization Deployment
Benefiting from upgraded ECC high-precision error correction and DDR5 high-bandwidth performance, this Samsung industrial memory is perfectly suitable for compact micro servers and lightweight embedded virtualization platforms. It supports stable parallel operation of multiple embedded virtual systems and container service scheduling. The real-time error correction mechanism eliminates data errors, signal jitter and system crashes during long-term embedded high-frequency computing, greatly improving the operational stability and service continuity of industrial virtualization systems.
3. Industrial NAS & On-Site Intelligent Data Storage
Fully compatible with mainstream new-generation industrial NAS and embedded storage devices, the M426R2GA3BB0-CQK meets the high-standard stable memory operation requirements of on-site multi-user file sharing, industrial mass data backup and centralized resource storage. The 1.1V low-power and low-heat design adapts to 24/7 uninterrupted operation of compact industrial storage equipment, effectively reducing equipment failure rate and power consumption, and ensuring safe, stable and efficient storage and invocation of industrial production data and monitoring logs.
4. Intelligent Industrial Control & Mobile Workstation Computing
With industrial-grade ultra-wide temperature adaptability and strong electromagnetic anti-interference capability, the module is widely applied to intelligent industrial control workstations, automated production equipment and mobile industrial workstations. It stably processes long-term cyclic production data collection, real-time equipment operation analysis and intelligent log statistics in harsh industrial environments, ensuring continuous, reliable and accurate operation of industrial intelligent systems and complete data traceability.
5. Industrial Intelligent Equipment DDR5 IT Iteration
As a mature new-generation DDR5 ECC SODIMM industrial memory module, it features excellent cross-brand embedded device compatibility and plug-and-play rapid upgrade capability. It helps industrial enterprises complete low-cost and high-efficiency embedded hardware iteration, upgrade overall system high-speed processing performance, reduce daily equipment operation and maintenance costs, and build low-power, energy-saving and ultra-high-stability modern industrial intelligent computing infrastructure.
