A RAM stick is the workbench that stands ready in your computer at all times.
Most people first encounter RAM when building a PC or upgrading an old one. The sales pitch is always "more capacity, higher frequency, fancy RGB," the spec sheet is dense, and prices range from a couple of hundred to two thousand or more. Overpay and it stings; buy the wrong thing and the machine will not even boot — so most people end up placing an order in a daze.
The truth is, RAM is one of the simplest parts of a computer logically, and also one of the easiest to get tangled up in through sales talk. It is not mysterious, and you do not need to understand circuits. Just grasp three things — what it does inside your computer, who decides its quality, and which specs you actually need to look at — and you can judge for yourself whether a stick is worth it.
This article will not pile on jargon. It walks through RAM from top to bottom and ends with a checklist you can follow right away.
Think of a PC as a workshop: the CPU is the worker, the hard drive is the warehouse, and RAM is the workbench in front of the worker.
The warehouse holds all your possessions — the operating system, software, and files — but they sit on shelves. If the worker needs something, they have to run over and fetch it, and every round trip costs time. A workbench is different: the materials you are actively using are spread out at hand, grab-and-go, orders of magnitude faster than running to the warehouse.
That is the core logic of RAM. It is the temporary memory that exchanges data directly with the CPU — technically called Random Access Memory (RAM) — and it has three key traits:
It clears on power loss: it only handles "the work happening right now"; shut down or restart, and everything on the bench resets to zero.
It is far faster than storage: reads and writes are orders of magnitude quicker than a mechanical hard drive — the "fast lane" of your system.
It is a natural staging ground: the CPU pulls data from RAM, and RAM prefetches from the drive; each does its own job.
So what happens when RAM runs low? The workbench is too small, materials will not fit, and the worker has to keep running back and forth to the warehouse (in practice: constant disk swapping and paging). Light cases get laggy; heavy cases blue-screen outright.

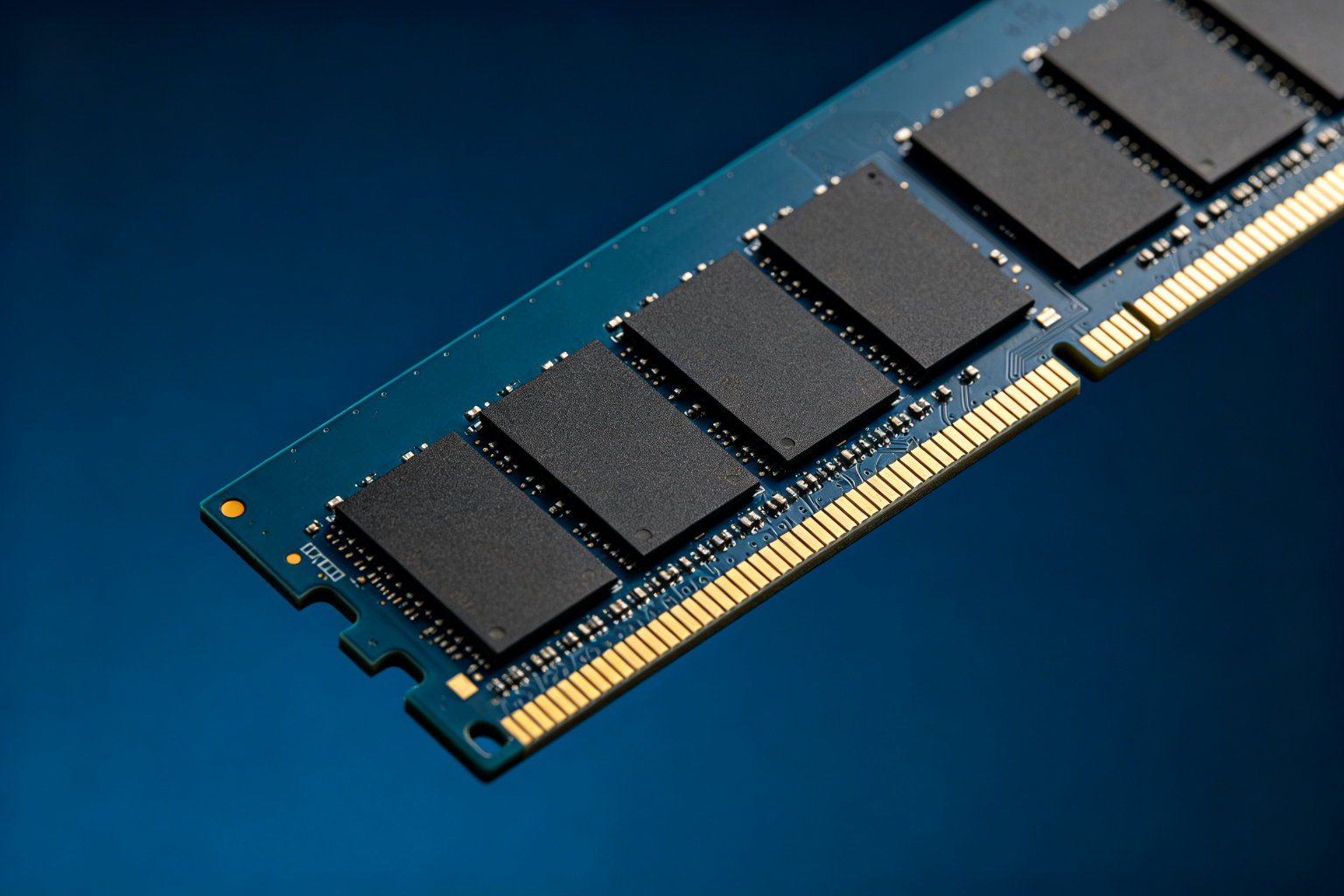

Flip a RAM stick over, and the construction is not that complicated. Remember six components:
The PCB: the "floor" that holds everything and connects all the components — the highway between circuits.
Memory chips: the real "heart," formally called DRAM chips — the row of black squares lined up on the board. Capacity, speed, and performance are basically decided here.
Gold fingers: the row of gold contacts at the bottom that plug into the motherboard slot, carrying data, address, and control signals. They are gold-plated for conductivity and corrosion resistance.
The SPD chip: a tiny eight-pin chip that acts as the stick's "ID card," recording capacity, speed, timings, and voltage so the motherboard can configure the stick correctly at boot.
Capacitors and resistors: they stabilize power, filter noise, and match signals to keep the stick running steadily.
The keying notch: the notch on the gold fingers does double duty — it stops you from inserting the stick backwards (which would short the circuit), and it distinguishes generations, physically blocking mixed installs.
The most valuable part of this little stick is the row of black chips in the middle.
Not just anyone can make memory chips. The list of DRAM manufacturers worldwide is short: Samsung, SK hynix, Micron, CXMT (ChangXin Memory), and Nanya Technology. Samsung is the industry leader, SK hynix is a close second, Micron is the largest US memory maker and owns the Crucial brand, CXMT is a major DRAM force in mainland China, and Nanya is a major Taiwanese player.
Here is a fact most ordinary buyers overlook: most RAM brands on the market — Kingston, Corsair, G.Skill, ADATA, KingBank, Apacer, and so on — do not manufacture chips at all. They buy chips and assemble them into sticks themselves.
In other words, the ceiling on a stick's quality is set by the chips, while the brand decides after-sales support and quality control. That is why people in the know say: rather than worshiping a big brand, learn to look at where the chips come from.
Strip away the sales jargon, and the specs boil down to four categories.
Card one: the generation (DDR). DDR marks the technology generation, from DDR in 2000 to DDR5 in 2020 — each generation brings higher frequency, lower power, and more capacity. But newer is not automatically better: the stick must match your motherboard's slots, and if the keying notch does not line up, it physically will not go in.
Card two: capacity. This decides how big the "workbench" is. 8GB covers basic office work and browsing; 16GB is the sweet spot for most people today (gaming and daily use); 32GB and up is where video editing and large databases come in. Buy enough, not more — do not pay for space you will never use.
Card three: channels. A channel is the "lane" between RAM and the CPU. Single-channel is one 64-bit lane; dual-channel is two, doubling bandwidth; quad- and octa-channel setups are mostly found in workstations and servers. This is the area where people trip up most — more on that next.
Card four: frequency and timings. Frequency (MHz) is how many times per second data is exchanged — 2400, 3200, and 3600 MHz are common ranges, and higher means faster transfer. Timings are four numbers (like 16-18-18-38), corresponding to CAS, tRCD, tRP, and tRAS — four kinds of latency where smaller numbers mean quicker response. The two need to balance: high frequency with tight timings is a genuinely good stick, but it costs more. As for overclocking — manually raising the frequency and tightening timings in the BIOS can squeeze out a little free performance, but it can also fail to post or destabilize the system. Not recommended for everyday users.
"Fill all the slots" means dual-channel.Dual-channel has nothing to do with how many slots you fill; it depends on the motherboard's memory controller design. On a typical four-slot board, slots 1 and 2 usually share one channel, and slots 3 and 4 the other. To get dual-channel, prefer slots 2 and 4 (due to board routing) — do not just fill them at random.
"One big stick" beats "two smaller ones."For the same 16GB, two 8GB sticks in dual-channel let the CPU read and write at the same time, doubling bandwidth; one 16GB stick is single-channel and can only read or write, not both — noticeably less efficient. That is why PC builders say: when you can, go dual.
"Expensive means right."RGB sticks with lights, sticks with heatsinks, and bare plain sticks differ mainly in looks, cooling, and price — not in performance tiers. On a budget and indifferent to looks? Plain sticks give the best value. Like lighting effects? Go RGB. Care about thermals? Pick a heatsinked kit. Do not spend extra on features you will not use.
The bigger and wider you imagine the "workbench," the easier it is to understand capacity and channels.
Condense everything above into four steps and just follow them:
Ask the motherboard first: which DDR generation does it support? How many slots? Does it support dual-channel? — check the official site or a system information tool.
Then decide capacity by use case: 8GB for office, 16GB for gaming and daily use, 32GB and up for professional creative work.
Then set up channels: if you can use two sticks, do — put them in slots 2 and 4 for dual-channel.
Finally, weigh value: pick a mainstream frequency range, the lower the timings the better, and choose a brand with solid after-sales.
RAM — say it is complicated, and it can be; say it is simple, and it is, too. Hold onto the "workbench" metaphor and remember three phrases — "chips set quality, dual-channel pays off, compatibility beats maxing out" — and you are already ahead of most buyers who only look at capacity.
