How to Choose a PC Hard Drive? Complete Guide to Avoid Buying Mistakes

Confused by HDD, SSD, M.2, SATA, and NVMe when shopping for a computer hard drive? These technical terms often lead to wrong purchases and wasted budget. This ultimate guide covers hard drive types, interfaces, speed principles, pros & cons, and data recovery tips, helping you pick the perfect hard drive with zero pitfalls.

1. Hard Disk Drive (HDD): Low Cost & Large Capacity, Fragile to Shock

Mechanical hard drives work just like vintage record players, with rotating magnetic platters and moving read/write heads to store and access data.

Two common rotation speeds:

- 5400 RPM: Quieter, lower power consumption, ideal for long-term storage of videos, photos, and archives.

- 7200 RPM: 30% faster in read/write speed, with slightly more noise and power draw. Perfect for game storage and frequent file access.

Size & Interface: All HDDs adopt the SATA interface. 3.5-inch drives are for desktop computers, while 2.5-inch compact versions are designed for laptops. Choosing the wrong size will cause installation failure.

Core Pros & Cons:

- Advantages: Ultra-low cost per TB, massive storage capacity, great for bulk data backup.

- Disadvantages: Vulnerable to drops, shocks and vibrations. Moving or shaking the running drive may scratch the platters and cause data loss.

Data Recovery: Data is retrievable in most cases if the platters are not damaged. Professional recovery via clean-room head replacement or circuit board repair is available, though the service cost is relatively high.

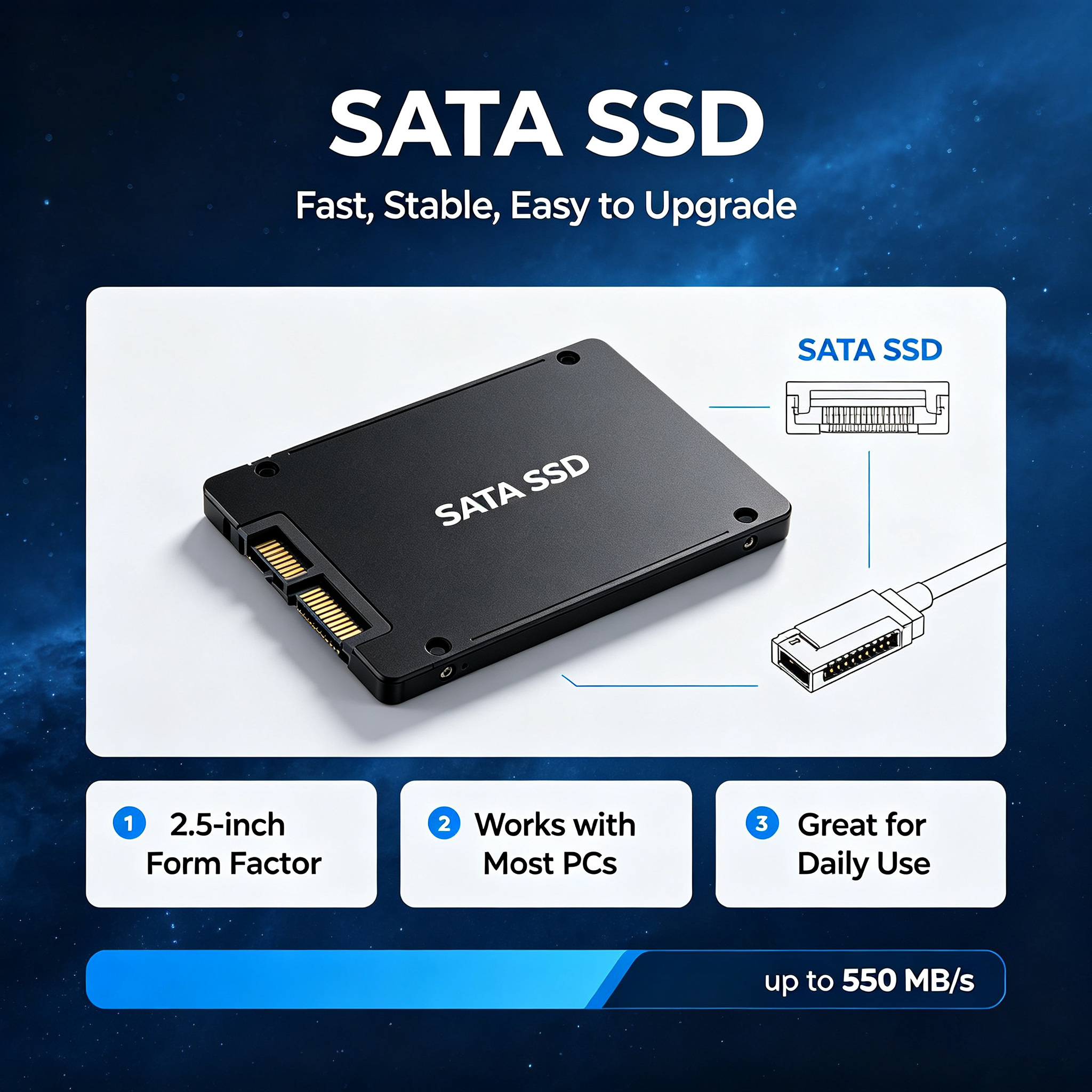

2. SATA SSD: Fast Speed & Wide Compatibility

SATA Solid State Drives have no mechanical moving parts. They store data via NAND flash chips, adopting the same storage principle as USB flash drives but with far higher performance.

Featuring a universal SATA interface, SATA SSDs are plug-and-play, perfectly compatible with old desktops and laptops for simple and effective device upgrades. It can drastically shorten boot time to just over 10 seconds.

Core Pros & Cons:

- Advantages: Shockproof, durable, stable performance, excellent compatibility for old device upgrades.

- Disadvantages: Limited write lifespan (sufficient for 5–6 years of daily use). Once the flash chip is damaged, data recovery is extremely difficult with a very low success rate.

Tip: Always back up important files separately if you use a SATA SSD.

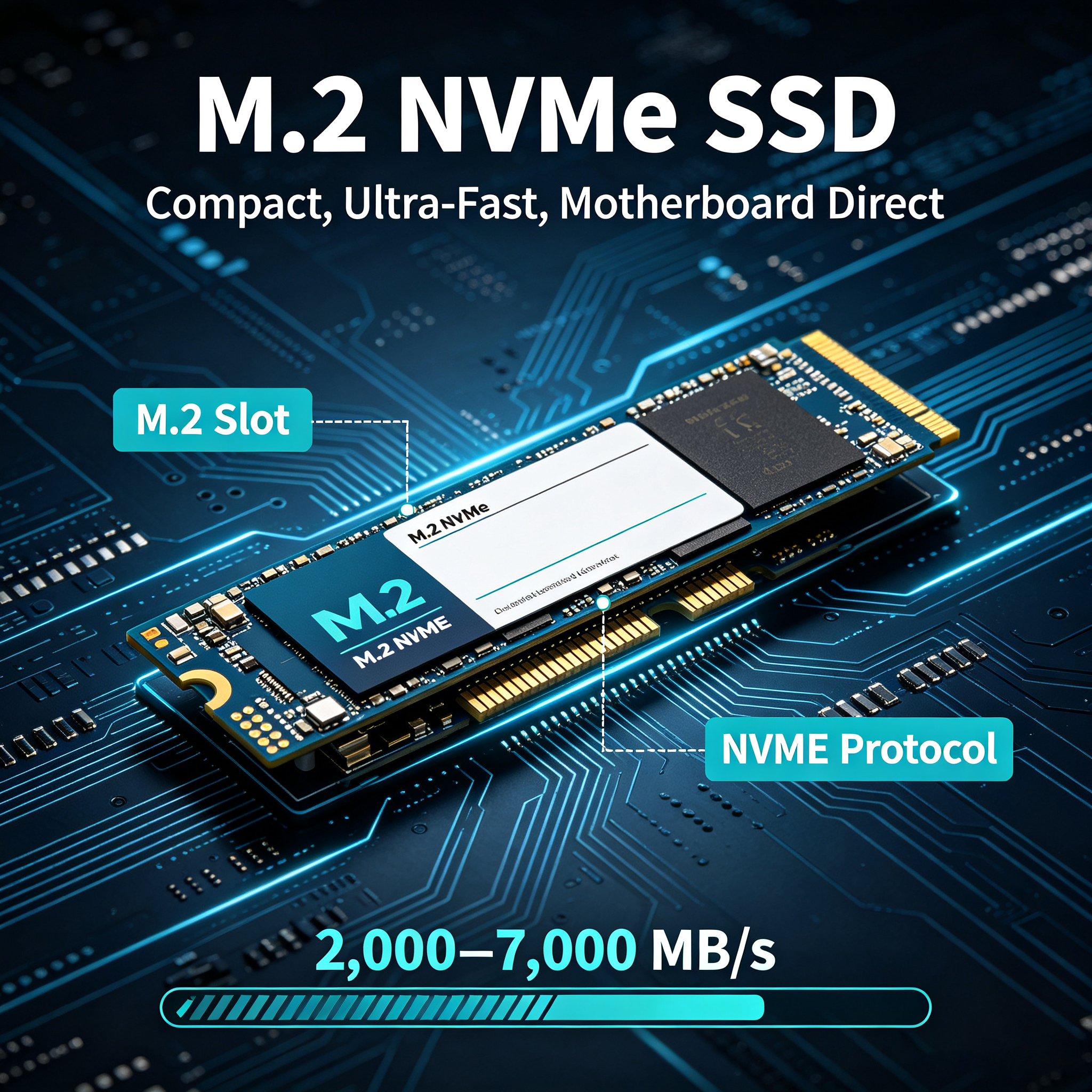

3. M.2 NVMe SSD: Compact Size & Top-Tier Speed

M.2 SSDs are gum-shaped compact drives that plug directly into the motherboard without any data cables, saving internal device space effectively.

Note: M.2 interfaces support two protocols — SATA and NVMe. They share the same port appearance but have a huge speed gap. Always choose NVMe M.2 SSDs for high performance.

Speed Comparison:

- SATA SSD: Max speed up to 550MB/s

- NVMe M.2 SSD: Speed ranges from 2000MB/s to 7000MB/s

For a 10GB file transfer, SATA SSD takes more than 10 seconds, while NVMe SSD finishes the task in only 2–3 seconds.

Core Pros & Cons:

- Advantages: Ultra-fast read/write speed, tiny size, cable-free installation, perfect for gaming PCs and high-performance devices.

- Disadvantages: High heat generation (the main controller can reach 70–80℃ under high-speed operation). Most NVMe SSDs come with a dedicated heat sink for heat dissipation.

Data Recovery: Harder to recover data than SATA SSDs. The highly integrated chip structure makes data rescue extremely difficult once damaged.

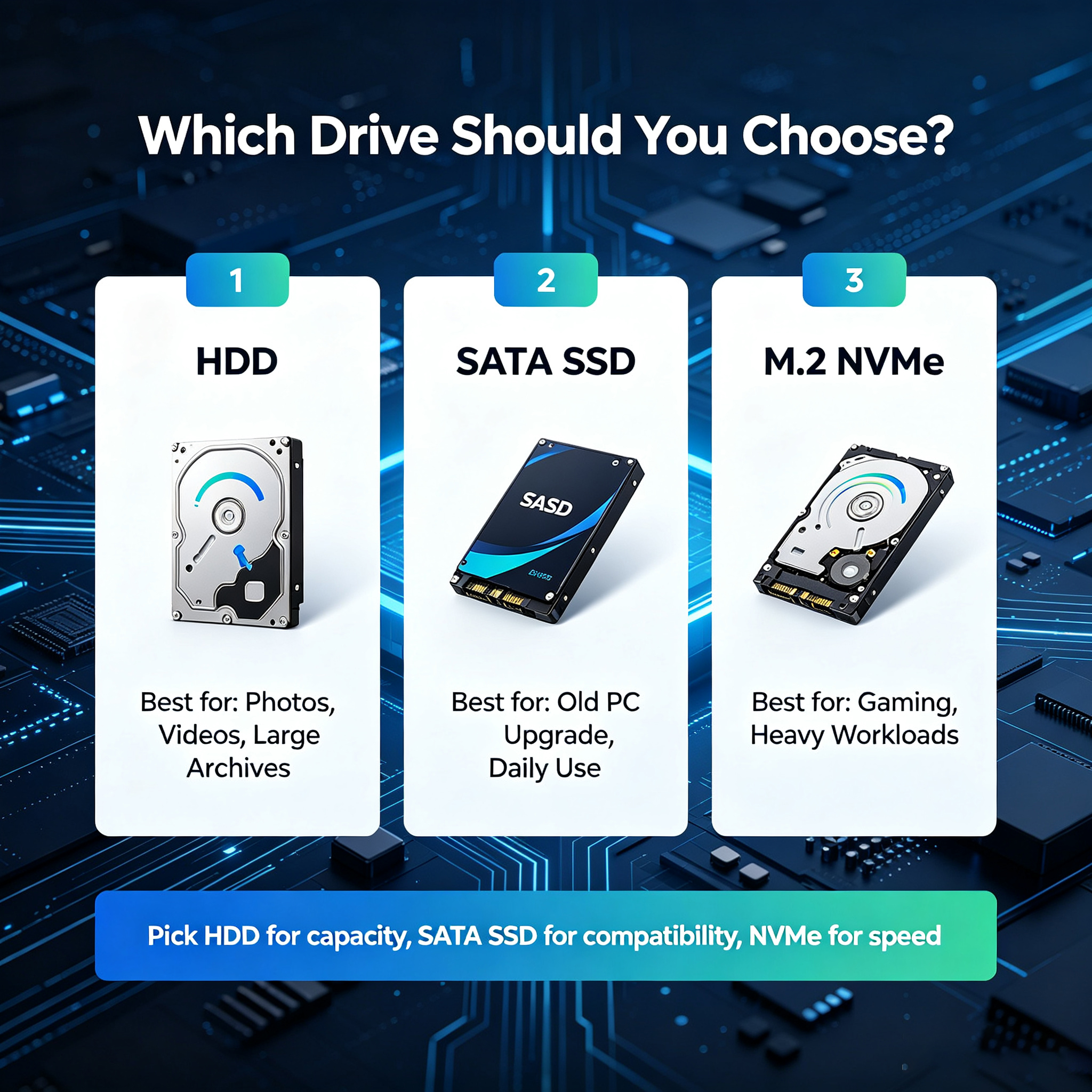

Final Buying Summary

- Bulk data storage (photos/videos/archives): 5400RPM Mechanical HDD

- Budget upgrade for old devices: SATA SSD

- Gaming, high-speed office & daily use: NVMe M.2 SSD (top priority)
