Servers run continuously under heavy load, often for years at a time. Desktop memory is designed for a single user and tolerates occasional errors; server memory is designed for reliability first. That is why servers use ECC (Error-Correcting Code) memory, why high-capacity modules use a register or buffer, and why module types are matched precisely to the motherboard and CPU.
ECC memory detects and corrects single-bit memory errors and detects (but cannot correct) multi-bit errors. A single flipped bit on a desktop might cause a crash or a corrupted file; on a server handling databases, financial records or virtual machines, the same error can corrupt data silently across thousands of users. For any system where data integrity matters — servers, NAS boxes, workstations for scientific or financial work — ECC is strongly recommended.

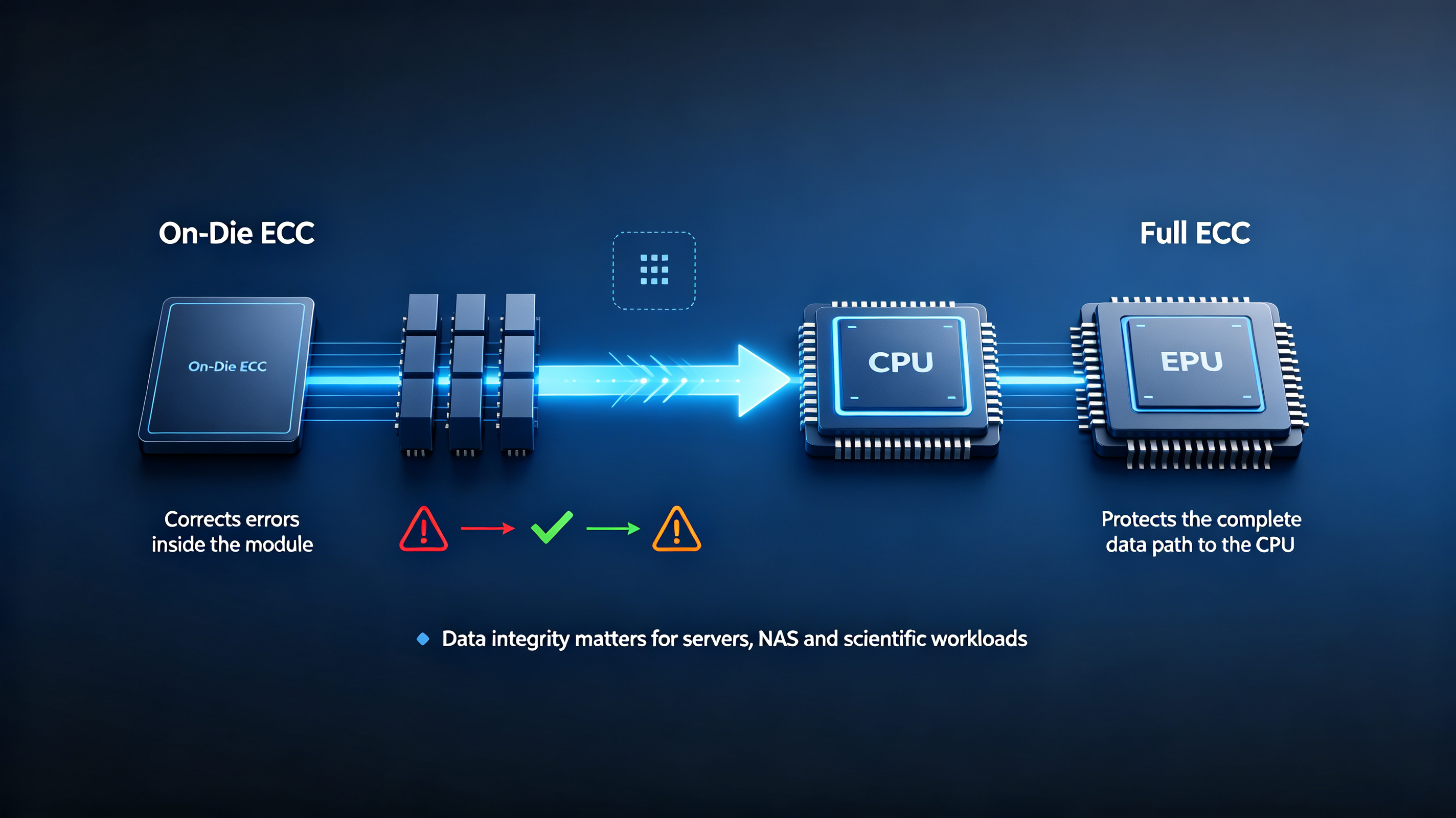

A note on terminology: DDR5 consumer memory includes on-die ECC, which corrects errors inside the module itself. This is a real reliability improvement, but it is not the same as full ECC — true ECC protects the whole data path between the module and the CPU. If you need full protection, choose ECC modules and a CPU and motherboard that support them.
Server modules come in several types. The table below explains what each one is for.

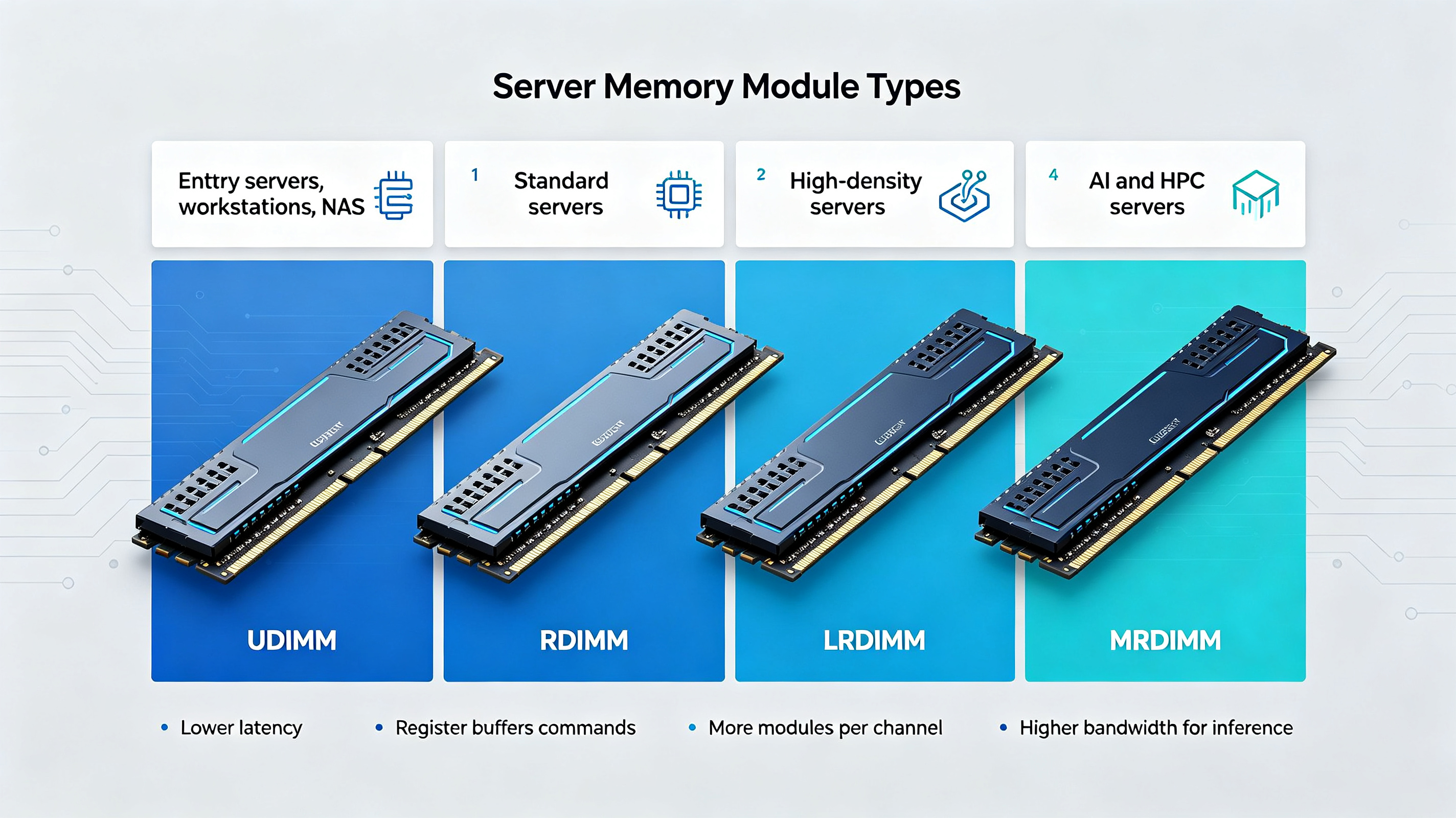

Table 1. Server memory module types compared
Type | Full Name | Typical Use | Key Points |
UDIMM | Unbuffered DIMM | Entry servers, workstations, NAS | Lower latency, no register; ECC UDIMM available up to 32 GB |
RDIMM | Registered DIMM | Standard servers | Register buffers commands; ECC standard; modules up to 256 GB |
LRDIMM | Load-Reduced DIMM | High-density servers | Reduces electrical load, allows more modules per channel |
MRDIMM | Multiplexed Rank DIMM | AI and HPC servers | Multiplies bandwidth for AI inference; emerging in 2026 |

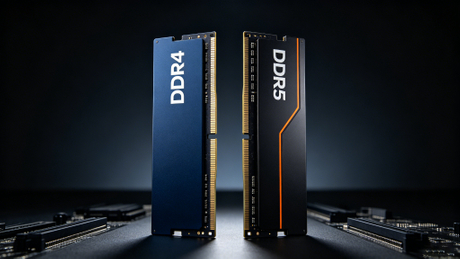

DDR4 server memory is mature, widely available and cheaper per gigabyte — a reasonable choice for legacy platforms, budget servers and workloads that do not need maximum bandwidth. DDR5 is now the standard for new servers: registered modules reach speeds of 8000 MT/s and capacities up to 256 GB per module, with better power efficiency at 1.1 V. For AI inference and high-performance computing, new MRDIMM modules push bandwidth even higher, up to 8800 MT/s.
One practical note for 2026: DRAM supply is tight and prices are elevated because AI data centres absorb a large share of global memory output. If you are planning a new server or an expansion, it pays to finalise the configuration and source modules early.

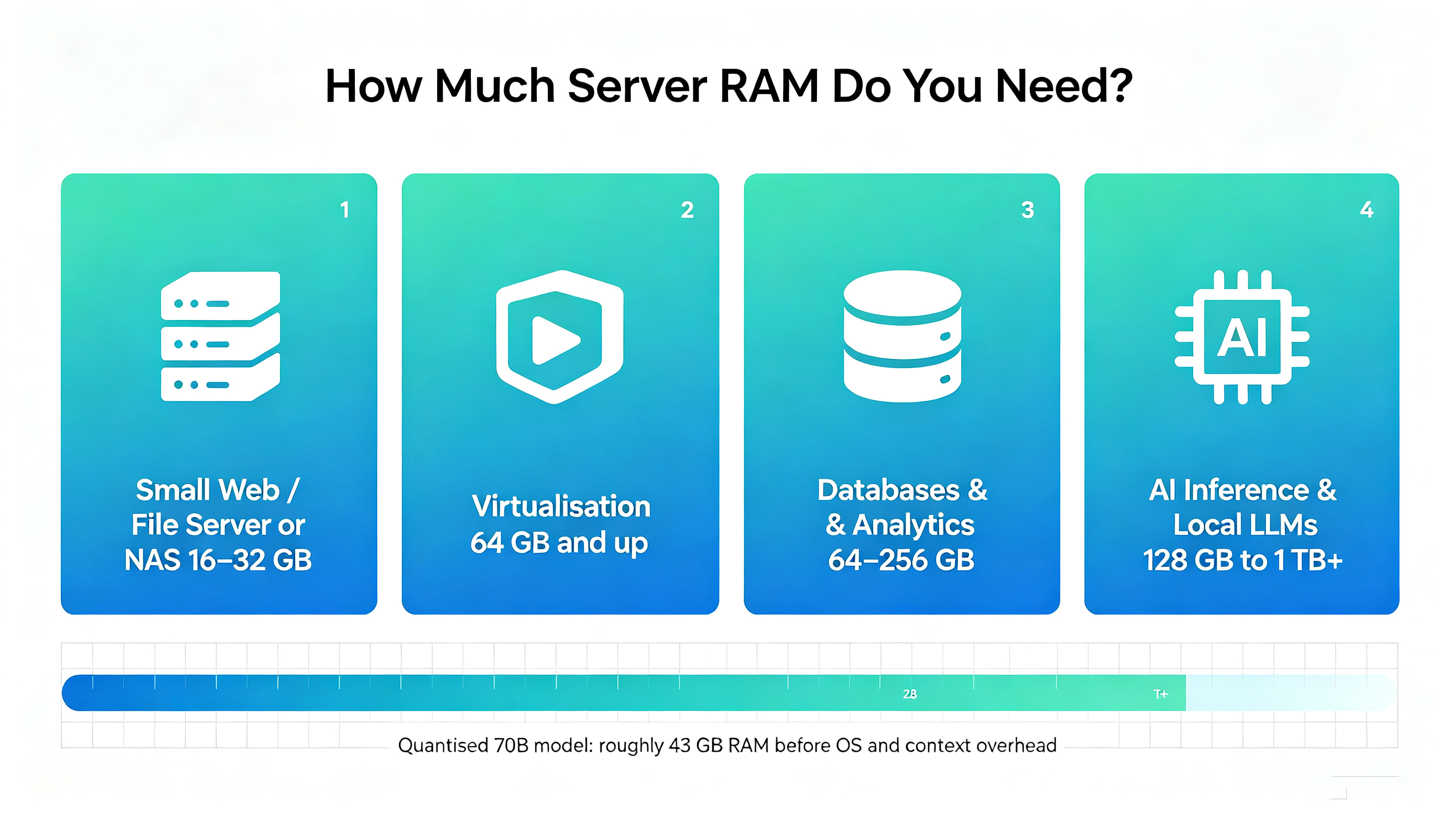

Size capacity by your peak workload, plus headroom:
· Small web/file server or NAS: 16–32 GB of ECC memory is usually enough.
· Virtualisation (a few VMs): 64 GB and up, depending on the number of guests and their workloads.
· Databases and analytics: 64–256 GB, scaled with the dataset and query load.
· AI inference and local LLMs: 128 GB to 1 TB or more. As a reference, running a quantised 70B-parameter model locally requires roughly 43 GB of RAM before the operating system and context overhead.
In general, it is cheaper to plan capacity once than to pay for a second round of modules later — especially while prices remain high.

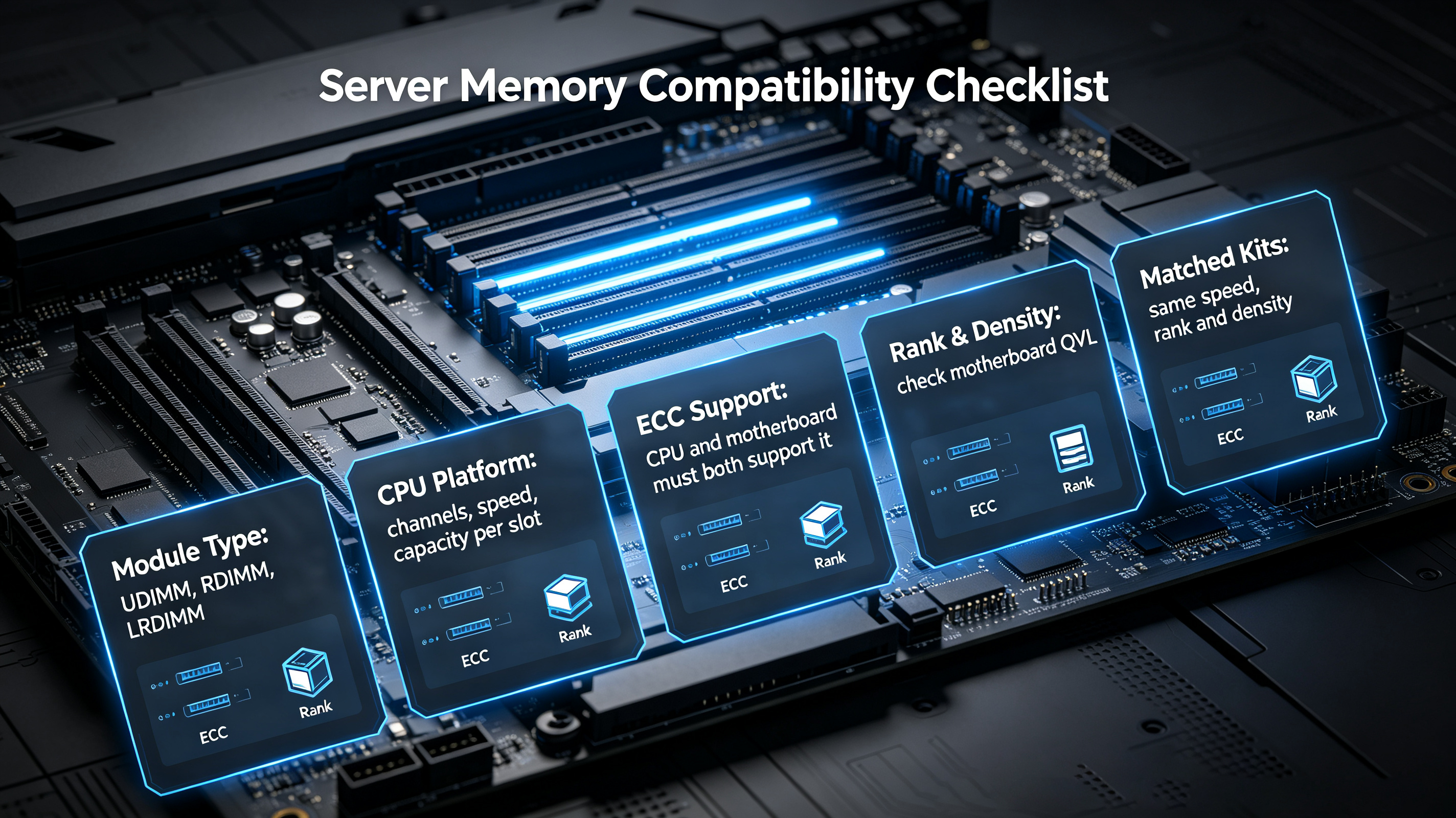

· Module type: the motherboard defines whether it takes UDIMM, RDIMM or LRDIMM. Mixing types is not supported, and RDIMM and UDIMM cannot be installed in the same system.
· CPU platform: check the CPU’s memory channels (current server CPUs support 8–12 channels; next-generation parts move to 16) and the maximum supported speed and capacity per slot.
· ECC support: the CPU and motherboard must both support ECC, and you need ECC modules — ECC is not automatic.
· Rank and density: confirm single-rank or dual-rank support and the maximum density per slot from the motherboard’s QVL.
· Matched kits: populate with modules of the same speed, rank and density; mixing batches is the most common cause of stability problems.
Buy matched kits from a single batch whenever possible, verify the motherboard QVL before ordering, and source from suppliers who test modules and stand behind their stock — a dead module in a production server costs far more than the price difference. If you buy in volume, ask about wholesale pricing and lead times, which are longer in the current market. [Your Brand] supplies ECC UDIMM, RDIMM and LRDIMM modules for major server platforms — contact us with your server model for a compatibility check and quote.
Is ECC worth it for a small home server or NAS?
Yes, if the platform supports it. Data integrity is exactly what a NAS is for, and ECC memory is the cheapest insurance against silent corruption. Choose ECC UDIMM for entry platforms.
Can I use desktop RAM in a server?
Usually not. Most servers require registered (RDIMM) or ECC modules, and the slot design and signalling differ from consumer boards. Check the server’s specifications before buying.
What is the difference between on-die ECC and full ECC?
On-die ECC (found in DDR5) corrects errors inside the module only. Full ECC checks the entire data path to the CPU and is what servers and NAS systems should use.
Which is faster, UDIMM or RDIMM?
UDIMM has slightly lower latency, but RDIMM’s register lets the system run far more modules at higher capacities, which is why servers use it. For most server workloads, capacity and stability matter more than a few nanoseconds of latency.
How much RAM does a home server or NAS need?
16–32 GB of ECC memory covers most home and small-business NAS workloads, including file sharing, backups, media serving and a few containers.
