Product Advantage ▼

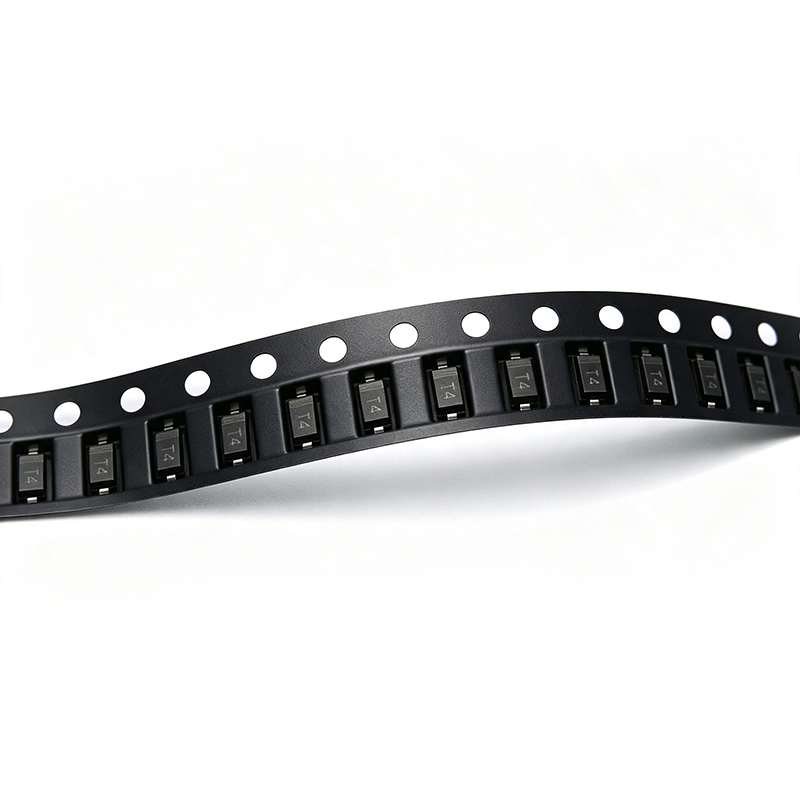

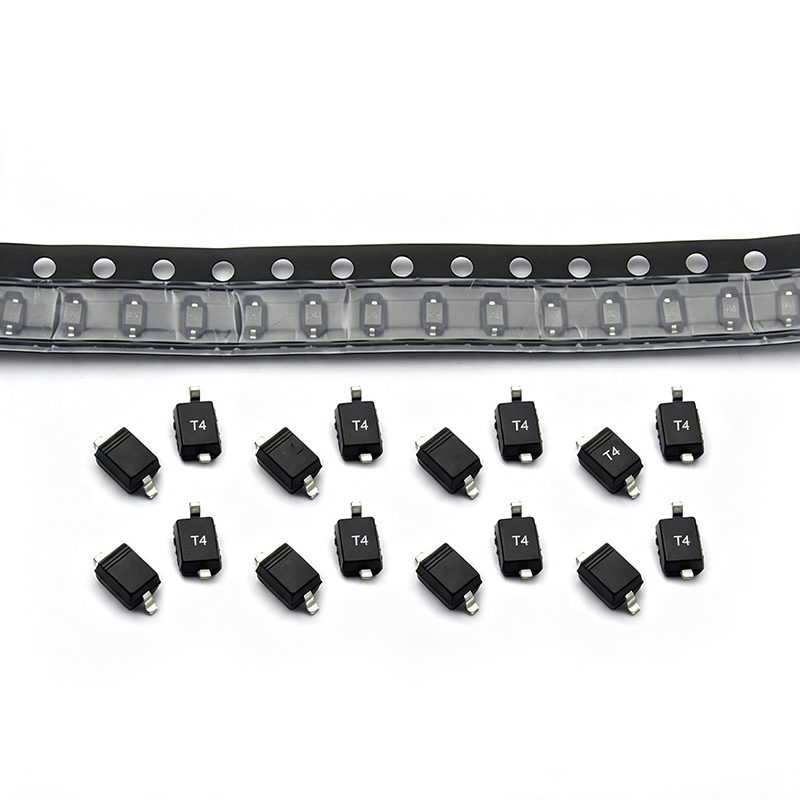

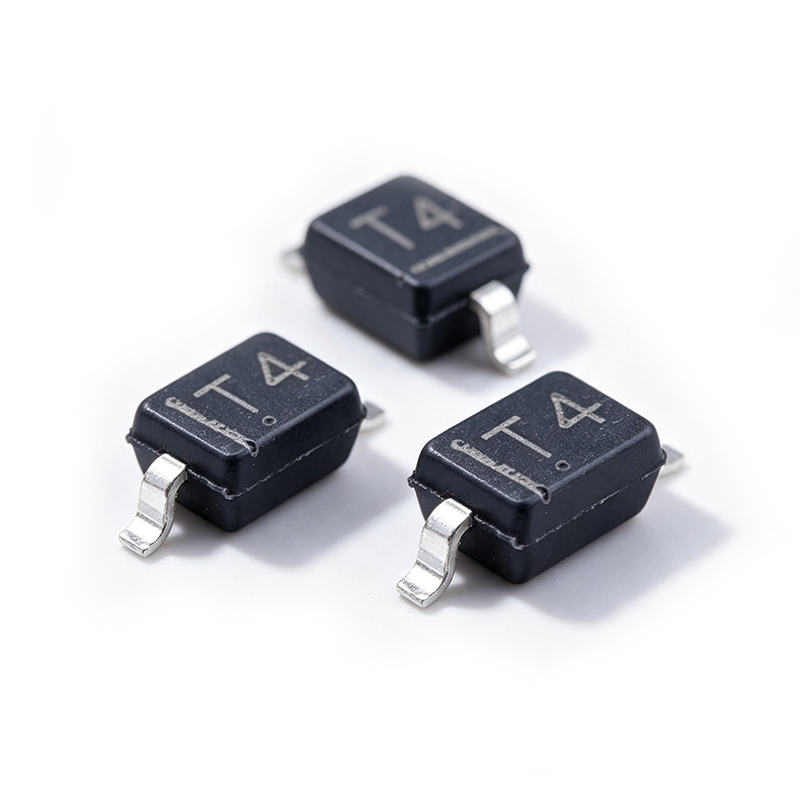

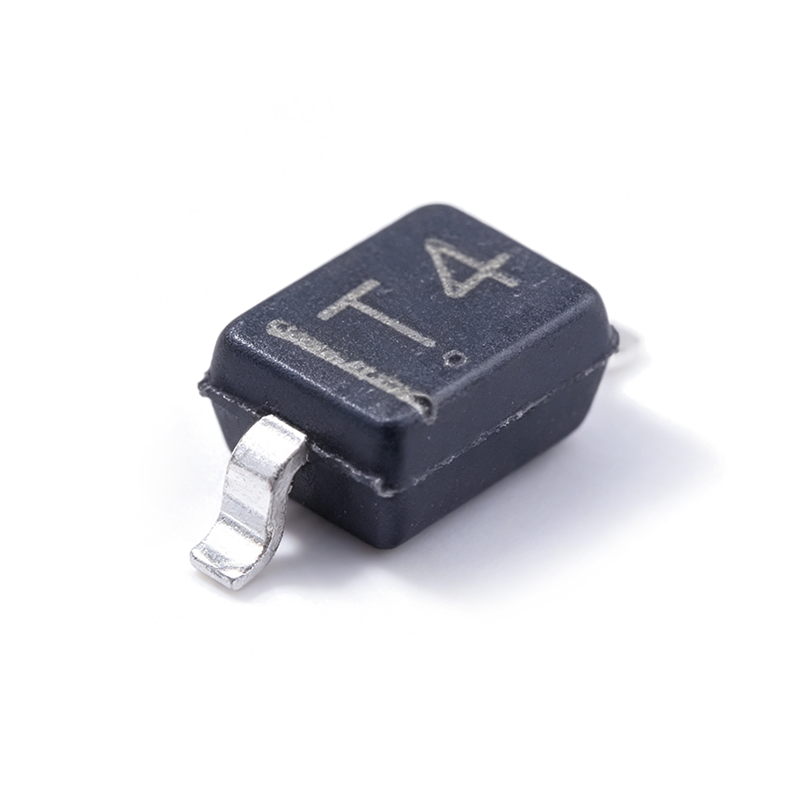

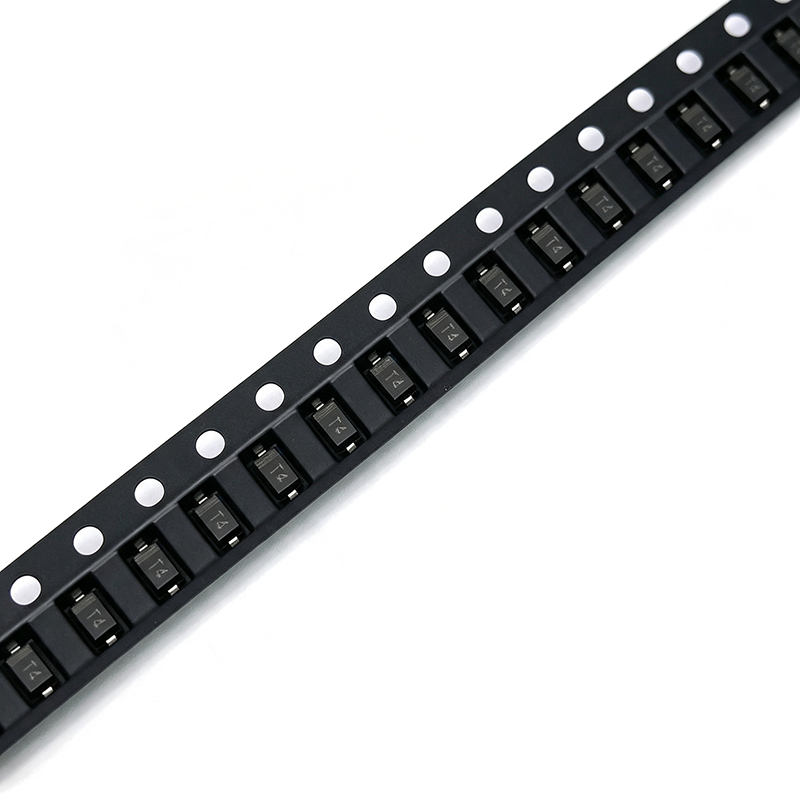

The 1N4148W original SMD fast switching diode serves as a foundational component for high-speed signal processing circuits. Encased in a precision-molded, matte black epoxy body with clear laser-etched markings, this device integrates exceptional switching performance with robust environmental adaptability. It strictly complies with RoHS, REACH, and Halogen-free environmental directives, ensuring seamless entry into global green electronics markets. By delivering stable electrical parameters, it has become a preferred small signal diode for demanding electronic projects. The core operational advantages are detailed below:
With a reverse recovery time strictly controlled to less than 4 ns, this diode supports the rapid on-off conversion of high-frequency signals without inducing waveform distortion. During rapid logic toggling, it maintains crisp signal edges, preventing data corruption in sensitive communication lines. As a highly dependable SMD switching diode, it perfectly satisfies the rigorous demands of ultra-high-speed switching applications, including signal clamping, precise signal isolation, and pulse waveform shaping on densely populated PCB boards.
Engineered for resilience, the device features a 400 mW power dissipation capacity and a 100 V DC reverse voltage rating, offering a significantly larger safety margin compared to standard 75V alternatives. The standard SOD-123 surface mount structure exhibits excellent thermal resistance, allowing for highly efficient heat dissipation even when placed in tightly packed circuit layouts. This robust thermal management ensures the diode can effectively resist transient voltage surges and drastically reduce breakdown risks during prolonged operation.
The reverse leakage current is meticulously restricted to just 1 μA under a 75V reverse bias condition. This exceptionally low leakage loss is critical for preventing signal backflow and eliminating crosstalk between adjacent circuit branches. By minimizing parasitic power drain, this fast switching diode extends the operational life of battery-powered devices. Furthermore, it improves the precision of weak signal detection and enhances the overall functional stability of complex analog and digital control systems.
Operating flawlessly across an expansive junction temperature range of -55℃ to +150℃, this device demonstrates extreme long-term reliability. Strict factory sorting guarantees consistent electrical parameters across every production batch. Beyond standard consumer electronics, its robust construction meets the elevated standards required for automotive electronic systems and complex industrial control environments. It maintains dependable performance through continuous thermal cycling, significantly lowering field failure rates for mass OEM production.
Adopting the universally recognized SOD-123 surface mount form factor, this SMD switching diode conserves valuable PCB real estate for miniaturized equipment designs. It is fully compatible with automated reflow soldering profiles, accelerating assembly efficiency. Crucially, the 1N4148W serves as a direct drop-in replacement for industry-standard models such as the LL4148 and MMSD4148. This cross-compatibility empowers procurement teams to lower supply chain costs and effectively mitigate component shortage risks.
Technical Parameters ▼
Parameter Item Specification Value
Product Category | Switching Diode |
|---|---|
Diode Configuration | Single Independent Diode |
Power Dissipation (Pd) | 400 mW |
Average Rectified Current (Io) | 150 mA |
DC Reverse Voltage (Vr) | 100 V |
Forward Voltage (Vf) | 1.25 V @ 150 mA |
Non-repetitive Peak Surge Current (Ifsm) | 2 A |
Reverse Current (Ir) | 1 μA @ 75 V |
Reverse Recovery Time (Trr) | 4 ns |
Operating Junction Temperature Range | -55 ℃ ~ +150 ℃ |
Product Uses ▼
Built as a highly responsive SMD fast switching diode, the 1N4148W is the component of choice for small signal and ultra-high-speed switching tasks across consumer, communication, and industrial electronics. Its predictable behavior under thermal stress makes it invaluable for designers. The primary applicable scenarios include:
Strategically installed at the signal input ports of microcontrollers, environmental sensors, and communication transceivers. The diode acts instantly to suppress instantaneous voltage spikes, shielding highly sensitive electronic components from electrical overstress. This small signal switching diode effectively prevents catastrophic chip burnout caused by abnormal voltage fluctuations or electrostatic discharge events in low-power control boards.
Frequently utilized for unidirectional signal isolation between multi-channel circuit branches. Thanks to its exceptionally low reverse leakage current, it successfully blocks reverse signal backflow and mitigates electromagnetic interference between adjacent traces. This isolation capability greatly improves signal integrity, ensuring clean data transmission for precision analog measurement tools and complex digital circuit systems.
Highly suitable for ultra-high-speed switching applications, including matrix keyboard scanning, pulse shaping networks, and discrete logic gating. Benefiting from the 4 ns ultra-fast reverse recovery time, the diode transmits high-frequency clock signals without causing waveform distortion or propagation delays. This rapid transition capability guarantees fast, deterministic circuit responses in time-critical computing modules.
Widely deployed within the internal circuitry of smart home appliances, infrared remote controllers, Bluetooth communication modules, and portable handheld instruments. In these applications, this surface mount switching diode executes essential small signal switching functions while consuming minimal board space. Its low power dissipation supports the stable, long-duration operation of compact, battery-reliant electronic products.
Applied extensively in miniature industrial proximity sensors, precision testing instrumentation, and low-voltage motor control units. The wide operating temperature range enables reliable signal switching even under aggressively fluctuating ambient conditions on the factory floor. By maintaining stable forward voltage and reverse recovery characteristics, it meets the strict operational stability requirements of heavy-duty industrial electronic equipment.
