Product Advantage ▼

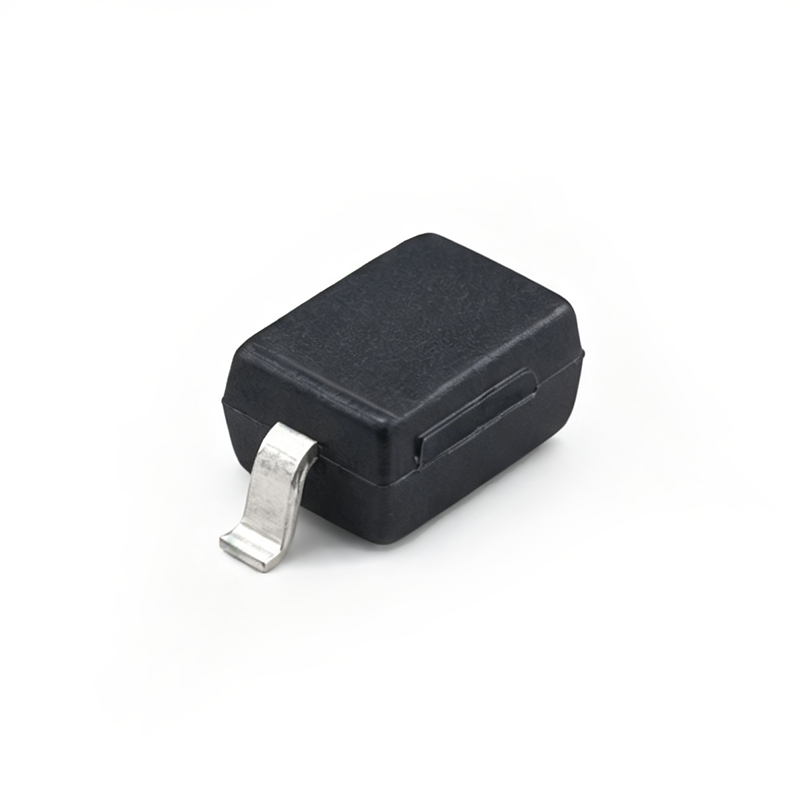

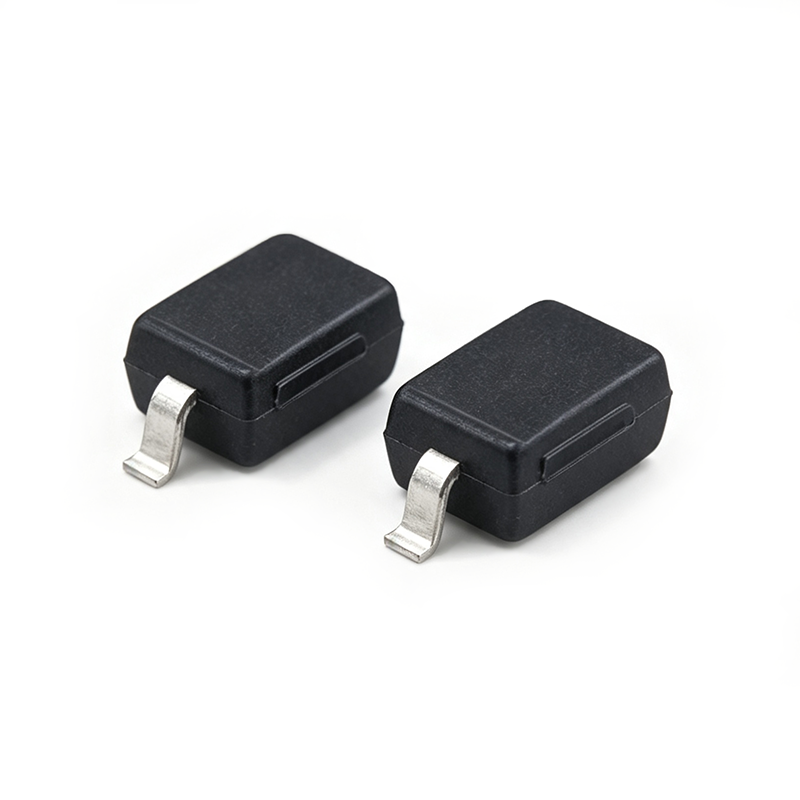

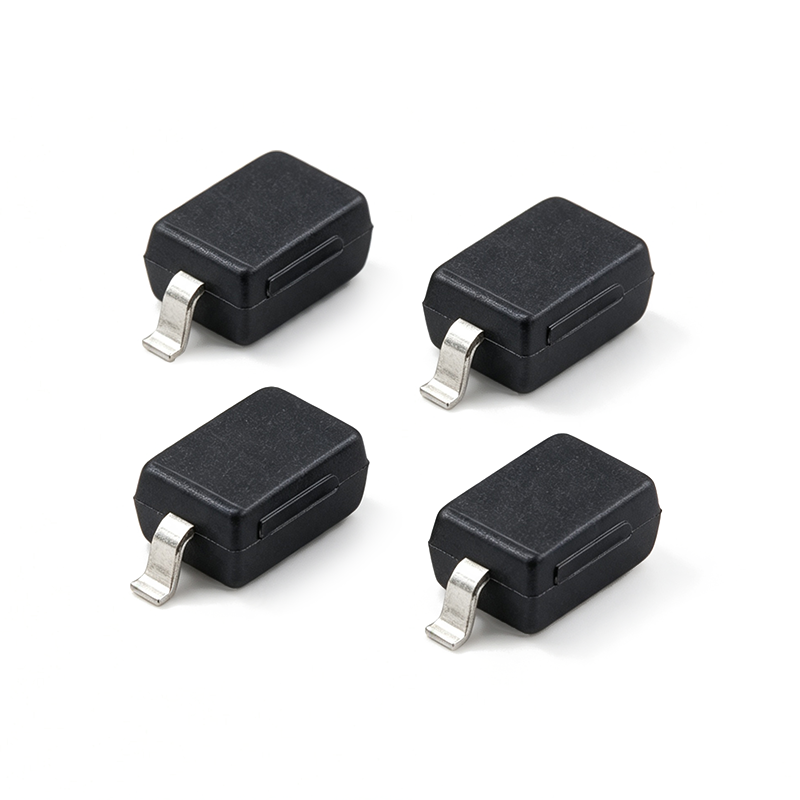

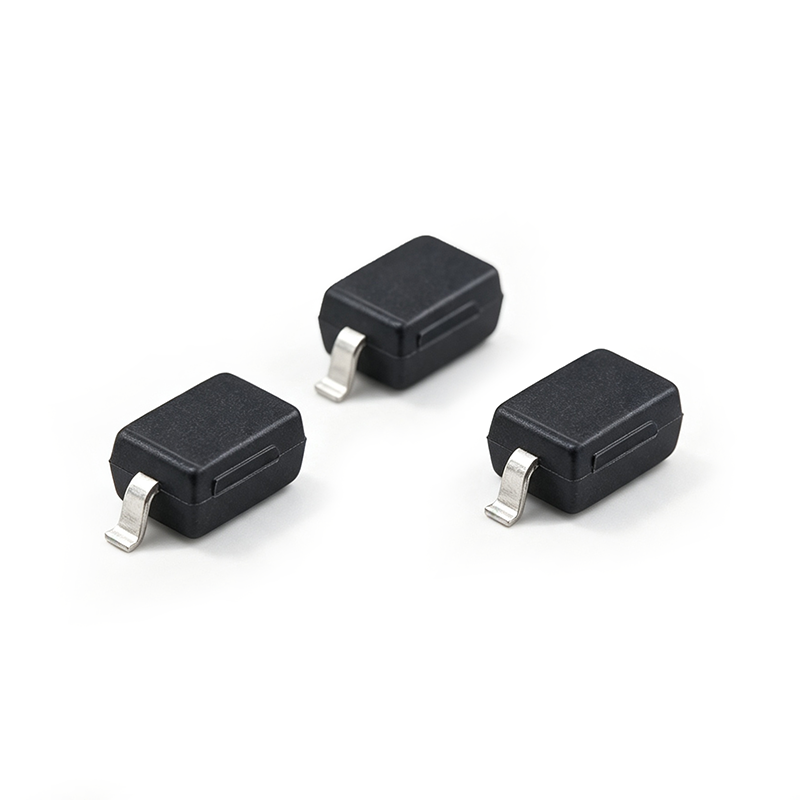

The onsemi N4148WS diode serves as a foundational discrete semiconductor, engineered to deliver precise signal clamping, reliable isolation, and rapid switching capabilities. Encased in a sleek, matte black epoxy body with meticulously formed terminals, this component addresses the stringent space and speed constraints faced by modern hardware designers. It is universally specified across consumer electronics, advanced communication modules, and heavy-duty industrial control boards. By integrating this diode into your circuit designs, procurement teams and engineers secure a dependable component that balances thermal efficiency with exceptional electrical performance. Designed to handle weak signal rectification with minimal energy loss, it acts as a critical safeguard against unpredictable voltage fluctuations, thereby extending the lifespan of sensitive downstream microcontrollers and logic ICs.
Its reverse recovery time is strictly rated at less than 4.0 ns, a crucial metric that supports high-frequency digital signal transmission without introducing detrimental waveform distortion. In practical applications, this ultra-fast response allows the diode to instantly suppress transient voltage spikes, realizing rapid unidirectional signal blocking for complex high-speed logic circuits. Furthermore, this rapid switching minimizes energy losses, contributing to optimized thermal performance and power management. When densely packed on a printed circuit board, the low power dissipation prevents localized overheating, maintaining a stable temperature profile even during continuous, intensive data processing operations. This instantaneous reaction time is essential for maintaining signal integrity across long traces, ensuring that communication protocols operate flawlessly without dropped packets or logic errors.
Adopting the highly compact SC-90/SOD-323F surface mount footprint, this diode dramatically reduces the physical area required on printed circuit boards, freeing up valuable real estate for other critical components. To support large-scale manufacturing workflows, these diodes are supplied in standardized Tape & Reel (TR) packaging. This format feeds smoothly into high-speed SMT pick-and-place machinery, eliminating manual handling and significantly accelerating production throughput. The precise dimensions and flat lead design ensure optimal solder paste adhesion during automated reflow processes, minimizing tombstoning effects and maximizing assembly line efficiency for miniaturized electronic devices. This structural consistency translates to fewer production bottlenecks and a highly predictable output rate, which is vital for meeting tight delivery schedules in competitive markets.
Classified strictly under Moisture Sensitivity Level (MSL) 1, this semiconductor device offers exceptional convenience for warehouse storage and inventory management. Unlike highly sensitive components that demand vacuum-sealed dry bags and strict humidity-controlled environments, these diodes can be stored on open shelves indefinitely without absorbing atmospheric moisture. This inherent resilience completely eliminates the need for time-consuming pre-baking procedures prior to SMT assembly. By bypassing these extra preparatory steps, production managers can streamline their operational workflows, reduce energy consumption from baking ovens, and initiate manufacturing runs immediately upon receiving the materials. The durable packaging material maintains its structural integrity, preventing micro-cracking or delamination during the rapid temperature spikes of the reflow soldering phase.
The component terminals feature a premium matte tin plating that delivers superior solderability while providing dependable anti-oxidation protection during extended periods of stock storage. Visually, the uniform matte finish ensures consistent wetting during soldering, resulting in strong, reliable mechanical and electrical joints. Beyond its physical construction, the diode undergoes rigorous industrial-grade temperature cycling and high-to-low temperature aging tests. This exhaustive quality control regimen guarantees reliable performance in environments subject to severe electromagnetic interference and thermal stress, ultimately delivering an exceptionally low out-of-box failure rate that protects your brand's reputation for reliability. The green mold compound utilized in the body construction consists of low-hazard raw materials, perfectly aligning with modern environmental production standards for forward-thinking electronic manufacturing facilities.
Engineered with a 100% lead-free construction, this component fully complies with stringent RoHS environmental directives, ensuring the complete absence of restricted heavy metal substances like lead, mercury, or cadmium. Elevating its compliance profile further, the materials meet comprehensive REACH regulations and adhere to Halogen-Free standards. This multi-layered environmental certification guarantees that end-products incorporating this diode can be exported directly to highly regulated markets across Europe, North America, and Asia without facing customs delays or requiring additional material declarations. It simplifies the compliance documentation process for global supply chain managers. Choosing this universally accepted component removes regulatory friction, allowing manufacturers to focus on innovation rather than navigating complex international trade barriers and environmental audits.
For procurement teams looking to optimize their Bill of Materials (BOM) without triggering extensive redesigns, this N4148WS diode serves as a perfect pin-to-pin compatible alternative to mainstream 1N4148 series models. It offers identical, if not superior, electrical characteristics, allowing hardware teams to effortlessly substitute legacy components. This drop-in replacement capability significantly lowers integration risks and accelerates the transition process during component shortages. By standardizing on this versatile diode, purchasing departments can consolidate their vendor lists, leverage better volume pricing, and maintain continuous production even when original legacy parts face unexpected supply chain disruptions. The exact mechanical dimensions ensure that existing PCB stencils and placement coordinates require absolutely no modification, preserving previous engineering investments.
To accelerate the hardware development lifecycle, a complete suite of engineering resources is readily available for this component. Designers have direct access to meticulously verified PCB footprint libraries, highly detailed 3D CAD models, and accurate SPICE simulation data. These digital assets empower R&D engineers to perform comprehensive virtual testing, evaluating signal integrity and thermal behavior long before committing to physical prototypes. By utilizing these precise simulation tools, development teams can identify potential circuit bottlenecks early in the design phase, drastically reducing the number of board revisions and shortening the overall time-to-market for new product introductions. This comprehensive technical support framework ensures that integrating the diode into complex schematics is a frictionless experience, fostering innovation and reducing engineering overhead.
Technical Parameters ▼
Product Category | Discrete Semiconductor, Rectifier Diode, Single Diode |
|---|---|
Manufacturer | Onsemi |
Packaging Options | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
Part Status | Active |
Technology | Standard |
DC Reverse Voltage (Vr, Max) | 75 V |
Average Rectified Current (Io) | 150 mA |
Forward Voltage (Vf, Max) @ If | 1 V @ 10 mA |
Speed Rating | Small Signal ≤200mA (Io), High Speed |
Reverse Recovery Time (trr) | 4 ns |
Reverse Leakage Current @ Vr | 5 μA @ 75 V |
Capacitance @ Vr & Frequency | 4 pF @ 0 V, 1 MHz |
Mounting Type | Surface Mount (SMD) |
Package / Case | SC-90, SOD-323F |
Supplier Device Package | SOD-323F |
Operating Junction Temperature (Max) | 150 °C |
Base Part Number | 1N4148 |
Product Uses ▼
Optimized for precise signal clamping and reliable isolation, this N4148WS SMD diode serves as a universal, foundational component across a vast spectrum of industries. From consumer electronics and telecommunications to heavy-duty industrial control fields, its versatile nature solves numerous circuit protection challenges. Engineers rely on its predictable behavior to safeguard intricate layouts, ensuring that every pulse and logic switch executes flawlessly under varying electrical loads. Whether deployed in a compact wearable device or a massive factory automation controller, this diode provides the necessary electrical boundaries that keep distinct circuit stages operating independently and safely.
Installed directly on the vulnerable signal input pins of microcontrollers, environmental sensors, and sensitive communication chips, this diode acts as a critical first line of defense. It actively monitors the line, instantly clamping abnormal peak voltages and safely diverting transient energy away from the core logic. This rapid intervention prevents delicate semiconductor components from experiencing catastrophic overvoltage burnout, thereby extending the operational lifespan of the entire circuit board. The precise forward voltage characteristics ensure that normal signal transmissions remain entirely unaffected during standard operation. By implementing this straightforward yet highly effective protection strategy, design teams can drastically reduce warranty claims and field return rates caused by unpredictable electrical surges.
In densely populated printed circuit boards featuring multiple intersecting data pathways, this diode is expertly utilized to separate multi-channel signal branches. It functions as a strict one-way valve, effectively blocking unwanted reverse signal backflow that could otherwise corrupt upstream data processors. By enforcing this strict unidirectional flow, the diode significantly reduces electromagnetic crosstalk between adjacent, tightly spaced signal lines. This isolation is absolutely vital for maintaining pristine signal integrity in complex mixed-signal environments, ensuring that analog sensor readings and digital commands do not interfere with one another, thereby maximizing overall system stability. The resulting clean signal environment allows microprocessors to interpret data with absolute certainty, eliminating erratic behavior in critical control systems.
Applied extensively within rapid-switching logic boards, matrix keyboard scanning circuits, and intricate pulse signal processing modules, this component excels at fast signal switching and unidirectional transmission control. The ultra-low capacitance and nanosecond-level recovery time allow it to keep pace with modern, high-frequency clock speeds without artificially rounding off crisp square waves. This ensures that digital high and low states are registered with absolute precision. Hardware engineers frequently specify this diode to manage timing circuits and logic gates, where even a microsecond of delay or signal reflection could result in critical computational errors. Its consistent performance across varying temperature ranges guarantees that logic operations remain synchronized, regardless of the external operating environment.
Beyond specialized industrial applications, this diode is widely integrated inside everyday Bluetooth communication modules, compact power adapters, handheld remote controllers, and precision small instrumentation. In these ubiquitous devices, it serves as a highly reliable, general-purpose component for small signal rectification and baseline circuit protection. Its miniature footprint makes it particularly valuable in modern consumer electronics, where internal space is at an absolute premium. By handling minor voltage irregularities and rectifying low-power AC signals into stable DC, it ensures that battery-powered devices operate efficiently, maximizing battery life and providing a flawless user experience. The tactile click of a remote or the instant pairing of a wireless headset relies on the silent, continuous operation of these discrete components working flawlessly in the background.
