Semiconductor devices are the heart of modern electronics. Among them, three stand out as the most fundamental: the diode, the bipolar junction transistor (BJT), and the MOSFET. Choosing the right one for your application requires understanding their characteristics, trade-offs, and typical use cases.
A diode is a PN junction. When the anode is more positive than the cathode, current flows. When reversed, it blocks.
Key parameters:
Forward voltage (Vf): The voltage drop when conducting. Silicon diodes: ~0.7V. Schottky diodes: ~0.3V.
Reverse breakdown voltage (Vr): The maximum reverse voltage before conduction.
Reverse recovery time (trr): How quickly the diode switches from conducting to blocking.
Forward current (If): Maximum continuous current.
Type | Vf | Recovery Time | Typical Application |
|---|---|---|---|
Standard silicon | 0.7V | Slow (µs) | Rectification at low frequency |
Schottky | 0.3V | Very fast (ns) | Switching power supplies, reverse polarity protection |
Fast recovery | 0.7V | Fast (ns) | High-frequency rectification |
Zener | 0.7V (forward) | N/A | Voltage regulation, clamping |
LED | 1.8V–3.3V | N/A | Light emission |
Photodiode | N/A | Fast | Light detection |
What is the maximum forward current?
What is the maximum reverse voltage?
How fast does it need to switch?
Is low forward voltage important (for efficiency)?
Does it need to handle high temperatures?

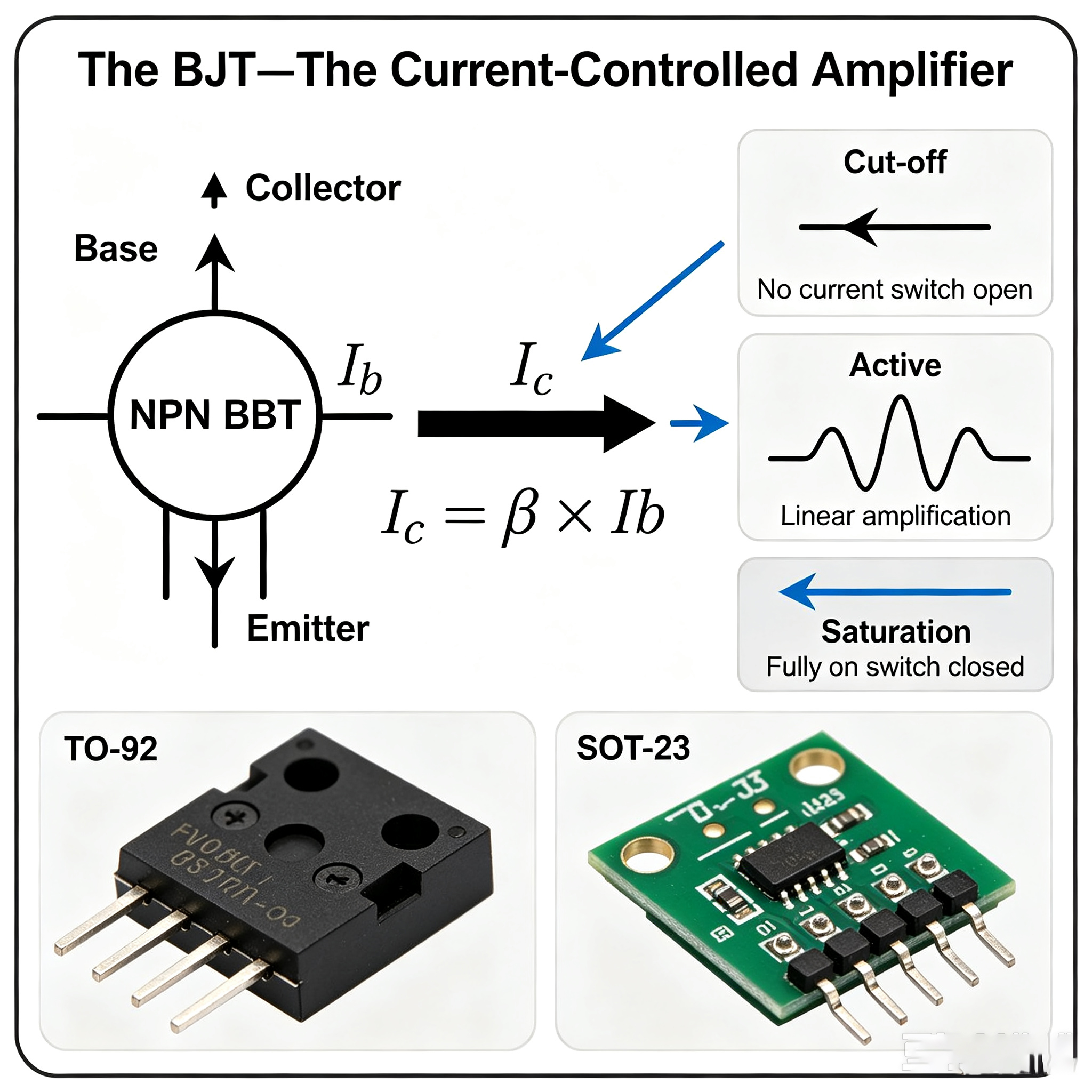

A BJT has three terminals: base, collector, and emitter. A small current flowing into the base controls a much larger current flowing from collector to emitter.
Key relationship: Ic = β × Ib, where β (beta) is the current gain, typically 20 to 500.
Operating regions:
Cut-off: No base current, no collector current. The transistor is off.
Active: Base current is sufficient, collector current is proportional. Used for amplification.
Saturation: Base current is more than enough. The transistor is fully on, acting like a closed switch.
Parameter | Description | Typical Values |
|---|---|---|
Vceo | Max collector-emitter voltage | 20V–1000V |
Ic | Max collector current | 100mA–10A |
β (hFE) | Current gain | 20–500 |
Vbe | Base-emitter voltage | ~0.7V |
Pd | Power dissipation | 100mW–100W |
ft | Transition frequency | 100MHz–10GHz |
Amplification: Audio amplifiers, RF amplifiers
Switching: Driving relays, LEDs, small motors
Current mirrors: Biasing analog circuits
Temperature sensing: Vbe changes predictably with temperature
You need high gain.
You need low noise (BJTs are quieter than MOSFETs at low frequencies).
You are working with low voltages and currents.
You need a simple, cheap switch.

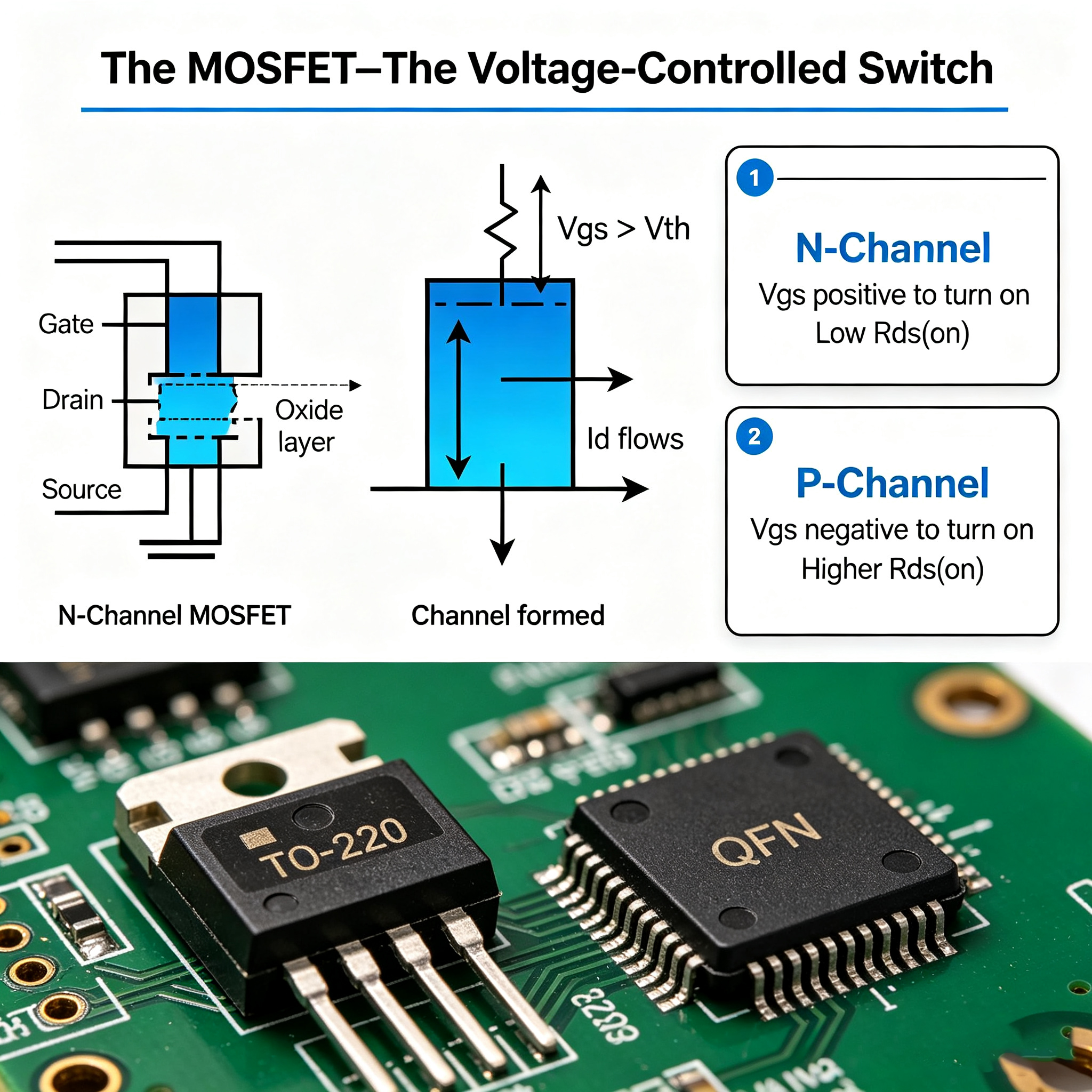

A MOSFET has three terminals: gate, drain, and source. A voltage on the gate creates a conductive channel between drain and source. No steady-state gate current flows (except during switching).
Key parameters:
Vgs(th): Gate threshold voltage. The minimum Vgs to start conducting.
Rds(on): On-resistance. The resistance between drain and source when fully on.
Vds: Maximum drain-source voltage.
Id: Maximum drain current.
Qg: Total gate charge. Determines switching speed and gate drive requirements.
Feature | N-Channel | P-Channel |
|---|---|---|
Turn-on condition | Vgs > Vgs(th) | Vgs < Vgs(th) (negative) |
Rds(on) | Lower | Higher |
Cost | Lower | Higher |
Typical use | Low-side switching | High-side switching |
Power switching: DC-DC converters, motor drives
Low-side and high-side switches: Load control
Analog switches: Signal routing
Power management: Battery protection, load switches
You need high efficiency (low Rds(on)).
You are switching high currents.
You need fast switching speeds.
You are designing a power converter.

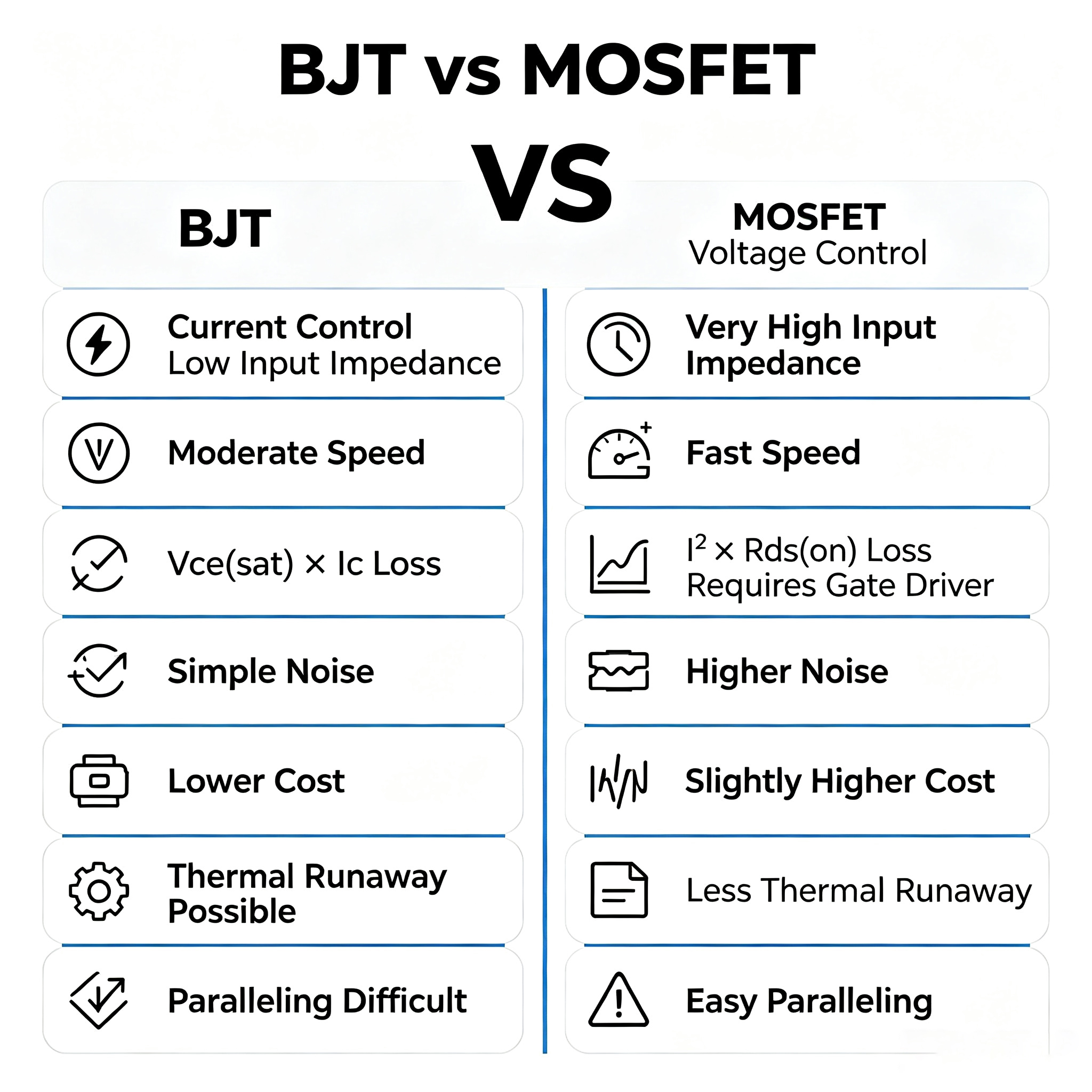

Criterion | BJT | MOSFET |
|---|---|---|
Control | Current | Voltage |
Input impedance | Low | Very high |
Switching speed | Moderate | Fast |
Conduction loss | Vce(sat) × Ic | I² × Rds(on) |
Drive complexity | Simple | Requires gate driver |
Noise | Lower | Higher |
Cost | Lower | Slightly higher |
Thermal runaway | Possible | Less likely |
Paralleling | Difficult | Easy |

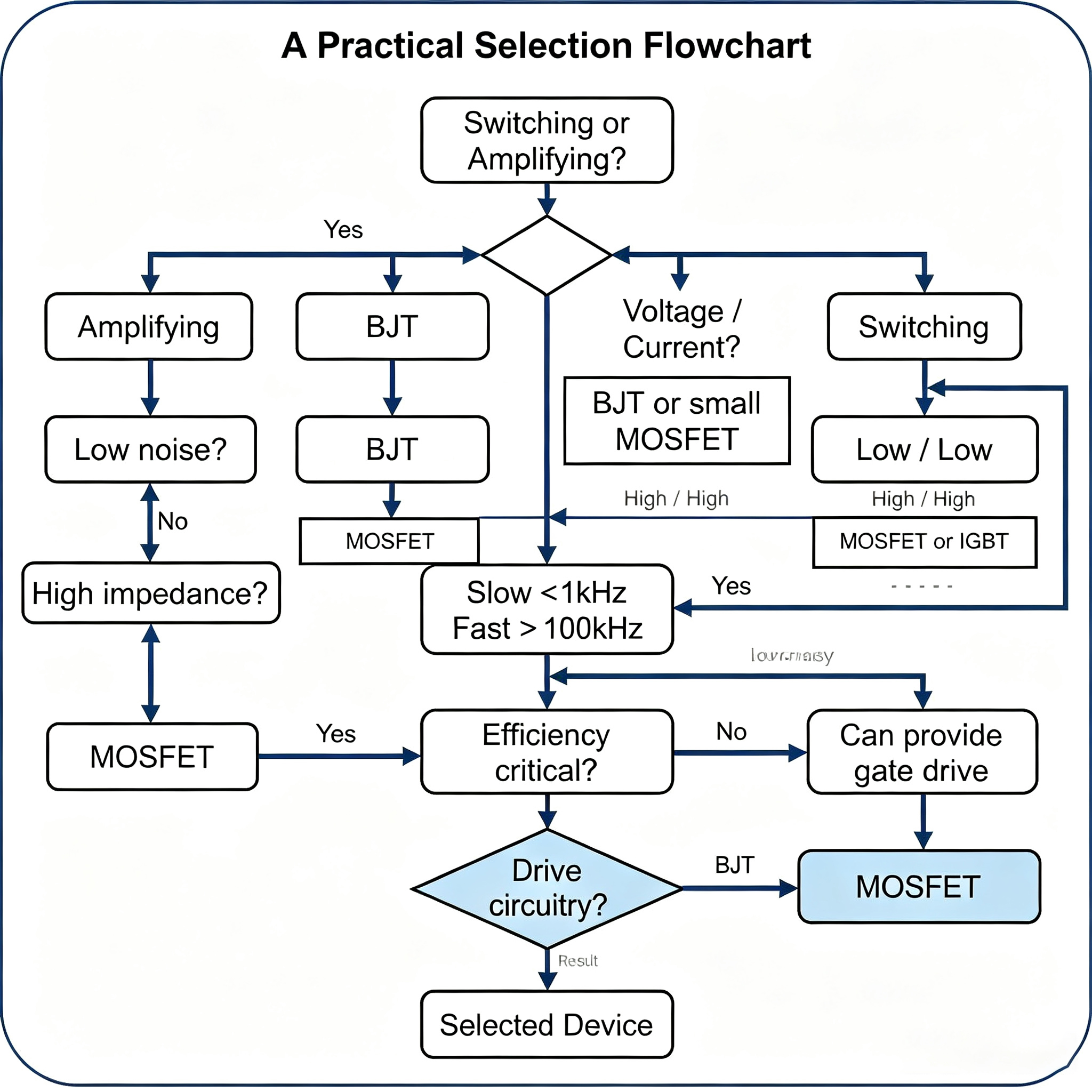

Is the application switching or amplifying?
Amplifying → Consider BJT for low noise, MOSFET for high impedance.
Switching → Continue.
What is the voltage and current?
Low voltage, low current → BJT or small MOSFET.
High voltage, high current → MOSFET or IGBT.
How fast does it need to switch?
Slow (< 1kHz) → BJT is fine.
Fast (> 100kHz) → MOSFET.
Is efficiency critical?
Yes → MOSFET (low Rds(on)).
No → BJT may be cheaper.
What is the drive circuitry?
Simple, low-cost → BJT.
Can provide gate drive → MOSFET.
Diodes are one-way valves. Choose based on Vf, Vr, and recovery time.
BJTs are current-controlled. They offer high gain and low noise.
MOSFETs are voltage-controlled. They offer high efficiency and fast switching.
The choice between BJT and MOSFET depends on voltage, current, speed, efficiency, and drive complexity.
Always consult the datasheet and consider the worst-case operating conditions.
