An integrated circuit (IC)—often referred to as a microchip or simply a chip—acts as the foundational building block of modern hardware architecture. It replaces bulky discrete component networks with monolithic silicon. While the basic function of an IC is to process, store, or manage electrical signals, the engineering challenge lies in selecting the exact IC architecture that balances performance, power consumption, thermal limits, and board space.
Hardware engineers and systems architects must evaluate these components strictly on their technical merits. You need to match the silicon to the specific load, frequency, and environmental demands of your board. This guide provides a decision-stage evaluation framework. We transition from basic IC mechanics and semiconductor materials to application-specific selection criteria and implementation risk management. You will learn how to specify the right components, manage thermal dissipation, and mitigate layout risks before finalizing your bill of materials.
Functional Consolidation: ICs condense millions of miniature electronic assemblies—specifically transistors, resistors, and capacitors—onto a single semiconductor substrate to execute logic, amplify signals, or regulate power compactly and efficiently.
Architectural Categorization: System design dictates the choice between digital (logic/processing), analog (continuous signal), and mixed-signal (ADC/DAC) ICs.
Application-Specific Matching: Component selection must align with precise use cases, such as utilizing a power management IC for embedded systems or a Hall-effect sensor IC for IoT modules.
Risk Mitigation & Efficiency: Successful IC integration requires rigorous evaluation of thermal dissipation, electromagnetic compatibility (EMC), cost-at-scale, and supply chain lifecycle status before finalizing the Bill of Materials (BOM).
The transition from discrete components to monolithic integrated circuits changed electronic engineering permanently. Before the IC, engineers built circuits by manually soldering individual transistors, resistors, and capacitors onto printed circuit boards. This approach consumed massive amounts of physical space and introduced severe reliability issues due to the high number of mechanical solder joints. The integrated circuit solved this by forming miniature electronic assemblies on a single piece of semiconductor material, almost exclusively silicon.
Manufacturers utilize photolithography to achieve this miniaturization. The process involves several highly controlled steps to build the circuit layer by layer:
Wafer Preparation: A pure silicon ingot is sliced into thin wafers and polished to a mirror finish.
Oxidation and Coating: A layer of silicon dioxide is grown on the wafer, followed by a light-sensitive photoresist coating.
UV Exposure: Ultraviolet light projects through a custom mask, exposing specific geometric patterns onto the photoresist.
Etching: Chemical baths remove the exposed photoresist and the underlying oxide, revealing the bare silicon in precise patterns.
Doping: Ion implantation introduces impurities like phosphorus or boron into the exposed silicon, creating N-type and P-type semiconductor regions.
Metallization: Microscopic aluminum or copper interconnects are deposited to route electrical signals between the newly formed transistors.
These steps create microscopic active components, primarily Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs), alongside passive components like resistors and capacitors directly within the silicon substrate. The result is a highly efficient, closed-loop circuit within a package measuring only a few square millimeters.
An IC receives input signals in the form of voltage or current, applies a specific set of rules to those signals, and delivers a deterministic output. The nature of this manipulation depends entirely on the internal architecture of the die. In digital environments, the IC manipulates discrete voltage levels representing binary data. Millions of interconnected transistors act as microscopic switches, forming logic gates.
These gates execute Boolean logic, allowing microprocessors to perform arithmetic calculations, execute software instructions, and route digital traffic across a motherboard. For example, in standard Transistor-Transistor Logic (TTL), an input voltage between 0V and 0.8V registers as a logical LOW (0), while a voltage between 2.0V and 5.0V registers as a logical HIGH (1). The IC processes these thresholds at speeds exceeding billions of cycles per second.
In analog environments, the IC deals with continuous wave signals that vary smoothly over time. Instead of switching on and off, the transistors operate in their active regions to amplify weak input signals, filter out high-frequency noise, or modulate frequencies for radio transmission. An analog IC might receive a faint 10-millivolt signal from a thermocouple and amplify it to a 3-volt output, maintaining the exact proportional waveform of the original input without introducing distortion.
Specific ICs act as the gatekeepers for electrical power within a hardware system. Raw power from a battery or a wall adapter is rarely suitable for sensitive electronic components. Microcontrollers, memory modules, and sensors require highly stable, specific voltage levels to function correctly. Power regulation ICs step voltages up or down to match these requirements.
Linear regulators, such as Low Dropout (LDO) regulators, dissipate excess voltage as heat to provide a clean, noise-free output. Switching regulators, like buck or boost converters, rapidly switch current on and off through an inductor to step voltage down or up with much higher energy efficiency. These components monitor the output voltage continuously and adjust their internal switching duty cycle or linear resistance to maintain a constant output, even as the input voltage fluctuates or the load current changes. They also shield sensitive downstream components from destructive current spikes, thermal overloads, and reverse polarity events.
Digital ICs form the processing core of modern electronics, operating strictly on binary data. This category encompasses microprocessors, microcontrollers (MCUs), memory chips (RAM, ROM, Flash), and field-programmable gate arrays (FPGAs). A microprocessor acts as the central processing unit, executing complex software instructions. A microcontroller combines a processor, memory, and peripheral interfaces onto a single chip for dedicated control tasks.
When evaluating digital ICs, engineers focus on specific performance metrics. Clock speed determines how many instructions the chip can execute per second. The instruction set architecture (ISA), such as ARM or RISC-V, dictates the software compatibility and processing efficiency. I/O pin availability dictates how many physical connections the chip has to interface with sensors, displays, and communication buses on the board.
Analog ICs process real-world, continuous signals such as sound, light, temperature, and radio waves. Common examples include operational amplifiers (op-amps), RF transceivers, audio amplifiers, and linear voltage regulators. An op-amp takes a tiny differential voltage between its two inputs and multiplies it by a massive gain factor, making it suitable for further processing by other board components.
Evaluation metrics for analog ICs differ vastly from their digital counterparts. Signal-to-noise ratio (SNR) measures the chip's ability to amplify the desired signal without amplifying background electrical noise. Bandwidth dictates the range of frequencies the IC can process effectively. Linearity ensures that the output signal remains an undistorted proportional representation of the input across the entire operating range.
Hardware systems must interact with the analog physical world while utilizing the processing power of digital brains. Mixed-signal ICs bridge this gap by housing both analog and digital circuitry on the same silicon die. The most common components in this category are Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs).
An ADC samples a continuous analog voltage at discrete time intervals and converts it into a binary number that a microcontroller can read. A DAC takes digital binary data and reconstructs it into a smooth analog waveform, such as an audio signal driving a speaker. The effectiveness of mixed-signal ICs depends on their resolution (the number of bits used to represent the signal) and their sampling rate (how many times per second they measure the analog input).
Architecture Type | Core Function | Common Components | Primary Evaluation Metrics |
|---|---|---|---|
Digital | Processes discrete binary data (0s and 1s) for logic and computation. | Microprocessors, MCUs, RAM, FPGAs | Clock speed, ISA, I/O pin count, active power draw. |
Analog | Amplifies, filters, or modulates continuous wave signals. | Op-amps, RF transceivers, linear regulators | Signal-to-noise ratio (SNR), bandwidth, linearity. |
Mixed-Signal | Bridges the gap between physical analog inputs and digital processing. | ADCs, DACs, sensor interfaces | Bit resolution, sampling rate, conversion latency. |
Space-constrained embedded environments, such as wearables, medical implants, and portable industrial monitors, demand highly controlled power delivery. A Power management IC for embedded systems (PMIC) serves as the central distribution hub for electrical power. Instead of using multiple discrete voltage regulators scattered across the PCB, a single PMIC handles power sequencing, battery charging protocols, and DC-DC conversion across multiple voltage rails.
Modern microprocessors require strict power sequencing. The core voltage must stabilize before the I/O voltage is applied to prevent latch-up conditions. The PMIC manages these microsecond-level timing requirements. When evaluating a PMIC, engineers scrutinize the quiescent current (Iq) ratings, which dictate how much power the chip consumes when the system is idle. Low Iq extends battery life in portable devices. Thermal efficiency and the ability to support multi-rail voltage outputs from a single compact package drive the selection process.
The Internet of Things relies on gathering physical data without mechanical wear and tear. A Hall-effect sensor IC for IoT modules provides a solid-state solution for detecting magnetic fields to determine proximity, rotational speed, or current flow without physical contact. By leveraging the Lorentz force, these ICs measure the voltage difference generated across an electrical conductor when a magnetic field is applied perpendicular to the current flow.
In smart metering or industrial motor monitoring, these sensors track RPMs or detect the opening of doors and valves. The evaluation of these components focuses on sensitivity tolerances—specifically, how weak of a magnetic field the IC can reliably detect, measured in Gauss or millitesla. Because IoT modules often run on coin-cell batteries for years, the power draw in sleep modes is heavily scrutinized. Integration with low-power wide-area network (LPWAN) architectures requires the sensor to wake up, take a reading, transmit data to the MCU, and return to sleep in milliseconds.

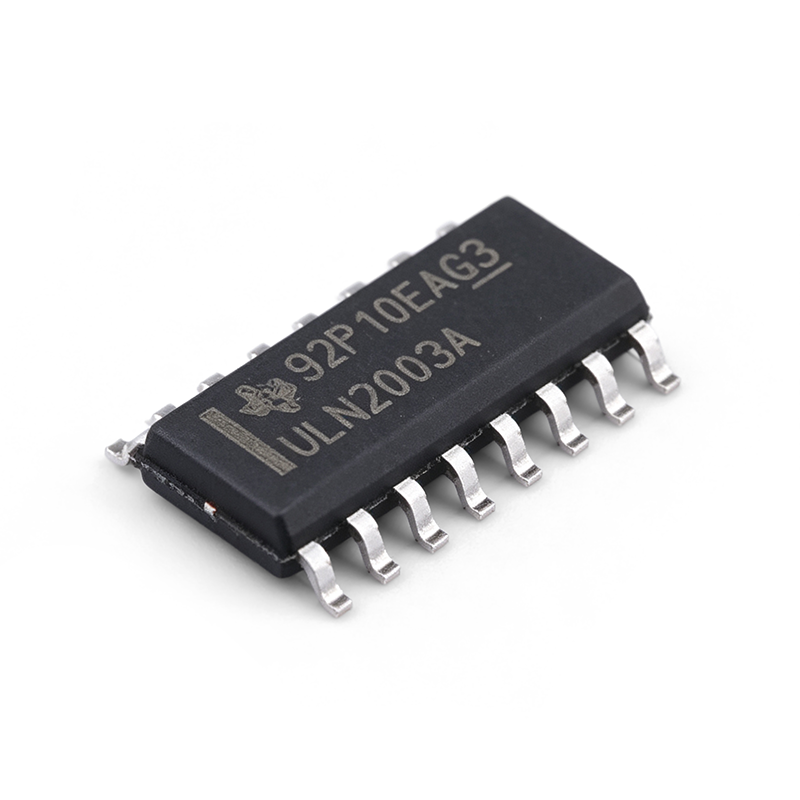

Microcontrollers excel at processing logic, but their output pins typically supply only 10 to 20 milliamperes at 3.3V or 5V. This is insufficient for driving high-current or high-voltage loads like stepper motors, heavy-duty relays, or high-brightness LED arrays. A Darlington driver IC for control circuits bridges this power gap. By internally cascading two bipolar junction transistors, a Darlington array multiplies the current gain exponentially. A tiny current from the MCU base triggers the first transistor, which in turn drives the base of the second, allowing the IC to switch loads of 500mA or more per channel.
When selecting a Darlington driver, engineers verify the presence of internal clamp diodes (flyback diodes). Inductive loads like motors and relays generate massive voltage spikes when turned off due to collapsing magnetic fields. Without clamp diodes, this back-EMF destroys the driver IC and the upstream microcontroller. Maximum collector current ratings and saturation voltage—which dictates how much heat the IC will generate under load—are primary evaluation metrics.
Hardware design requires constant compromise. Engineers balance processing power and signal fidelity against thermal output and battery drain. Selecting an ultra-fast microcontroller with a high clock speed yields rapid data processing, but it draws significantly more active current, requiring a larger battery or aggressive heat sinking.
Hardware teams rely on a rigorous analysis of datasheet specifications to navigate this. You evaluate the active current consumption during peak processing, the standby current when the chip is idle but ready, and the sleep current when the chip is powered down waiting for an interrupt. For battery-operated devices, maximizing the time spent in deep sleep modes while utilizing ICs with rapid wake-up times extends operational life. You must calculate the total power budget of the board and ensure the selected ICs do not exceed the capacity of the power supply under maximum load conditions.
The physical form factor of an IC dictates the complexity of the printed circuit board (PCB) layout and the manufacturing process. Dual In-line Packages (DIP) are large, through-hole components excellent for breadboard prototyping but rarely used in modern mass production. Surface Mount Devices (SMD) like Small Outline Integrated Circuits (SOIC) or Quad Flat No-leads (QFN) reduce board footprint and improve high-frequency performance by minimizing lead inductance.
For complex processors, Ball Grid Arrays (BGA) place hundreds of solder balls directly underneath the chip. BGAs save space but complicate PCB routing, often requiring multi-layer boards with blind or buried vias, and demand automated X-ray inspection during assembly. Packaging directly impacts thermal management. Engineers calculate junction temperature limits using thermal resistance metrics (θJA) provided by manufacturers. If the calculated junction temperature exceeds the absolute maximum rating, the IC fails. This necessitates a package with an exposed thermal pad or the addition of external heat sinks.
Package Type | Mounting Style | Pin Density | Thermal Performance | Typical Use Case |
|---|---|---|---|---|
DIP (Dual In-line) | Through-Hole | Low | Moderate | Prototyping, legacy industrial boards. |
SOIC (Small Outline) | Surface Mount | Medium | Moderate | Standard logic, op-amps, driver ICs. |
QFN (Quad Flat No-leads) | Surface Mount | High | Excellent (with thermal pad) | PMICs, RF transceivers, sensors. |
BGA (Ball Grid Array) | Surface Mount | Very High | Good (requires complex routing) | Microprocessors, FPGAs, high-density memory. |
Technical specifications hold no value if the component cannot be procured at scale. Evaluating ICs requires a strict assessment of supply chain realities. Hardware teams analyze volume pricing tiers to ensure the BOM cost aligns with target margins. Lead times dictate production schedules; designing in a chip with a 52-week lead time paralyzes a product launch.
Engineers evaluate sole-source versus multi-source availability. Relying on a proprietary IC from a single manufacturer introduces supply chain risk. Choosing an industry-standard op-amp available from five different vendors guarantees continuity. Always check the lifecycle status on the manufacturer's datasheet. Designing a new board around an IC marked as "Not Recommended for New Design" (NRND) or "Obsolete" forces a costly and time-consuming board redesign within months of production.
As ICs operate at increasingly higher frequencies, signal integrity becomes a major implementation risk. High-speed digital ICs generate rapid current transients that radiate electromagnetic interference (EMI), causing the board to fail FCC or CE compliance testing. Closely routed traces suffer from crosstalk, where a signal on one trace induces an unwanted voltage on an adjacent trace, corrupting data.
Mitigation requires strict adherence to layout guidelines specified in the IC datasheet. Proper decoupling capacitor placement is mandatory. Placing a 0.1µF capacitor as close as physically possible to the IC's power pin supplies instantaneous current during fast switching events, suppressing voltage ripple. Designing solid, unbroken ground planes directly beneath high-speed signal traces provides a low-impedance return path, drastically reducing radiated emissions and crosstalk.
Power-dense ICs, particularly PMICs, motor drivers, and high-performance processors, generate significant heat. If this heat is not managed, the silicon substrate exceeds its maximum absolute junction temperature. This leads to thermal runaway, where increased temperature causes increased leakage current, which in turn generates more heat until the component suffers catastrophic physical damage.
To mitigate thermal risks, engineers implement thermal vias—small copper-plated holes in the PCB positioned directly under the IC's thermal pad. These vias conduct heat away from the component and distribute it into the internal copper ground planes of the board, acting as a massive integrated heat sink. For extreme cases, selecting ICs with built-in thermal shutdown protection ensures the chip powers itself down before permanent damage occurs.
A common trap in hardware engineering is assuming that theoretical circuit simulations perfectly match physical board performance. SPICE models verify logic and basic analog behavior, but they fail to account for parasitic inductance and capacitance introduced by the physical PCB traces.
To bridge the gap between simulation and reality, hardware teams utilize manufacturer evaluation boards (eval kits) prior to routing a custom PCB. These pre-built boards allow engineers to validate the IC's performance, measure actual power consumption, and test firmware drivers in real-world conditions. Once validated, the layout engineer replicates the proven trace routing and component placement from the evaluation board's reference design, reducing the risk of a failed first-pass prototype.
Take the following steps to finalize your hardware design and component selection:
Define strict system requirements, mapping out exact voltage rails, required clock speeds, and necessary I/O counts before looking at specific components.
Categorize the necessary IC types and match specific variants to your application, prioritizing specialized chips like PMICs or Darlington drivers to reduce discrete component counts.
Download technical datasheets for all shortlisted ICs and rigorously validate them against your thermal limits, spatial constraints, and supply chain lead times.
Order evaluation boards for your primary processors and power management chips to validate theoretical SPICE models against physical, real-world performance.
A: A semiconductor is the raw base material, typically silicon, that has electrical conductivity between a conductor and an insulator. An integrated circuit (IC) is the actual electronic circuit built onto that semiconductor material. "Microchip" or "chip" are colloquial, interchangeable terms used to describe a packaged integrated circuit.
A: Silicon is the primary material due to its abundance and stable crystalline structure. Manufacturers dope the silicon with elements like boron or phosphorus to alter its electrical properties. Other materials include copper or aluminum for microscopic interconnects, and silicon dioxide, which acts as an internal insulating layer.
A: Engineers calculate thermal limits using the maximum junction temperature (Tj) and the thermal resistance (θJA) provided in the datasheet. By multiplying the chip's power dissipation (in watts) by the thermal resistance, and adding the ambient room temperature, you determine if the internal silicon will exceed its safe operating limits.
A: A PMIC replaces multiple individual voltage regulators. It controls complex power delivery, steps voltages up or down for different board components, manages battery charging cycles, and executes strict power-on sequencing to ensure microprocessors boot safely in space-constrained embedded devices.
A: A Darlington driver IC cascades transistors to provide massive current gain, allowing low-power microcontrollers to drive heavy loads like motors. Using an IC instead of discrete transistors saves board space, reduces assembly time, and includes built-in flyback diodes to protect against destructive voltage spikes from inductive loads.
A: Selection depends on space, thermal needs, and manufacturing capabilities. Use SOIC for general surface-mount applications, QFN when space is tight and thermal pads are needed for heat dissipation, and BGA for high-pin-count processors. Avoid DIP unless you are prototyping on a manual breadboard.
