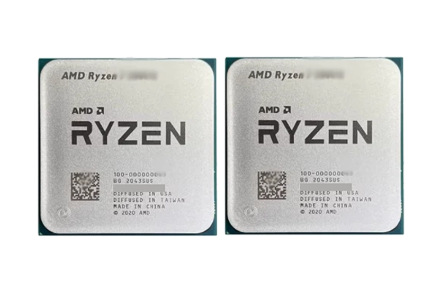

The AMD Ryzen 5 5600X is a desktop processor based on the Zen 3 microarchitecture, codename Vermeer, and belongs to the Ryzen 5000 Series. It is designed for mainstream desktop computing, including gaming systems, small-office workstations, and DIY upgrade builds. The processor uses the AM4 socket and is compatible with 500-series and selected 400-series motherboards after a BIOS update. It has no integrated graphics and requires a discrete GPU for display output.
Model | AMD Ryzen 5 5600X |
|---|---|
Architecture | Zen3 (Vermeer) |
Core / Thread | 6 Core / 12 Thread |
Base Frequency | 3.7 GHz |
Max Boost Frequency | Up to 4.6 GHz |
Cache | 3MB L2 + 32MB L3 Cache |
Socket | AM4 |
Process Tech | TSMC 7nm FinFET |
Memory Support | DDR4 |
PCIe | PCIe 4.0 |
TDP | 65 W |
Overclock | Unlocked for overclocking |
iGPU | No integrated graphics |
Compliance | RoHS Compliant |
The Ryzen 5 5600X features 6 cores and 12 threads, with a 3.7 GHz base frequency and up to 4.6 GHz maximum boost frequency. It includes 3MB of L2 cache, 512KB per core, and 32MB of shared L3 cache, totaling 35MB of cache. The Zen 3 architecture increases instructions per cycle compared to the prior Zen 2 generation, supporting responsive single-threaded application performance.
The processor has a 65W default TDP with an 88W PPT, allowing it to operate with mainstream tower air coolers. This thermal profile supports lower system power consumption and acoustic output in small-form-factor and office builds compared to higher-TDP desktop processors.
The Ryzen 5 5600X has an unlocked core multiplier, enabling users to adjust core frequencies and voltage settings via compatible motherboard BIOS or AMD Ryzen Master software. Tuning results depend on motherboard power delivery, cooling capacity, and silicon variation.
The processor provides 24 PCIe 4.0 lanes, x16 for GPU, x4 for NVMe storage, plus chipset uplink, and supports DDR4 memory at up to 3200 MHz. PCIe 4.0 NVMe SSDs and current-generation graphics cards can operate at full interface bandwidth when paired with a 500-series motherboard.
The 6-core, 12-thread configuration supports 1080p and 1440p gaming when paired with a mid-range to high-end discrete GPU. The single-thread boost frequency of up to 4.6 GHz contributes to frame rate stability in CPU-sensitive game titles.
Twelve threads allow concurrent execution of gaming, streaming encoding, browser tabs, and voice communication software without significant thread contention for moderate streaming setups.
The processor handles 1080p and 1440p video editing, photo retouching, and basic 3D modeling in applications such as Adobe Premiere Pro and Photoshop. Export times scale with the 6-core multi-threaded performance.
For users with existing AM4 motherboards including B450, X470, B550, and X570, the Ryzen 5 5600X provides a drop-in CPU upgrade path after a BIOS update, without requiring replacement of the motherboard, DDR4 memory, or power supply.
The Ryzen 5 5600X is available in both retail boxed and OEM tray formats. Retail units include a factory-sealed box and documentation. OEM tray units are supplied without retail packaging for system integrators and volume buyers. Bulk pricing and lead time are available upon request.
No. The Ryzen 5 5600X does not include an integrated GPU. A discrete graphics card is required for display output.
The processor uses the AM4 socket. It is compatible with 500-series motherboards including B550, X570, and A520, and selected 400-series motherboards including B450 and X470 after a manufacturer BIOS update. Check the motherboard vendor CPU support list for confirmation.
The processor officially supports DDR4 memory at up to 3200 MHz. Higher memory speeds may be achievable via overclocking, depending on the motherboard, memory kit, and silicon quality.
Yes. The Ryzen 5 5600X provides 24 PCIe 4.0 lanes. PCIe 4.0 functionality requires a 500-series motherboard, B550 or X570. On 400-series motherboards, PCIe 4.0 may be limited or unavailable depending on the board design.
The Ryzen 5 5600X has a 3.7 GHz base and 4.6 GHz boost, while the standard Ryzen 5 5600 has a 3.5 GHz base and 4.4 GHz boost. Both have 6 cores, 12 threads, 35MB cache, and 65W TDP. The 5600X was the original launch SKU, and the 5600 was released later as a lower-priced variant.
