Circuit Protection Components (TVS, Fuses, Varistors)

Electronic circuits are vulnerable to overvoltage, overcurrent, and electrostatic discharge (ESD). Protection components are the silent guardians that prevent damage and ensure reliability. This article examines the most important protection devices and how to use them.

Part 1: The Threats

ESD (Electrostatic Discharge)

• Caused by static electricity buildup

• Can reach thousands of volts

• Duration: nanoseconds

• Can destroy semiconductor junctions

Surge

• Caused by lightning, inductive switching, or power grid disturbances

• Can reach hundreds to thousands of volts

• Duration: microseconds to milliseconds

• Can damage power supplies and interfaces

Overcurrent

• Caused by short circuits, component failure, or excessive load

• Can cause overheating and fire

• Duration: milliseconds to seconds

Reverse Polarity

• Caused by incorrect power supply connection

• Can instantly destroy sensitive components

Part 2: Protection Components

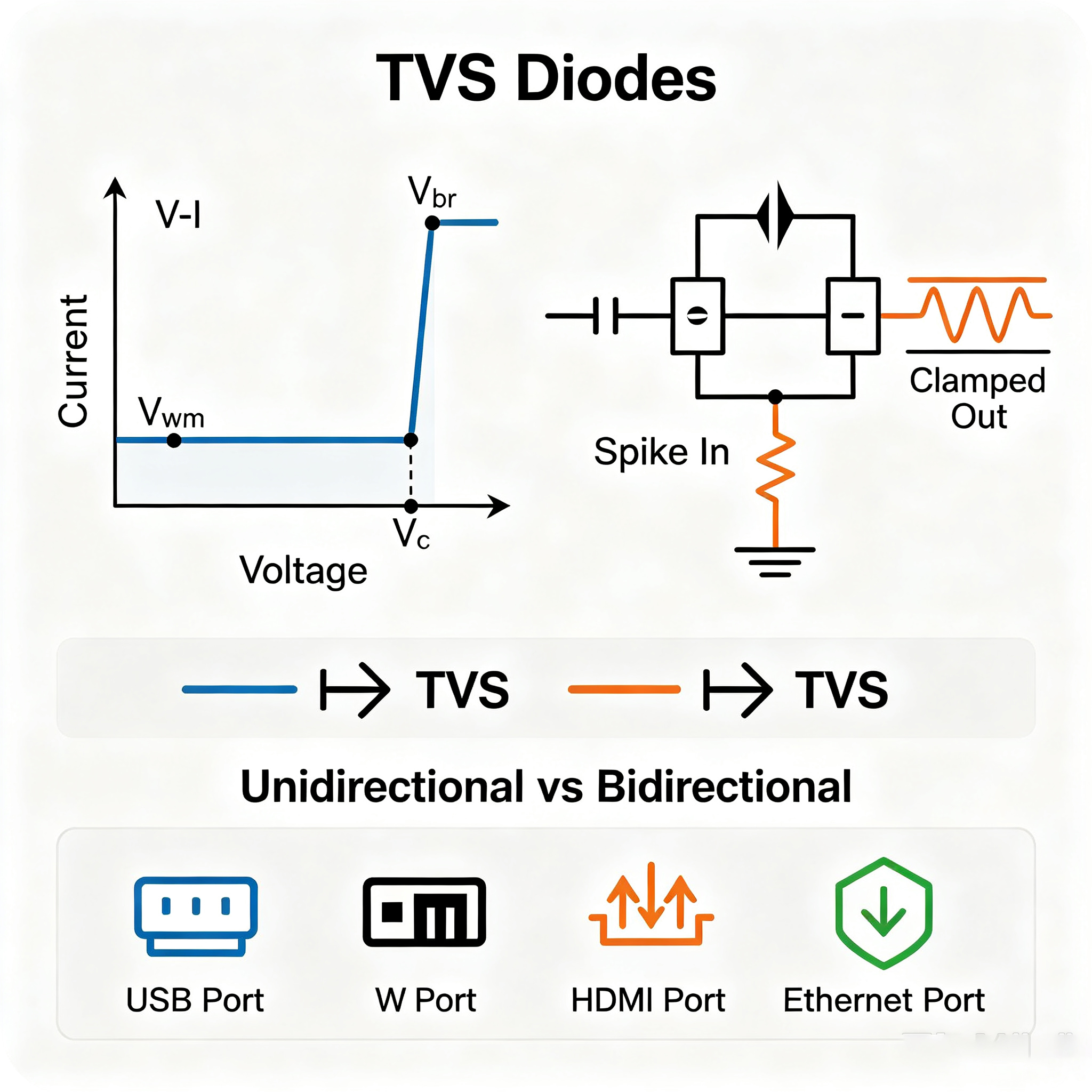

TVS Diodes (Transient Voltage Suppressors)

How they work: A TVS diode conducts when voltage exceeds its breakdown voltage, clamping the transient to a safe level.

Key parameters:

• Standoff voltage (Vwm): Maximum voltage in normal operation.

• Breakdown voltage (Vbr): Voltage at which the TVS begins to conduct.

• Clamping voltage (Vc): Maximum voltage during a surge.

• Peak pulse power (Ppp): Maximum energy it can absorb.

Types:

• Unidirectional: For DC circuits.

• Bidirectional: For AC circuits or differential signals.

Applications: USB ports, HDMI interfaces, power supply inputs, Ethernet ports.

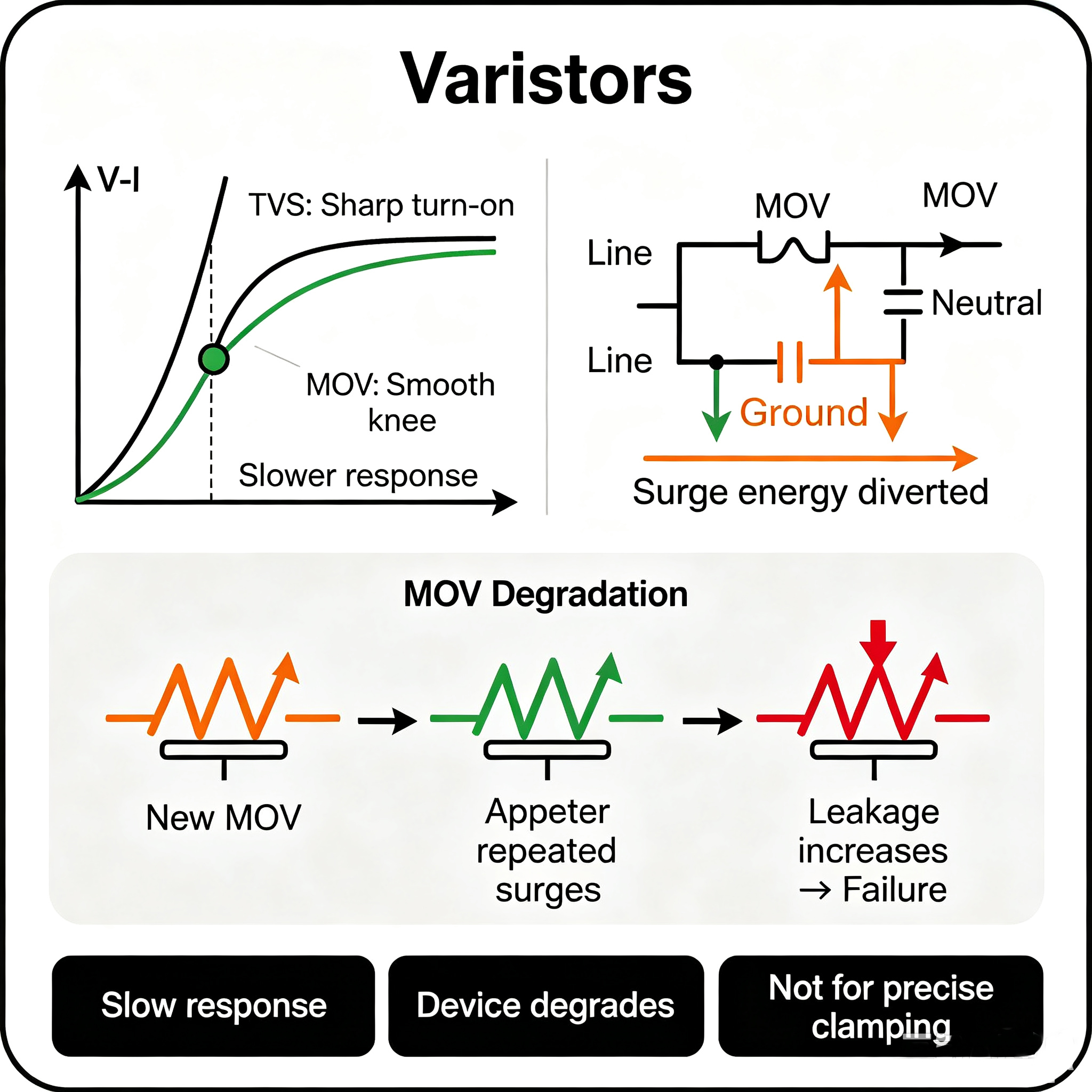

Varistors (MOVs—Metal Oxide Varistors)

How they work: A varistor's resistance drops sharply when voltage exceeds a threshold, shunting surge energy to ground.

Key parameters:

• Varistor voltage: The voltage at which it begins to conduct.

• Energy rating: Maximum energy it can absorb.

• Response time: Slower than TVS diodes.

Applications: AC power line protection, surge protectors.

Limitations: Degrades with repeated surges; not suitable for precise clamping.

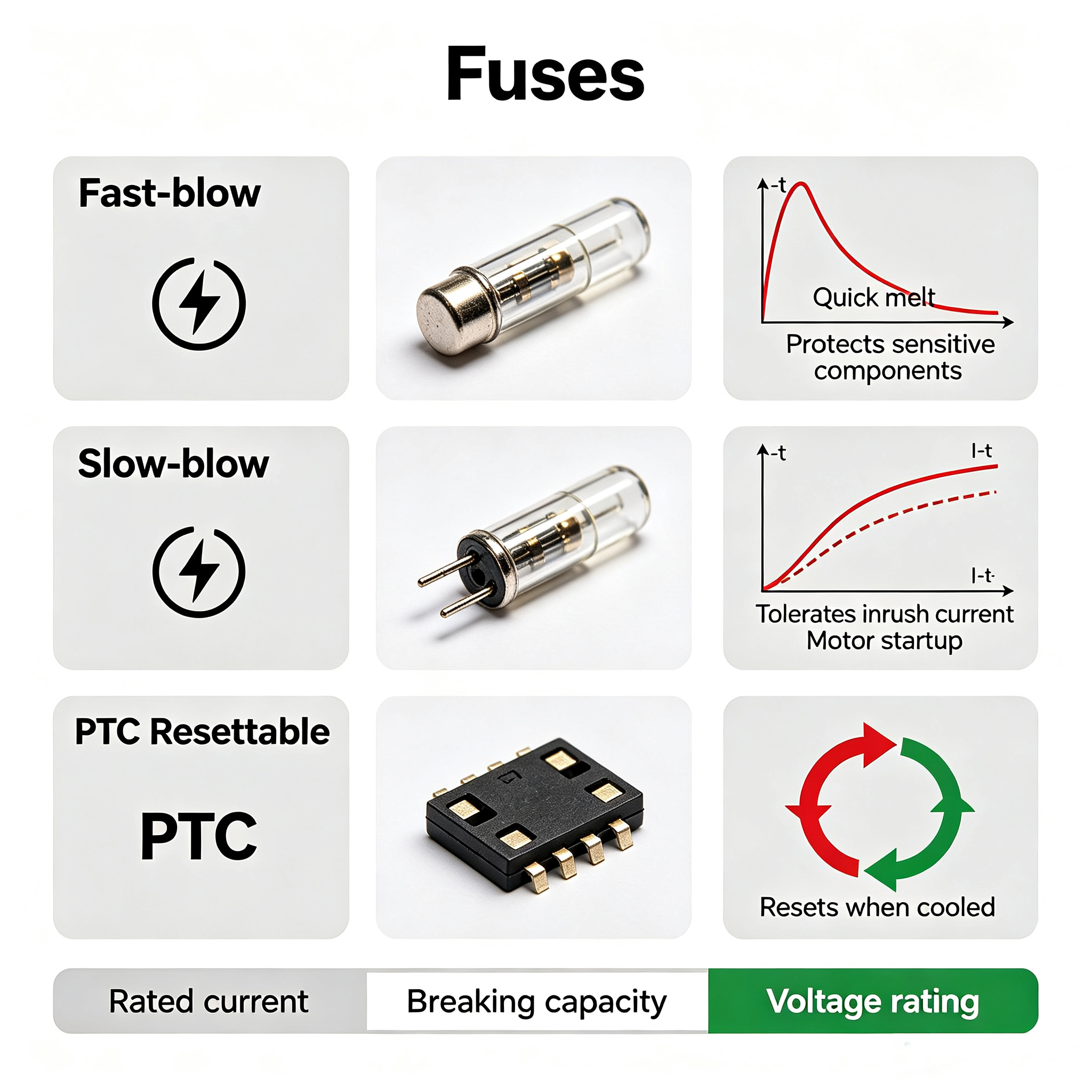

Fuses

How they work: A fuse contains a metal element that melts when current exceeds its rating, breaking the circuit.

Types:

• Fast-blow: For sensitive components.

• Slow-blow: For circuits with inrush current.

• PTC resettable: Resistance increases with temperature; resets when cooled.

Key parameters:

• Rated current: Maximum continuous current.

• Breaking capacity: Maximum current it can safely interrupt.

• Voltage rating: Maximum voltage it can handle.

Applications: Power supplies, battery packs, motor circuits.

Gas Discharge Tubes (GDTs)

How they work: A GDT contains gas that ionizes when voltage exceeds a threshold, creating a low-impedance path.

Key parameters:

• DC sparkover voltage: Voltage at which it triggers.

• Impulse sparkover voltage: Voltage at which it triggers for fast transients.

• Surge current rating: Maximum current it can handle.

Applications: Telecom lines, AC power protection.

Limitations: Slow response; may allow a brief spike through.

Part 3: Designing a Protection Strategy

A robust protection design often uses multiple components in a coordinated strategy.

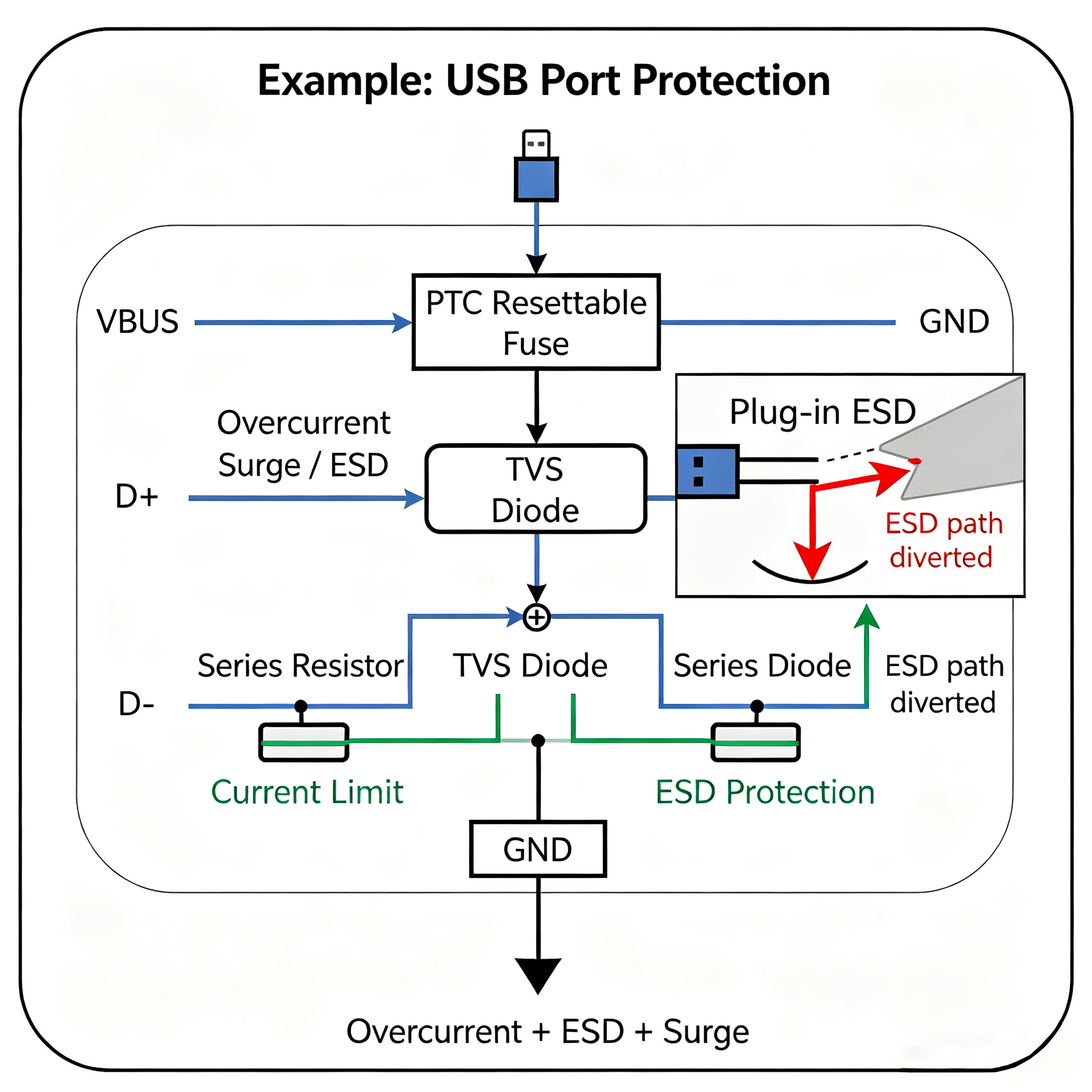

Example: USB Port Protection

1. TVS diode on the data lines (D+ and D-) for ESD protection.

2. TVS diode on VBUS for surge protection.

3. PTC resettable fuse on VBUS for overcurrent protection.

4. Series resistor on data lines to limit current during ESD events.

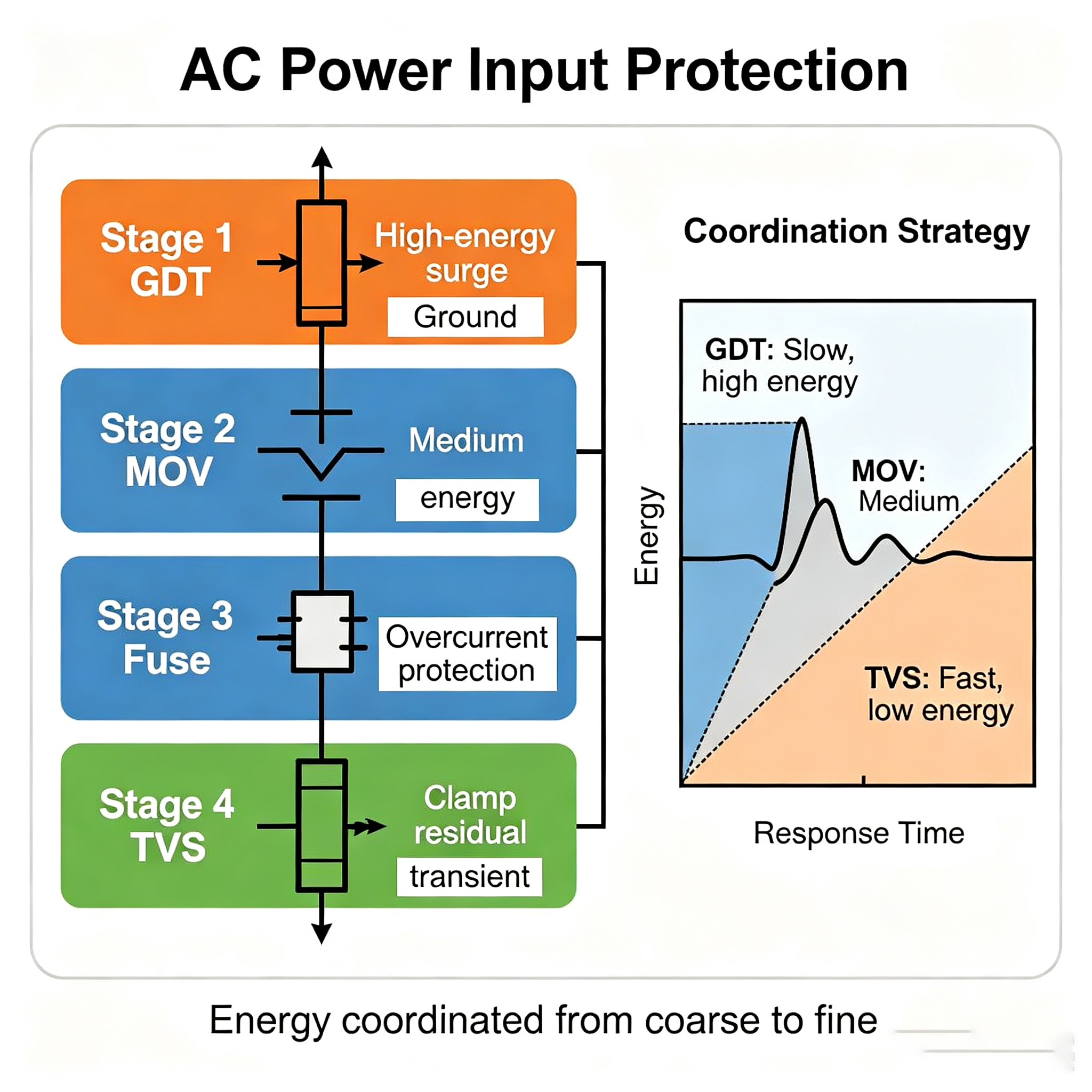

Example: AC Power Input Protection

1. MOV across the line and neutral for surge absorption.

2. GDT from line/neutral to ground for high-energy surges.

3. Fuse in series with the line for overcurrent protection.

4. TVS diode after the rectifier for clamping residual transients.

Coordination Considerations

• Voltage clamping levels: Ensure downstream components can survive the residual voltage.

• Response times: Fast devices (TVS) handle the initial spike; slower devices (MOV, GDT) handle the bulk energy.

• Energy ratings: Ensure each device can handle its share of the surge energy.

Part 4: Common Mistakes

1. Using only one protection device: A single TVS may not handle high-energy surges.

2. Ignoring layout: Long traces add inductance, reducing protection effectiveness.

3. Underestimating ESD: Even small discharges can degrade components over time.

4. Forgetting reverse polarity: A simple series diode or MOSFET can prevent catastrophic damage.

5. Not testing: Always verify protection performance with surge and ESD testing.

Key Takeaways

• ESD, surges, overcurrent, and reverse polarity are the main threats to electronic circuits.

• TVS diodes provide fast, precise clamping for ESD and transient protection.

• Varistors absorb high-energy surges but degrade over time.

• Fuses protect against overcurrent; PTC resettable fuses offer automatic recovery.

• GDTs handle very high-energy surges but respond slowly.

• A coordinated protection strategy uses multiple devices for comprehensive coverage.
