You have learned what electronic components are and how they are classified. Now comes the practical challenge: how do you actually recognize them?
There are two worlds you must master. The first is the schematic world—the abstract, symbolic language engineers use to design circuits. The second is the physical world—the real, tangible components you hold in your hand and solder onto a board.
Bridging these two worlds is one of the most fundamental skills in electronics. This article will teach you how to read component symbols on a schematic and how to identify the corresponding physical parts by their package.
A schematic is a map of a circuit. It does not show you what the circuit looks like physically. Instead, it shows you how components are connected electrically. Every component has a standard symbol, and every symbol tells you something about what that component does.
Imagine trying to describe a circuit using only words. "Connect one end of a carbon film resistor to the positive terminal of a 9-volt battery..." It would be exhausting and error-prone. Symbols solve this problem. They are a universal language that any engineer, anywhere in the world, can read.
Let's walk through the symbols you will encounter most often.
The resistor symbol is a zigzag line. In some standards (particularly in Europe and Asia), it is drawn as a simple rectangle.
What it tells you: Current flows through this component, and it resists that flow. The zigzag or rectangle is placed in line with the wire path.
Variations you might see:
Variable resistor (potentiometer): A zigzag with an arrow pointing to it. The arrow indicates that the resistance can be adjusted.
Thermistor: A resistor with a diagonal line and a small "t" or a temperature symbol. Its resistance changes with temperature.
Photoresistor (LDR): A resistor with arrows pointing toward it, indicating that light affects its resistance.
The capacitor symbol is two parallel lines with a gap between them. The lines represent the conductive plates, and the gap represents the dielectric.
What it tells you: This component stores electrical charge. It blocks direct current (DC) but allows alternating current (AC) to pass.
Variations you might see:
Polarized capacitor (electrolytic): One straight line and one curved line. The curved line usually indicates the negative terminal. You must connect it with the correct polarity, or it may fail.
Variable capacitor: Two parallel lines with an arrow through them. Used in tuning circuits.
Trimmer capacitor: Similar to a variable capacitor but designed for fine, one-time adjustments.
The inductor symbol is a series of loops or coils. It looks like a spring.
What it tells you: This component stores energy in a magnetic field. It blocks AC but allows DC to pass.
Variations you might see:
Iron core inductor: A coil with two parallel lines above or below it.
Ferrite bead: A coil with a line through it, often used for suppressing high-frequency noise.
Variable inductor: A coil with an arrow, allowing inductance to be adjusted.
The diode symbol is a triangle pointing toward a vertical line. The triangle represents the direction of conventional current flow (from positive to negative), and the vertical line represents the barrier.
What it tells you: Current can flow in only one direction—from the anode (triangle side) to the cathode (line side).
Variations you might see:
Light-emitting diode (LED): A diode symbol with two arrows pointing away from it, indicating light emission.
Photodiode: A diode symbol with two arrows pointing toward it, indicating light detection.
Zener diode: A diode symbol with a bent line at the cathode, indicating voltage regulation.
Schottky diode: A diode symbol with an "S"-shaped cathode line, indicating low forward voltage drop.
Transistor symbols are more complex because they have three terminals. The two main types are BJT and MOSFET.
BJT (Bipolar Junction Transistor):
A circle containing three lines: base, collector, and emitter.
The emitter has an arrow. If the arrow points outward, it is an NPN transistor. If it points inward, it is a PNP transistor.
MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor):
Three terminals: gate, drain, and source.
The gate is drawn as a line separated from the channel by a gap (representing the oxide layer).
An arrow on the source indicates N-channel or P-channel.
What it tells you: This component can amplify a signal or act as a switch.
The IC symbol is usually a rectangle or square with pins extending from the sides. Each pin is numbered.
What it tells you: This is a complex circuit packaged into a single component. The symbol often includes the part number and a brief description of the function.
Variations you might see:
Operational amplifier (op-amp): A triangle with two inputs and one output.
Microcontroller: A large rectangle with many pins, often labeled with port names like PA0, PB1, etc.
Logic gate: A distinctive shape (AND, OR, NOT, etc.) with input and output lines.
Let's look at a simple schematic for an LED driver circuit.
VCC at the top indicates the positive power supply.
GND at the bottom indicates ground (the negative terminal).
A resistor symbol connects VCC to the anode of an LED symbol.
The cathode of the LED connects to the collector of an NPN transistor.
The emitter of the transistor connects to GND.
A resistor connects the base of the transistor to an input signal.
By reading the symbols, you can immediately understand the circuit's function: when the input signal is high, the transistor turns on, current flows through the LED, and light is emitted. The resistor limits the current to protect the LED.
A schematic symbol tells you what a component does. A package tells you what it looks like and how it mounts to a printed circuit board (PCB).
Two components with identical electrical characteristics can have completely different packages. Choosing the right package affects:
PCB layout: How much space the component takes up.
Thermal performance: How well the component dissipates heat.
Manufacturing: Whether the component can be placed by machine or must be soldered by hand.
Cost: Some packages are more expensive to manufacture and assemble.
Reliability: Some packages are more robust in harsh environments.
The first major division in packaging is between through-hole and surface mount.
In through-hole packaging, the component has leads (pins) that are inserted through holes in the PCB and soldered on the opposite side.
Advantages:
Strong mechanical bond
Easy to solder by hand
Easy to replace or repair
Disadvantages:
Takes up more board space
More expensive to assemble in high volumes
Limited to lower frequencies due to longer leads
Common through-hole packages:
DIP (Dual In-line Package): Two rows of pins, used for ICs.
Axial: Leads on opposite ends, used for resistors and capacitors.
Radial: Leads on the same end, used for capacitors.
TO-92: A small, three-legged package for transistors.
TO-220: A larger package with a metal tab for heat dissipation, used for power transistors and voltage regulators.
In surface mount packaging, the component is placed directly onto pads on the surface of the PCB and soldered in place. There are no holes.
Advantages:
Much smaller footprint
Higher component density
Better high-frequency performance
Cheaper to assemble in high volumes
Disadvantages:
Harder to solder by hand
Difficult to repair or replace
Requires more precise PCB manufacturing
Common surface mount packages:
0402, 0603, 0805, 1206: These numbers indicate the size of the component in hundredths of an inch. For example, an 0603 resistor is 0.06 inches by 0.03 inches. Smaller numbers mean smaller components.
SOT-23 (Small Outline Transistor): A tiny three-legged package for transistors and diodes.
SOIC (Small Outline Integrated Circuit): A rectangular package with pins on two sides.
QFN (Quad Flat No-leads): A square package with pins on all four sides but no protruding leads. The pins are pads underneath the package.
QFP (Quad Flat Package): A square package with pins extending from all four sides.
BGA (Ball Grid Array): A package where the connections are tiny solder balls arranged in a grid on the bottom. Used for high-pin-count ICs like processors.
When you look at a physical component, ask yourself these questions:
Does it have leads that go through the board? If yes, it is through-hole. If no, it is surface mount.
How many pins does it have? Count them. This narrows down the possibilities.
What is the spacing between pins? This is called the pitch. Common pitches are 2.54mm (0.1 inch) for through-hole and 0.5mm, 0.65mm, or 1.27mm for surface mount.
What is the shape? Rectangular, square, cylindrical, or something else?
Are there any markings? Part numbers, manufacturer logos, and date codes are often printed on the component.
Physical components often have markings that tell you what they are. Here are some common examples:
Resistors:
Through-hole resistors often use color bands to indicate resistance value and tolerance. Each color represents a digit or multiplier.
Surface mount resistors usually have a three- or four-digit code. For example, "103" means 10 × 10³ = 10,000 ohms (10kΩ).
Capacitors:
Ceramic capacitors often have a three-digit code similar to resistors. "104" means 10 × 10⁴ picofarads = 100,000 pF = 0.1µF.
Electrolytic capacitors usually have the value printed directly, along with a voltage rating and polarity marking.
ICs:
The part number is usually printed on the top. For example, "LM358" is a dual operational amplifier.
A small dot or notch indicates pin 1. This is critical for orienting the IC correctly.
Diodes:
A band on one end indicates the cathode. Current flows from the unmarked end (anode) to the banded end (cathode).
Transistors:
The part number is printed on the body. For example, "2N2222" is a common NPN BJT.
The pinout (which pin is emitter, base, and collector) varies by package and must be checked in the datasheet.
The real skill is being able to look at a schematic symbol and immediately know what physical component you need, and vice versa.
Let's say you see a resistor symbol on a schematic with a value of 10kΩ. To find the physical component, you need to decide:
Package type: Through-hole or surface mount? This depends on your PCB design.
Power rating: How much power will it dissipate? Common ratings are 1/8W, 1/4W, 1/2W, and 1W.
Tolerance: How precise does it need to be? Common tolerances are ±1% and ±5%.
Temperature coefficient: How much does the resistance change with temperature?
The schematic gives you the value. The physical requirements determine the package and other specifications.

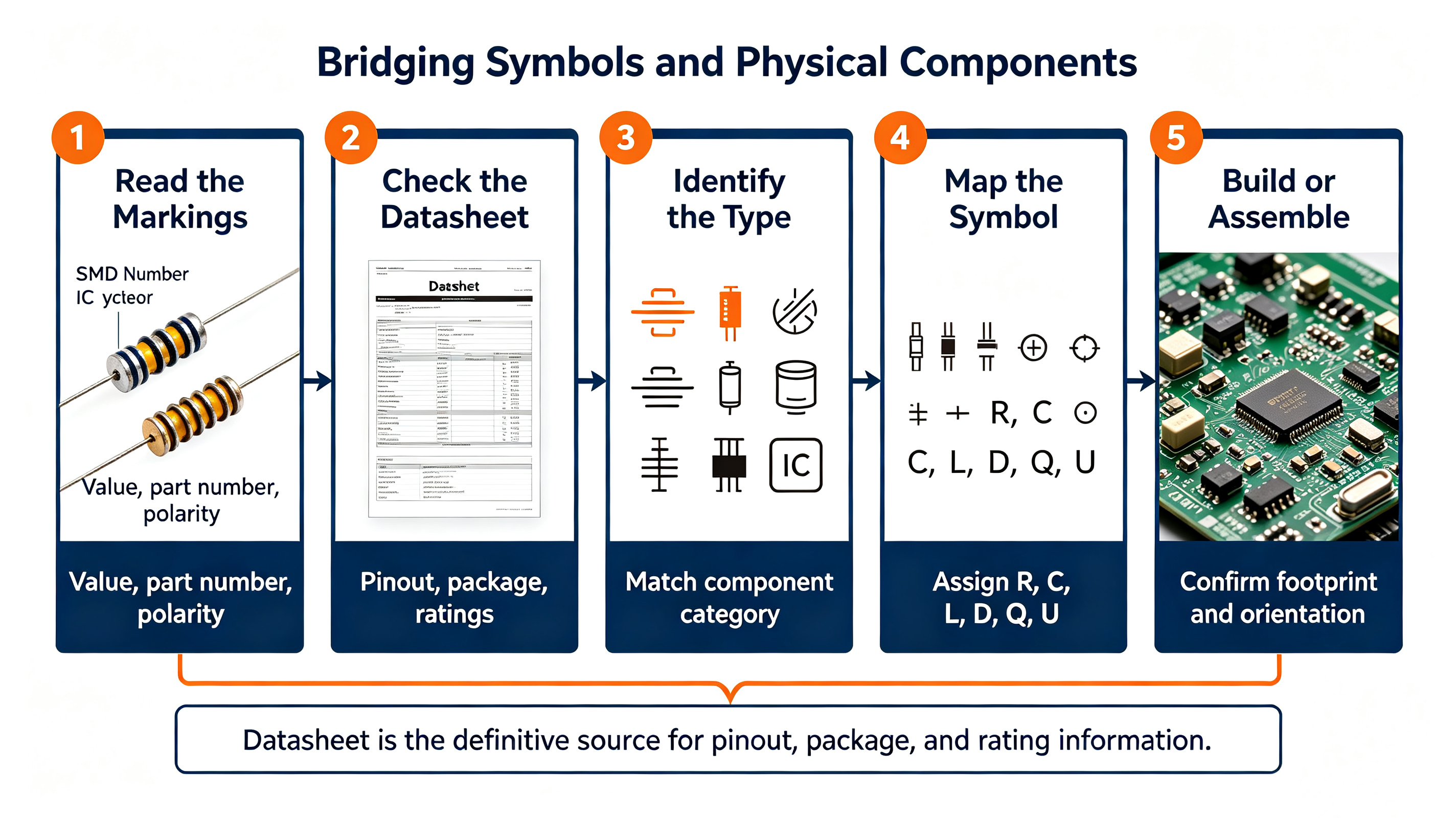

Conversely, if you have a physical component in your hand, you can identify it and find its symbol.
Read the markings: Use the part number or color code to identify the component.
Look up the datasheet: The datasheet will tell you the pinout, electrical characteristics, and often include the schematic symbol.
Determine the symbol: Based on the component type, draw the appropriate symbol on your schematic.
Always check the datasheet. Never assume a pinout or package based on appearance alone. Datasheets are the definitive source of truth.
Use a magnifying glass or microscope. Modern surface mount components are tiny. A magnifier helps you read markings and inspect solder joints.
Keep a component kit. Having a variety of common resistors, capacitors, and transistors on hand makes it easy to compare and identify unknown parts.
Practice reading schematics. The more schematics you read, the faster you will recognize symbols and understand circuit function.
Learn the common packages. Familiarize yourself with DIP, SOIC, QFN, and 0603. These cover the majority of components you will encounter.
Use online tools. Websites like Digi-Key, Mouser, and Octopart allow you to search for components by package, value, and other parameters.
Schematic symbols are the abstract language of circuit design. They tell you what a component does and how it connects.
Packages are the physical form of a component. They determine how it mounts to a PCB and how much space it takes up.
Through-hole components have leads that go through the board. They are easy to work with but large.
Surface mount components are soldered directly to the board surface. They are small and efficient but harder to work with by hand.
Component markings (color codes, part numbers, polarity bands) help you identify physical parts.
The datasheet is your best friend. It bridges the gap between the symbol and the physical component.
Mastering the ability to move between schematic symbols and physical packages is a rite of passage for every electronics enthusiast. It transforms you from someone who can only follow instructions into someone who can design, build, and troubleshoot real circuits.
