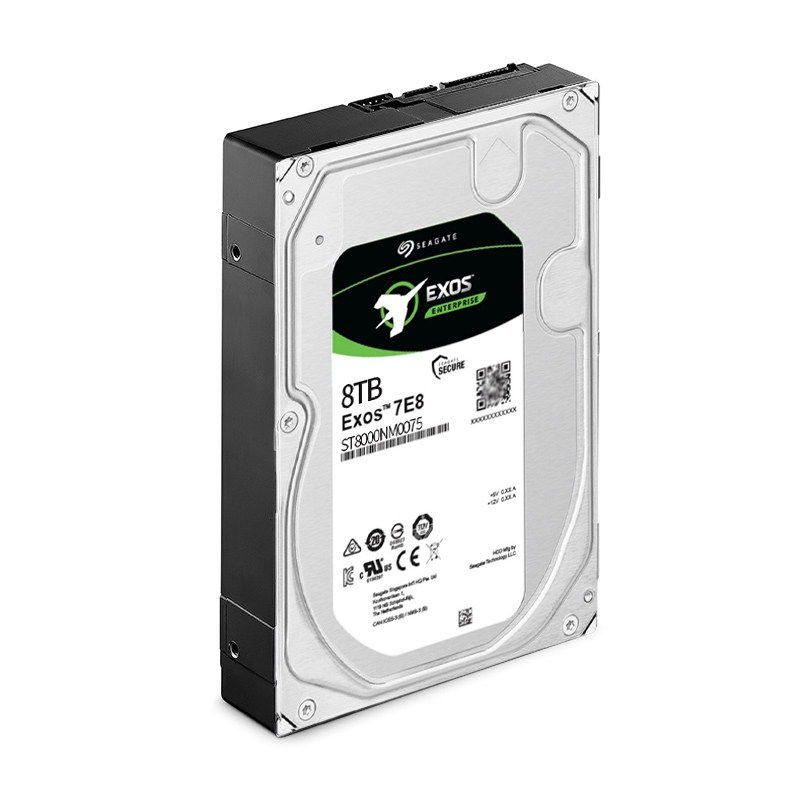

Seagate ST8000NM0075 8TB Exos 7E8 SAS Enterprise HDD

ST8000NM0075 belongs to Seagate Exos 7E8 enterprise series, 3.5‑inch CMR hard disk with 8TB capacity, 7200RPM spindle speed, 256MB cache and dual‑port SAS 12Gb/s interface, delivering up to 249MB/s sustained transfer speed.

It supports 550TB yearly workload and 2‑million‑hour MTBF for non‑stop 24×7 enterprise running. Dual‑port design provides link redundancy for high‑availability systems. Vibration‑cancellation and T10‑DIF protect data integrity in dense multi‑drive enclosures.

Main applications include SAS enterprise servers, high‑availability RAID arrays, JBOD expansion, near‑line bulk storage and enterprise backup archive. Requires SAS controller / HBA hardware, adequate cooling for heavy‑load continuous usage. Datasheet PDF can be downloaded.

ST8000NM0075 Seagate Exos 7E8 Enterprise Hard Drive Features

1. 8TB High-Density Pure CMR Enterprise Storage

The ST8000NM0075 is a high-performance Seagate Exos 7E8 series enterprise hard drive built for mission-critical server and data center environments. Featuring 8TB reliable large capacity and genuine CMR conventional magnetic recording technology, it completely eliminates SMR performance throttling and random write instability. Delivering consistent, steady read-write output under long-duration cyclic workloads, it provides high-cost-effective and high-density storage deployment for medium and large enterprise server rooms, effectively improving rack space utilization and reducing overall hardware investment.

2. 7200RPM High Speed & 256MB Large Cache SAS 12Gb/s Interface

Equipped with industrial-grade 7200RPM high-precision spindle motor and 256MB ultra-large independent cache, this enterprise HDD adopts professional dual-port SAS 12Gb/s high-speed interface, delivering far higher bandwidth and transmission efficiency than traditional SATA interfaces. It supports ultra-fast batch data transmission, high-concurrency multi-user access and large-file iterative processing, with optimized cache scheduling algorithm minimizing read-write latency and ensuring stable 24/7 high-load operational efficiency.

3. Enterprise-Grade Low Power Consumption & Stable Thermal Control

Built with mature optimized enterprise mechanical structure and power-saving chip design, the ST8000NM0075 features low operating power consumption and low heat generation. With excellent thermal dissipation performance and ultra-quiet mechanical operation, it effectively reduces data center cooling pressure and long-term power loss. The stable energy-saving design greatly lowers enterprise long-term TCO for continuous operation scenarios.

4. 2 Million Hours MTBF & 550TB High Annual Workload

Specially engineered for 8760-hour full-year uninterrupted enterprise operation, this hard drive achieves 2,000,000 hours industry-leading MTBF and ultra-low failure rate. It supports 550TB professional enterprise-grade annual workload rating, fully adapting to long-term high-frequency mixed read-write, cyclic overwriting, log recording and backup tasks. Built-in multi-level intelligent error correction and abnormal power-off protection mechanisms guarantee complete data integrity in complex operating environments.

5. Dual-Port SAS Redundancy & RAID Vibration Resistance

Integrating dual-port SAS redundant transmission technology and professional rotational vibration suppression & dual-plane balance design, the drive effectively avoids link failure risks and offsets cross-disk mechanical resonance interference in high-density multi-bay server racks and large-scale RAID arrays. Exclusive enterprise firmware optimizes array synchronization and error recovery efficiency, preventing performance degradation and bad sector accumulation during long-term cluster operation, maximizing overall storage system stability and availability.

Technical Specifications of ST8000NM0075 Seagate Exos 7E8 Enterprise SAS HDD

Industrial Applications of the ST8000NM0075 Seagate Exos 7E8 Enterprise Hard Drive

1. High-Availability Data Center SAS Storage Deployment

The ST8000NM0075 features stable 8TB large capacity and high-speed dual-port SAS 12Gb/s interface, perfectly suited for medium and large data center high-availability storage deployment. The dual-port redundant design avoids single-link failure risks, ensuring uninterrupted data transmission. With high workload resistance and low energy consumption, it effectively reduces long-term operational costs and improves the reliability of centralized enterprise storage systems.

2. Enterprise SAS RAID Array Redundant Backup System

Optimized for professional SAS array environments, this pure CMR enterprise HDD delivers sustained high-speed read-write performance and superior anti-vibration stability. It supports multi-disk cluster cyclic overwriting and synchronous backup tasks, maintaining precise data synchronization and zero-loss data integrity during long-term high-load operation. It is the ideal high-reliability storage solution for enterprise core redundant RAID arrays and high-availability server clusters.

3. Core Database & High-Concurrency Business Storage

Equipped with 256MB large cache and 12Gb/s high-bandwidth SAS interface, the drive efficiently responds to high-concurrency database access, data query and real-time data writing tasks. It adapts to 24/7 uninterrupted high-intensity business workloads, ensuring fast response and stable operation of enterprise core database systems and business platforms.

4. Long-Term Server Log & Monitoring Data Recording

With 550TB high annual workload capacity and enterprise-level error correction mechanism, the ST8000NM0075 stably undertakes long-term continuous writing and classified storage of server operation logs, equipment monitoring data and business flow records. It ensures complete, traceable and safe retention of enterprise operational data, supporting daily operation analysis and fault troubleshooting.

5. Enterprise Critical Data Archiving & Disaster Recovery

Relying on 2 million hours ultra-high MTBF and dual-port redundant transmission design, this SAS enterprise hard drive provides reliable long-term archiving and disaster recovery backup for enterprise core business data, financial files and important resource records. It features low maintenance and high stability, helping enterprises build secure and durable data asset management and emergency recovery systems。
