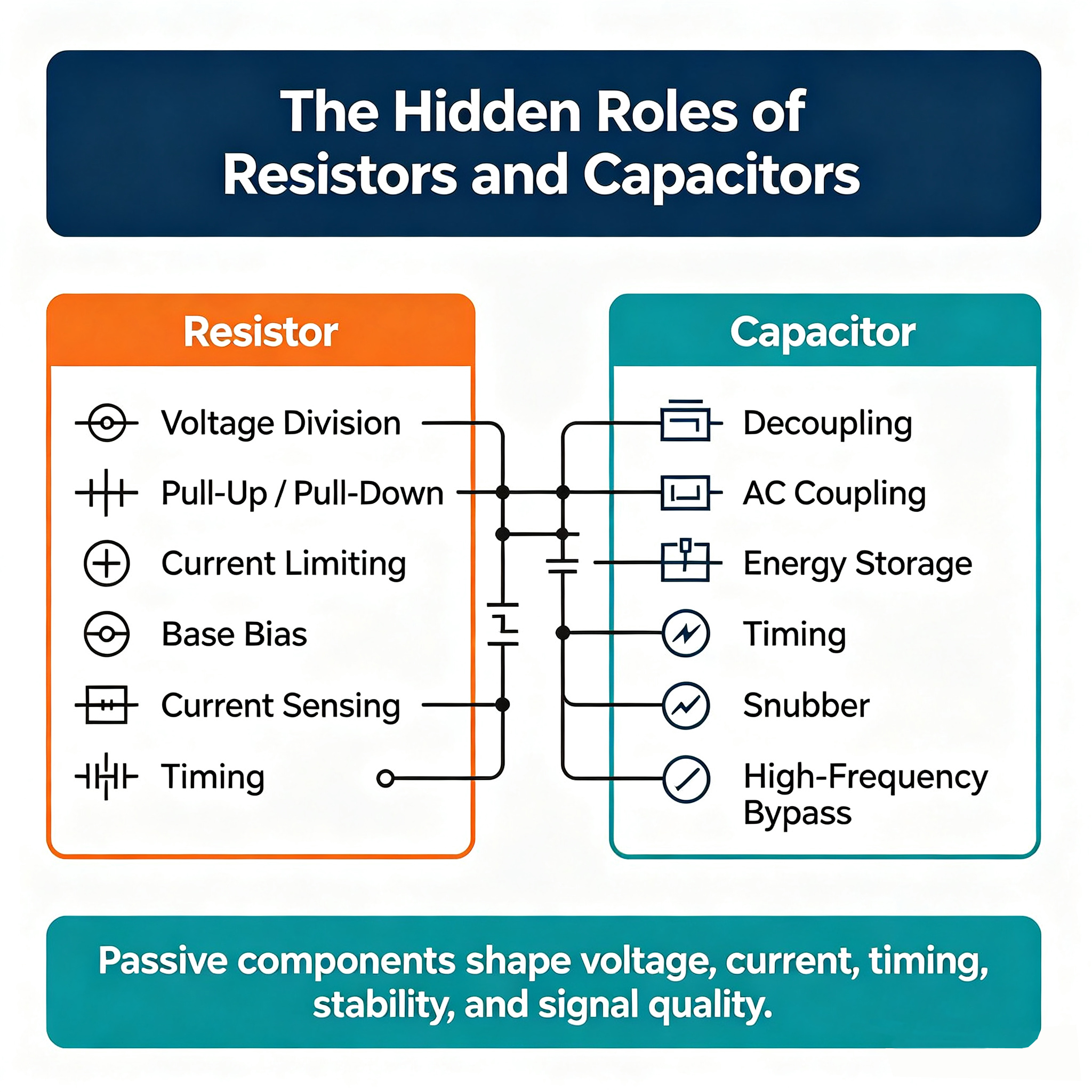

Most beginners learn two things about resistors and capacitors: resistors limit current, and capacitors filter noise. While true, these descriptions barely scratch the surface. In real circuits, resistors and capacitors perform dozens of subtle, critical functions that can make or break a design. This article explores their hidden roles and the parameters that matter most.

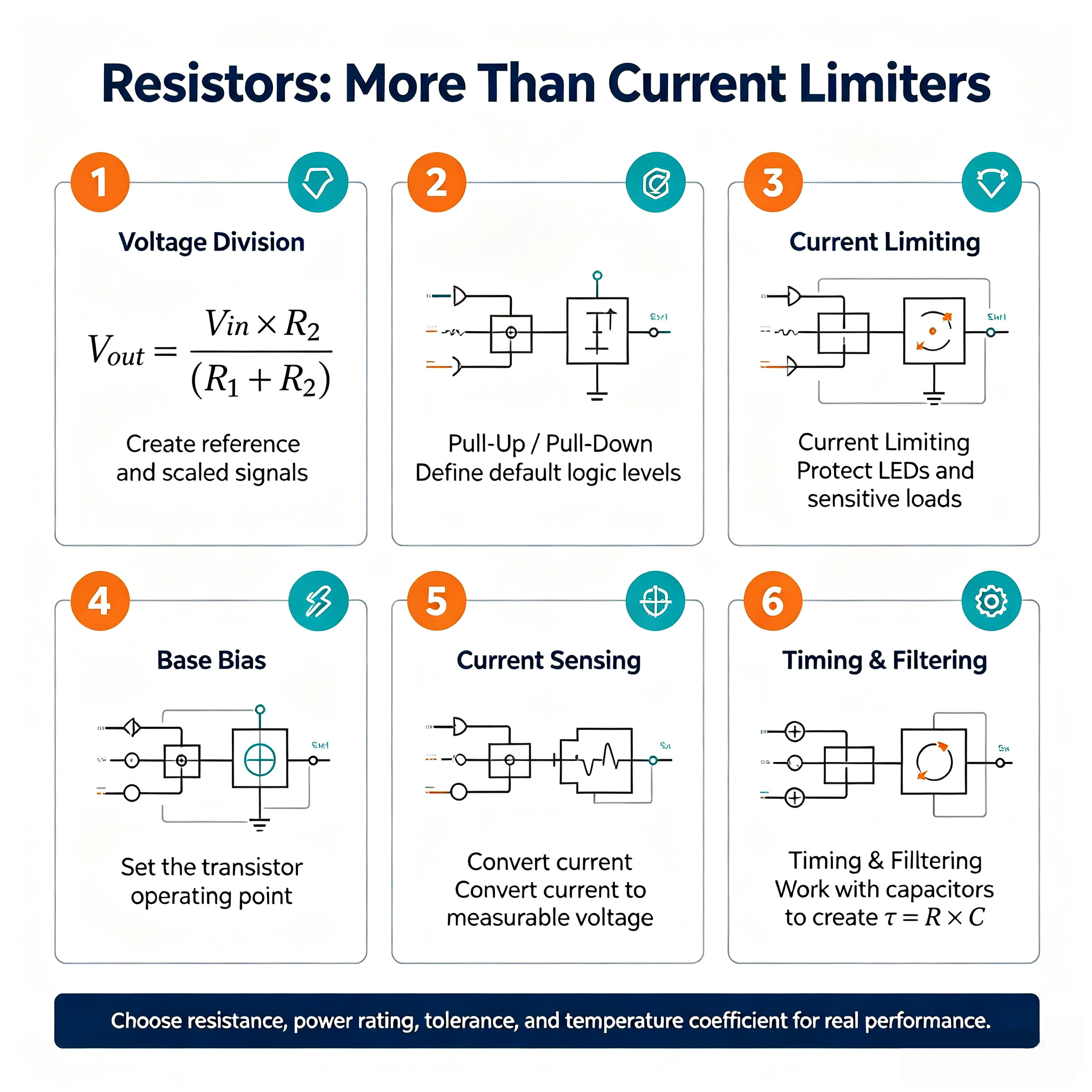

One of the most common uses of resistors is creating a voltage divider. Two resistors in series across a voltage source produce an output voltage that is a fraction of the input.
Formula: Vout = Vin × (R2 / (R1 + R2))
Applications:
Scaling down a sensor output to match an ADC input range
Creating reference voltages
Biasing transistor circuits
Design tip: The absolute values of R1 and R2 matter. Too low, and you waste power. Too high, and the output becomes sensitive to load impedance.
Digital circuits often need a defined logic level when no active driver is present. A pull-up resistor connects a signal line to VCC, while a pull-down connects it to ground.
Why they matter:
Prevent floating inputs on microcontrollers, which can cause erratic behavior
Define the default state of communication lines (I²C, UART)
Ensure proper logic levels during power-up
Typical values: 4.7kΩ to 10kΩ for I²C; 10kΩ to 100kΩ for general-purpose inputs.
Trade-off: Lower values provide faster switching but consume more power. Higher values save power but slow down signal transitions.
This is the classic application. An LED has a nearly fixed forward voltage drop. Without a series resistor, the current would rise uncontrollably and destroy the LED.
Formula: R = (Vsupply - Vforward) / Idesired
Example: For a 5V supply, a red LED with Vforward = 2V, and a desired current of 10mA:
R = (5 - 2) / 0.01 = 300Ω
In BJT amplifier circuits, resistors set the DC operating point (bias). A voltage divider at the base establishes the quiescent collector current, ensuring the transistor operates in its linear region.
Key insight: The bias point determines gain, distortion, and headroom. Getting it wrong means a distorted or non-functional amplifier.
A small resistor placed in series with a load creates a voltage drop proportional to current. This is the basis of current sensing.
Formula: V = I × R
Example: A 0.1Ω resistor carrying 1A produces a 100mV drop, which can be measured by an ADC or comparator.
Design tip: Use a low-temperature-coefficient resistor to minimize measurement drift.
Combined with capacitors, resistors create RC time constants that control timing and filtering.
Time constant: τ = R × C
Applications:
Debouncing mechanical switches
Creating delays
Smoothing PWM outputs into analog voltages
Low-pass and high-pass filters

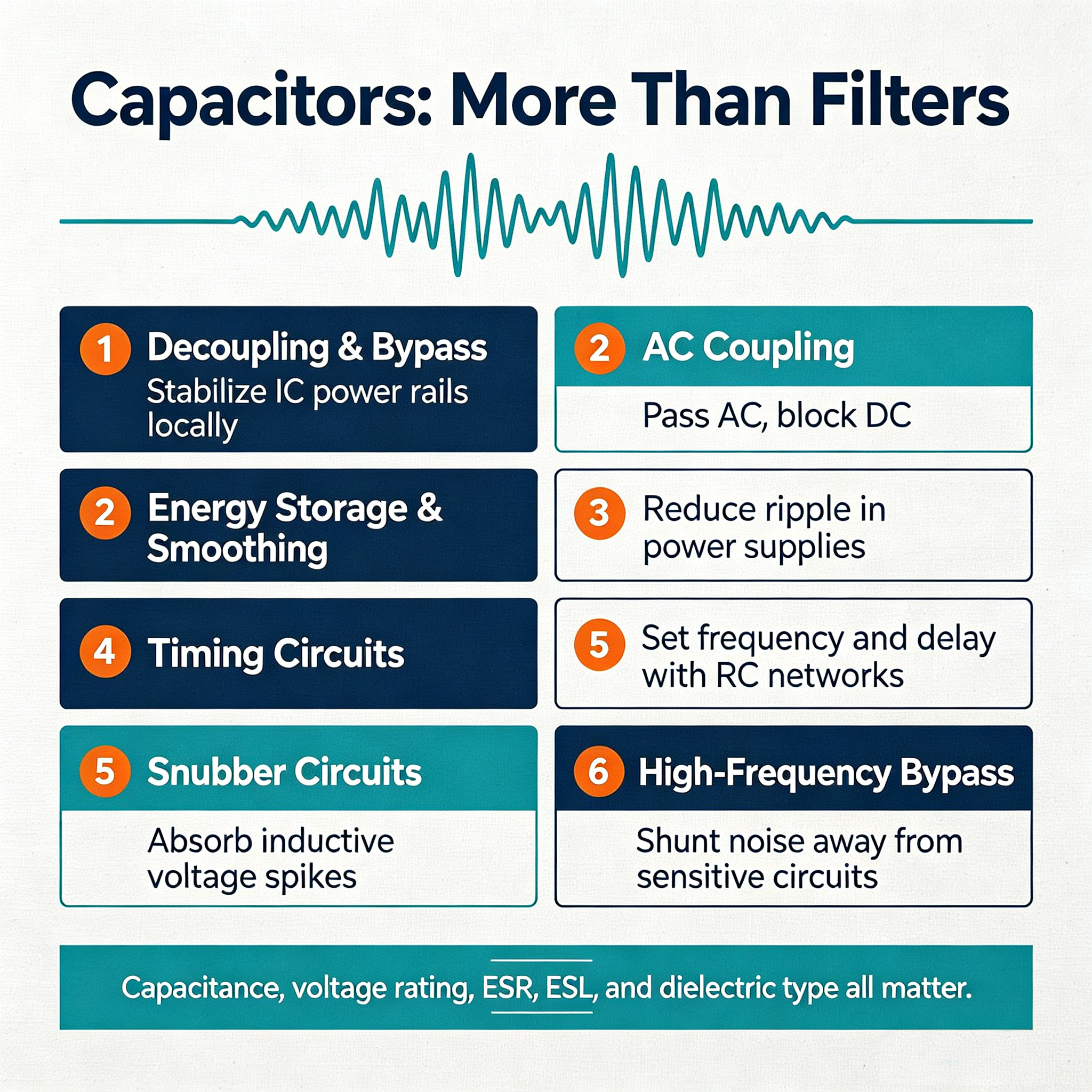

Every IC needs local energy storage to handle sudden current demands. A decoupling capacitor placed close to the power pins provides this energy, preventing voltage drops that could cause glitches.
Why it works: The capacitor acts as a small, local battery. When the IC switches rapidly, it draws current from the capacitor rather than from the distant power supply, whose inductance would slow the response.
Best practice:
Place a 100nF ceramic capacitor as close as possible to each power pin
Add a bulk capacitor (10µF to 100µF) nearby for lower-frequency demands
Use multiple capacitor values in parallel to cover a broad frequency range
A capacitor can pass an AC signal while blocking DC. This is called AC coupling or capacitive coupling.
Applications:
Connecting amplifier stages with different DC bias points
Removing DC offset from a signal before measurement
Isolating a signal source from a load
Design tip: Choose the capacitor value so that its impedance is negligible at the lowest frequency of interest.
Formula: Xc = 1 / (2πfC)
In power supplies, capacitors smooth the pulsating DC output from a rectifier. They charge during voltage peaks and discharge during troughs, maintaining a steady output.
Ripple voltage: Vripple ≈ Iload / (f × C)
Design tip: Larger capacitance reduces ripple but increases inrush current and physical size.
The combination of a resistor and capacitor sets the timing in oscillators, timers, and pulse generators.
Example: The classic 555 timer uses an RC network to set the frequency and duty cycle of its output.
Formula for a 555 astable: f = 1.44 / ((R1 + 2R2) × C)
In switching circuits, capacitors (often combined with resistors) form snubbers that absorb voltage spikes caused by inductive loads.
Why it matters: Without a snubber, the voltage spike from an inductive load can exceed the rating of a switching transistor and destroy it.
At high frequencies, capacitors act as low-impedance paths to ground, shunting noise away from sensitive circuits.
Applications:
Filtering noise on power supply lines
Bypassing RF interference
Stabilizing feedback loops in regulators
Parameter | What It Means | Why It Matters |
|---|---|---|
Resistance | Nominal value in ohms | Determines circuit behavior |
Tolerance | Variation from nominal (±1%, ±5%) | Affects precision |
Power Rating | Maximum safe dissipation | Prevents overheating |
Temperature Coefficient | Change in resistance with temperature | Affects stability |
Noise | Thermal noise generated | Critical in low-signal applications |
Parameter | What It Means | Why It Matters |
|---|---|---|
Capacitance | Nominal value in farads | Determines charge storage |
Tolerance | Variation from nominal | Affects timing and filtering |
Voltage Rating | Maximum safe voltage | Prevents breakdown |
ESR (Equivalent Series Resistance) | Internal resistance | Affects ripple and efficiency |
ESL (Equivalent Series Inductance) | Internal inductance | Limits high-frequency performance |
Dielectric Type | Material (C0G, X7R, Y5V) | Affects stability and temperature behavior |
Dielectric types explained:
C0G/NP0: Highly stable, low loss, but low capacitance values. Ideal for timing and filtering.
X7R: Moderate stability, higher capacitance. Good for decoupling.
Y5V: High capacitance but poor stability and temperature characteristics. Use with caution.
Consider a simple reset circuit for a microcontroller:
A 10kΩ pull-up resistor connects the reset pin to VCC.
A 100nF capacitor connects the reset pin to ground.
A push button connects the reset pin to ground.
How it works:
Normally, the pull-up holds the reset pin high, and the capacitor is charged.
When the button is pressed, the capacitor discharges, pulling the reset pin low.
When the button is released, the capacitor charges slowly through the resistor, creating a delay before the reset pin goes high again.
The hidden roles:
The resistor is not just limiting current; it is setting the RC time constant.
The capacitor is not just filtering; it is creating a deliberate delay.
Resistors do far more than limit current: they divide voltage, set bias points, sense current, and define timing.
Capacitors do far more than filter: they decouple, couple, store energy, and shape signals.
The RC time constant is one of the most powerful concepts in electronics.
Parameters like tolerance, temperature coefficient, ESR, and dielectric type determine real-world performance.
Understanding these hidden roles separates a beginner from a competent designer.
