Understanding IC Packages and Their Evolution

Every integrated circuit must be packaged before it can be used. The package protects the delicate silicon die, provides electrical connections, and helps dissipate heat. Over the decades, IC packaging has evolved dramatically, enabling ever-smaller, faster, and more powerful devices.

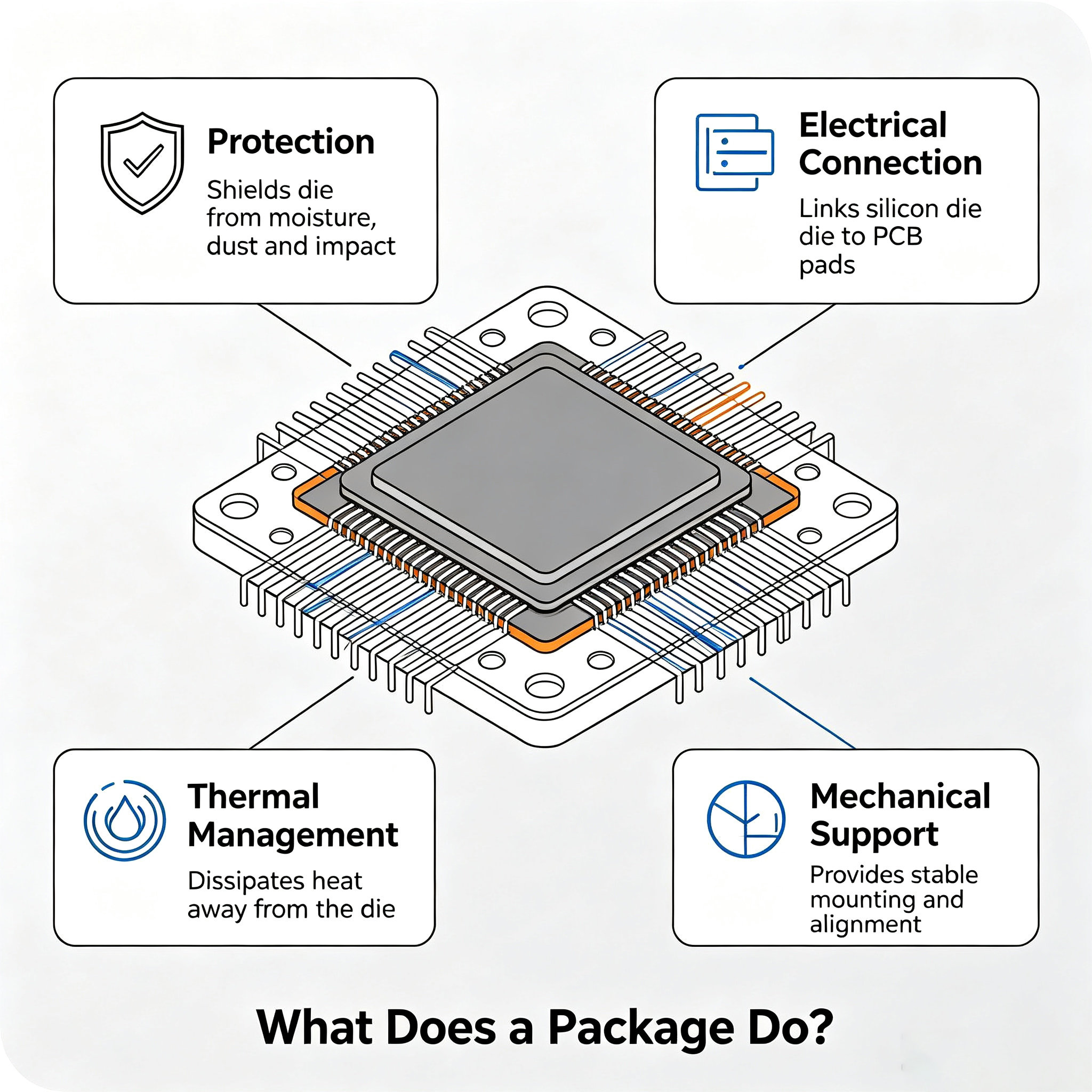

Part 1: What Does a Package Do?

An IC package serves four primary functions:

1. Protection: Shields the die from moisture, dust, and physical damage.

2. Electrical connection: Routes signals from the tiny die pads to larger pins or pads that can be soldered to a PCB.

3. Thermal management: Conducts heat away from the die.

4. Mechanical support: Provides a stable physical form for handling and assembly.

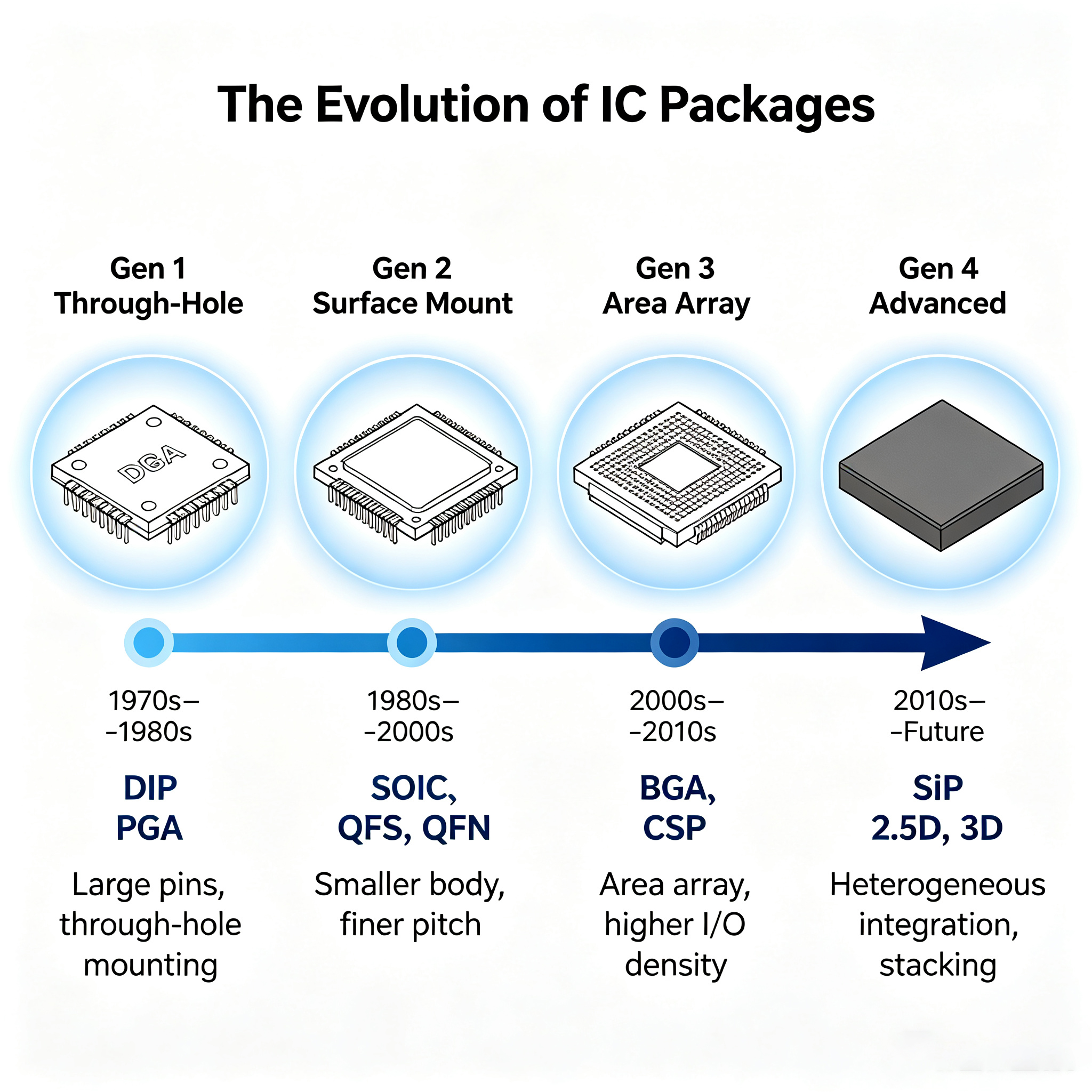

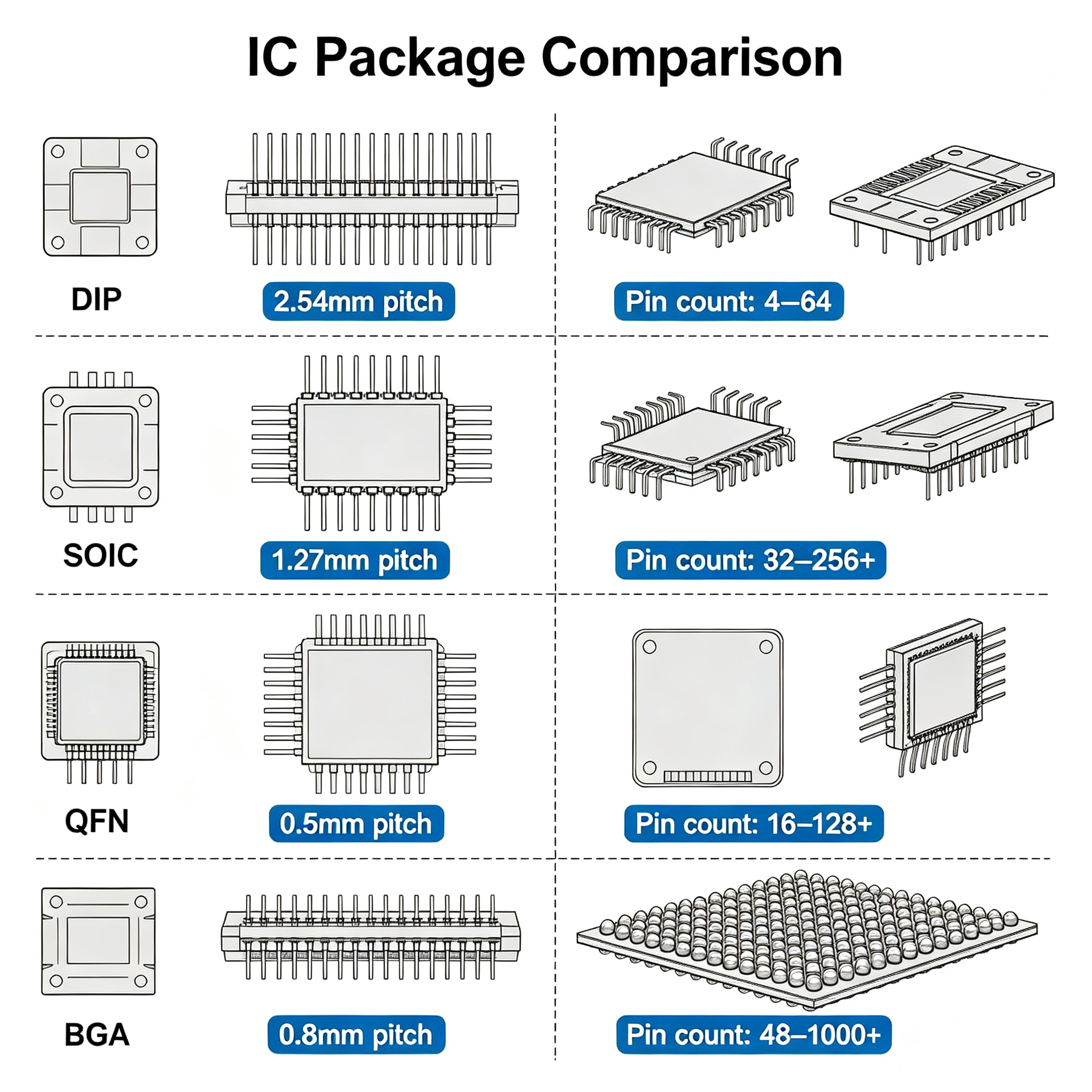

Part 2: The Evolution of IC Packages

Generation 1: Through-Hole Packages

DIP (Dual In-line Package)

• Introduced in the 1960s

• Two rows of pins, 2.54mm pitch

• Easy to handle and socket

• Large and limited pin count (typically 8–64 pins)

• Still used in hobbyist and educational contexts

PGA (Pin Grid Array)

• Pins arranged in a grid on the bottom

• Higher pin count than DIP

• Used for early microprocessors

Generation 2: Surface Mount Packages

SOIC (Small Outline IC)

• Two rows of gull-wing leads

• 1.27mm pitch

• Smaller than DIP

• Common for analog and logic ICs

QFP (Quad Flat Package)

• Leads on all four sides

• 0.4mm–1.0mm pitch

• High pin count (32–256 pins)

• Common for microcontrollers and ASICs

QFN (Quad Flat No-leads)

• No protruding leads; pads underneath

• Very small footprint

• Excellent thermal performance

• Common for power management and RF ICs

Generation 3: Area Array Packages

BGA (Ball Grid Array)

• Solder balls arranged in a grid on the bottom

• Very high pin count (hundreds to thousands)

• Excellent electrical and thermal performance

• Requires X-ray inspection

• Common for CPUs, GPUs, and FPGAs

CSP (Chip Scale Package)

• Package size is nearly the same as the die

• Maximum miniaturization

• Used in mobile devices and wearables

Generation 4: Advanced Packaging

SiP (System in Package)

• Multiple dies (processors, memory, sensors) in one package

• Enables heterogeneous integration

• Used in smartphones and IoT devices

2.5D Packaging

• Multiple dies on an interposer

• High-bandwidth connections between dies

• Used in high-performance computing

3D Packaging

• Dies stacked vertically

• Through-silicon vias (TSVs) connect layers

• Maximum density and performance

• Used in memory (HBM) and advanced processors

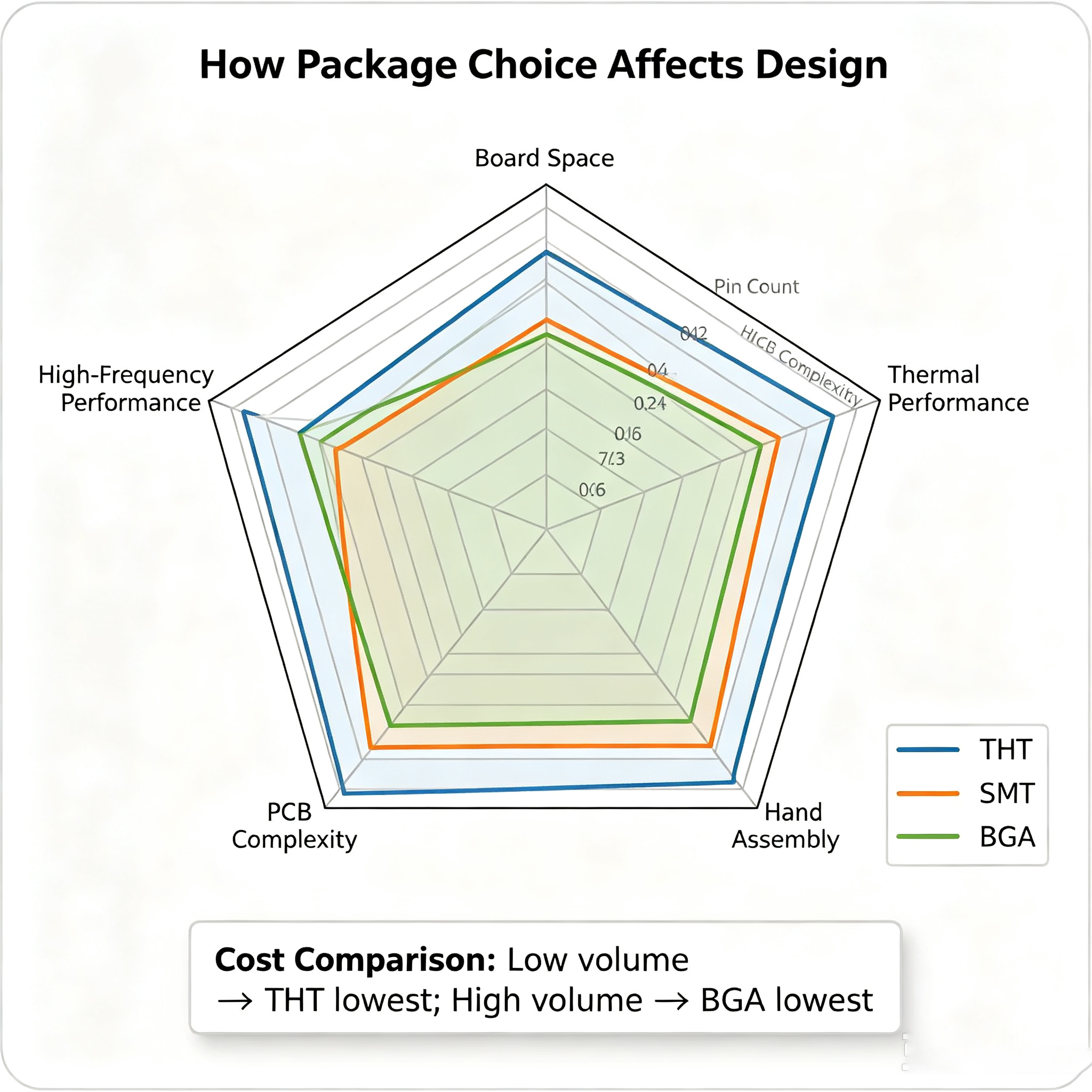

Part 3: How Package Choice Affects Design

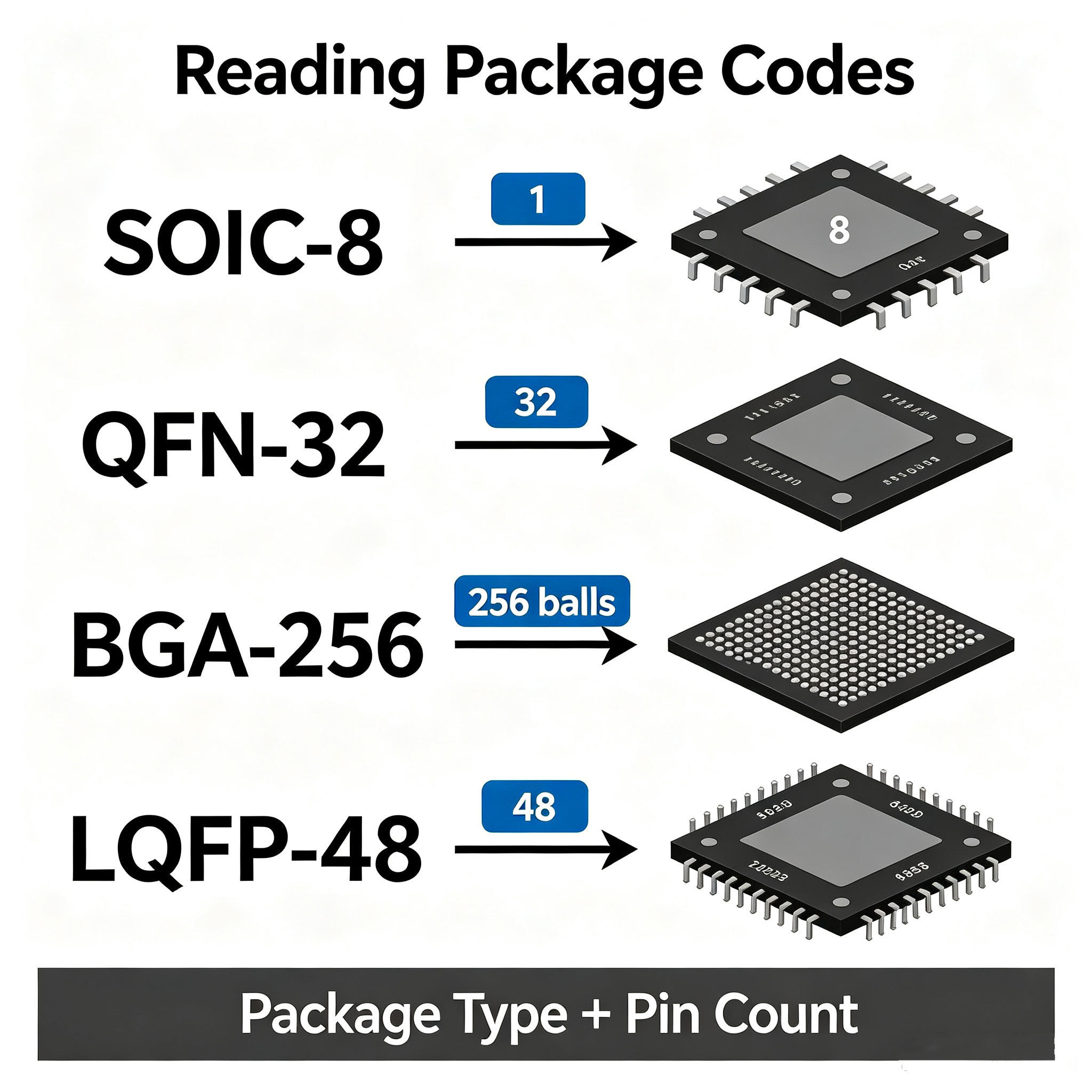

Part 4: Reading Package Codes

IC packages often have codes printed on them or in datasheets. For example:

• "SOIC-8" means a Small Outline IC with 8 pins.

• "QFN-32" means a Quad Flat No-leads package with 32 pins.

• "BGA-256" means a Ball Grid Array with 256 balls.

• "LQFP-48" means a Low-profile Quad Flat Package with 48 pins.

Understanding these codes helps you select the right footprint for your PCB design.

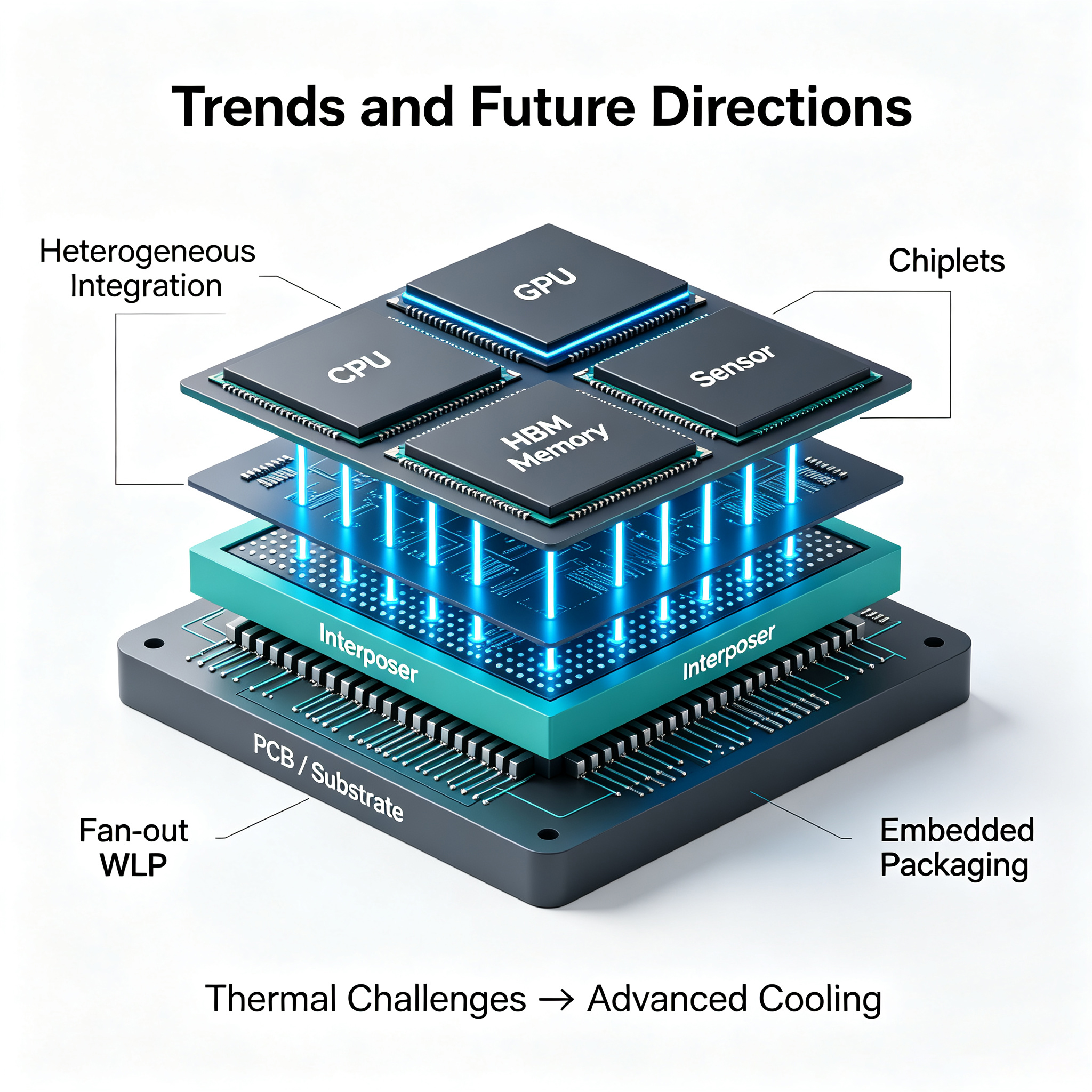

Part 5: Trends and Future Directions

1. Heterogeneous integration: Combining different process nodes and materials in one package.

2. Chiplets: Small, reusable dies that can be mixed and matched.

3. Fan-out wafer-level packaging: Higher density and performance than traditional packages.

4. Embedded packaging: Dies embedded directly into the PCB.

5. Thermal challenges: As power densities increase, advanced cooling solutions become essential.

Key Takeaways

• IC packages protect the die, provide connections, and manage heat.

• Packaging has evolved from DIP to BGA to advanced 3D integration.

• Package choice affects board space, thermal performance, cost, and manufacturability.

• BGA and CSP enable high pin counts and miniaturization.

• Advanced packaging (SiP, 2.5D, 3D) is driving the future of electronics.
