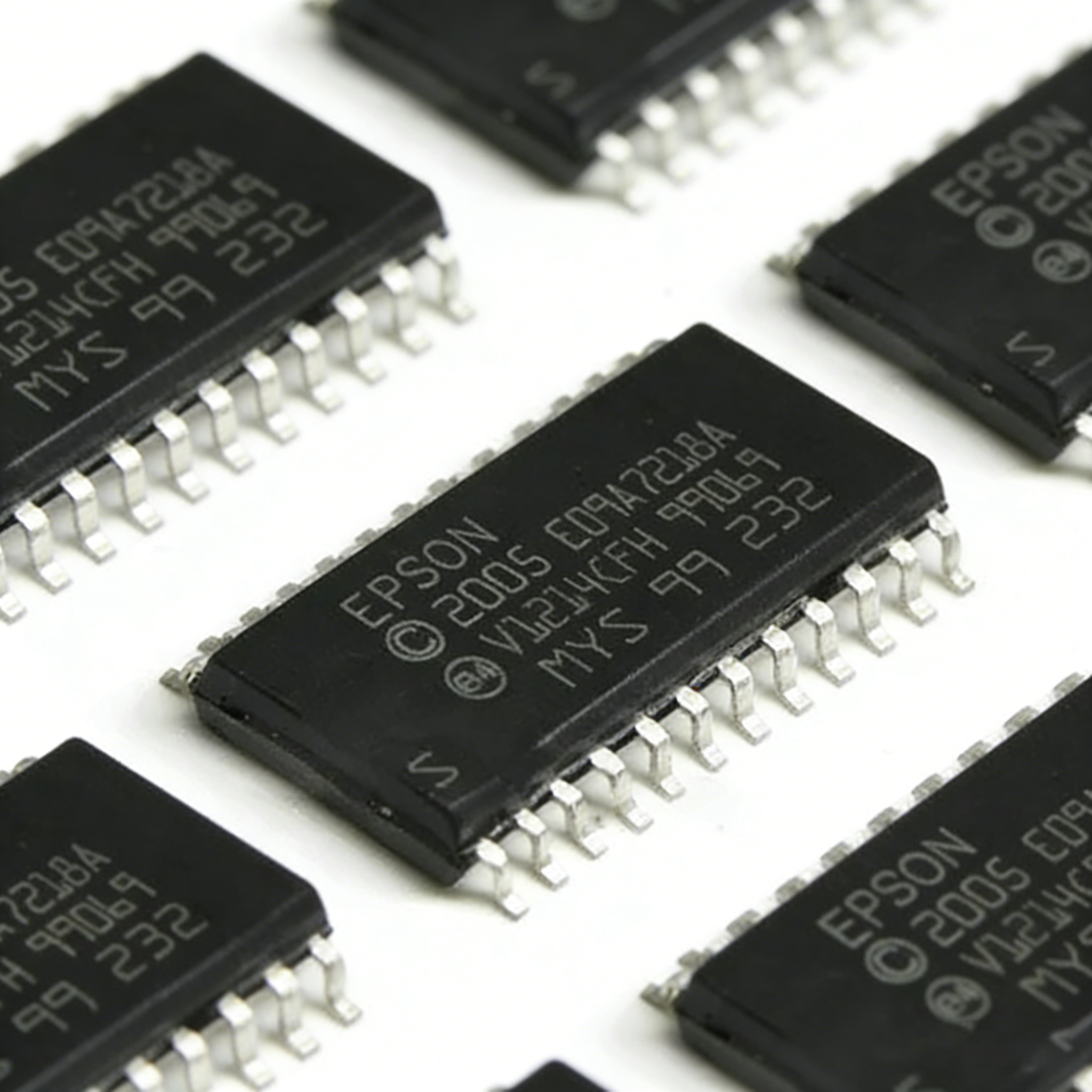

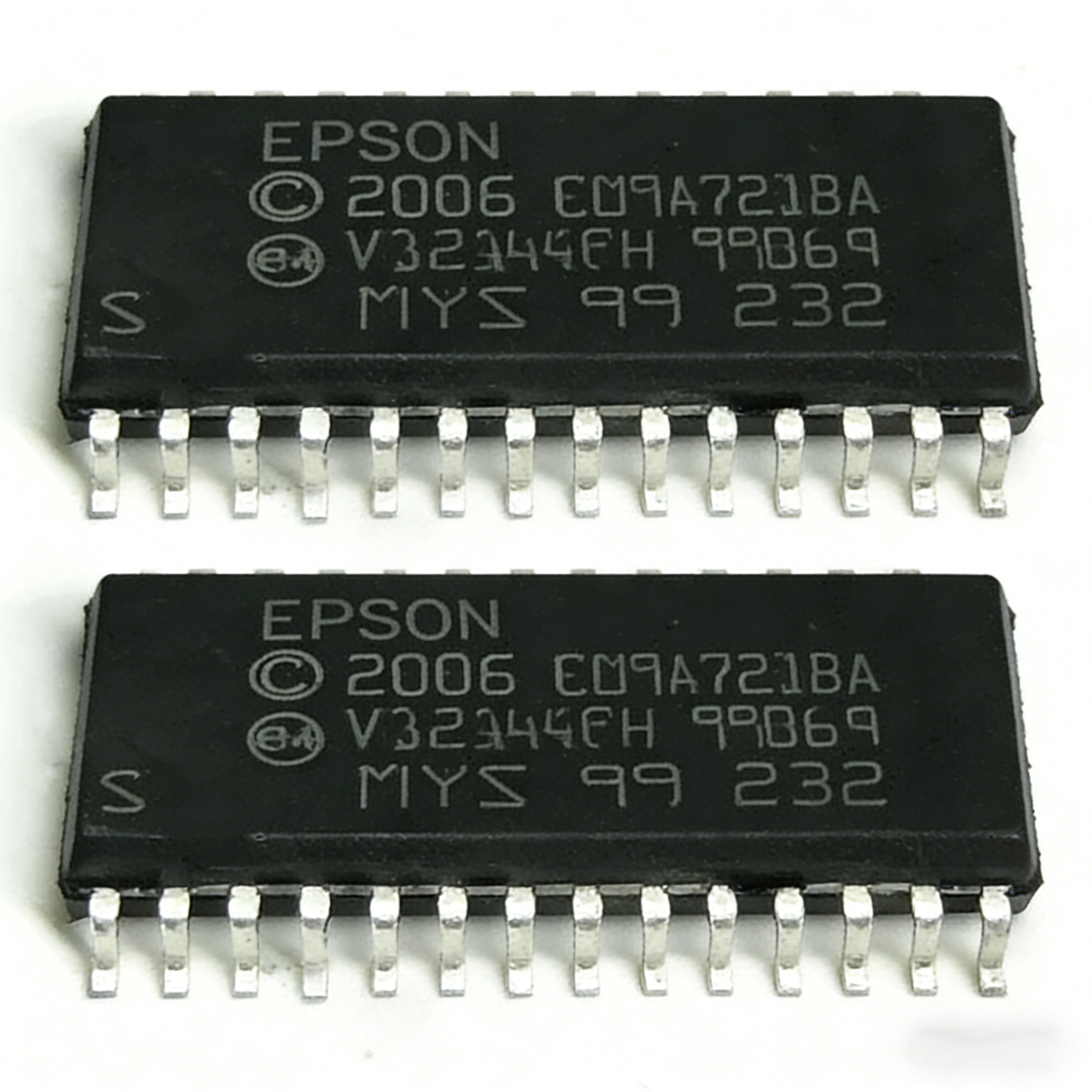

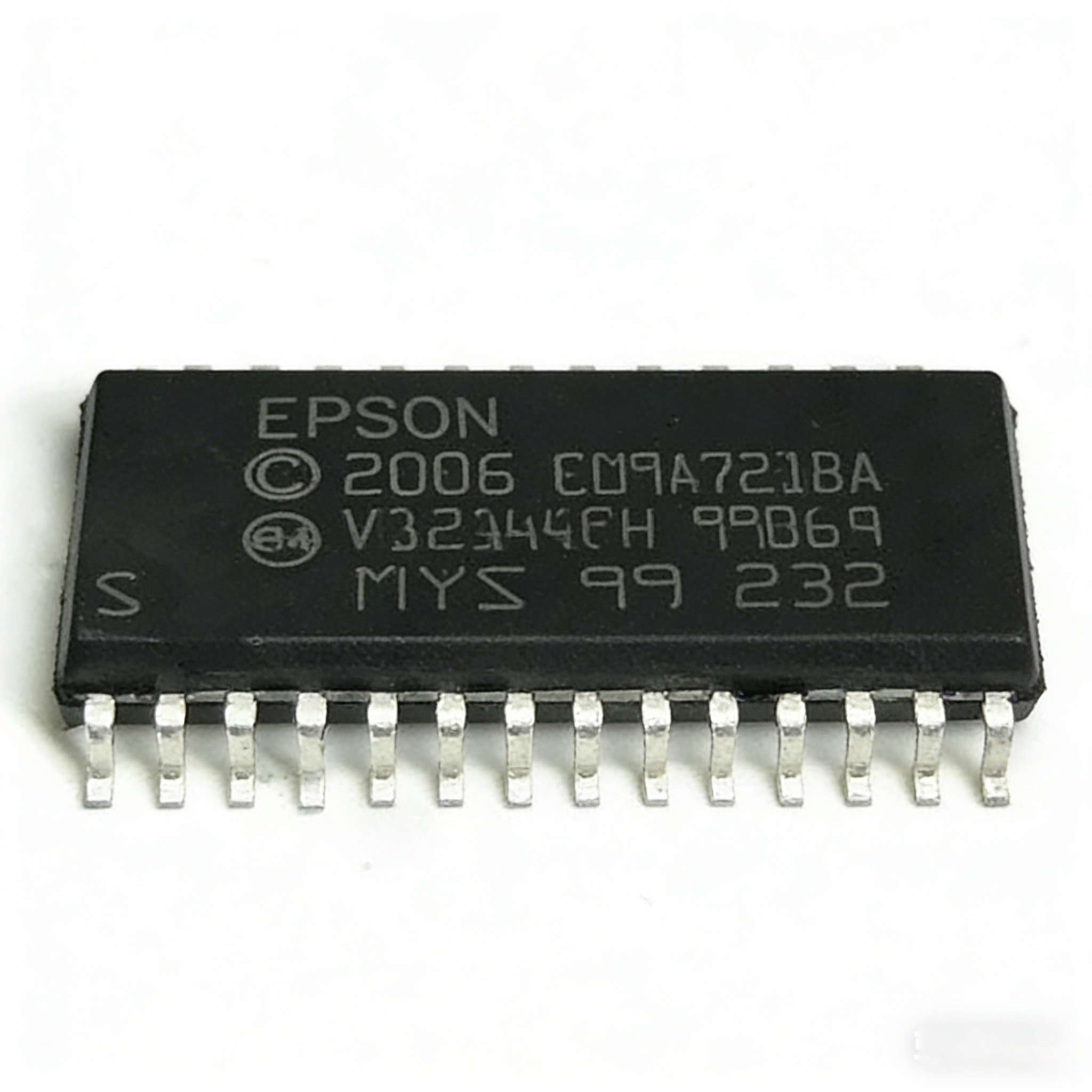

E09A7218A is a proprietary application‑specific IC made by Epson, packaged in SOP‑28 SMD form, used for 6‑color inkjet printer mainboard. It integrates cartridge communication detection, print‑head signal processing and key‑scan debouncing logic.

It cooperates with the main processor to realize ink‑chip identification, print‑head jet control and front‑panel button response. It reduces peripheral discrete devices and improves mainboard integration.

This chip is mainly applied to maintenance and replacement of compatible Epson L‑series and T‑series inkjet printers. Common fault phenomena for damaged chip: ink‑cartridge recognition error, print blank page, panel key failure. Since it is OEM dedicated ASIC, full public datasheet is not released. Operate with correct soldering temperature and confirm printer model compatibility before replacement. Reference PDF document is available for download

E09A7218A Printhead & Keypad Driver IC Features

• Dedicated SOP‑28 surface‑mount driver IC for Epson 6‑color inkjet printers (1390, 1430, L1800 and DTF modified printers)

• Integrated printhead nozzle firing control, precisely manages ink droplet timing and multi‑color print signal output

• Built‑in front‑panel key scanning and signal debounce logic, stable processing of button input signals

• 5V single‑voltage power supply, simple peripheral circuit requirements

• No pre‑programming required, direct SMT solder‑in replacement for faulty chips

• Supports high‑speed printhead drive signal transmission for photo‑grade inkjet printing

• Compatible with modified DTF garment printer mainboard solutions

• Wide operating temperature range: ‑20℃ ~ +85℃ for printer embedded working environment

• ESD sensitive device, requires anti‑static handling during installation

• Proprietary Epson ASIC, pin‑to‑pin replacement only for matching printer hardware, not interchangeable with E09A7418A

Technical Specifications of E09A7218A Surface‑Mount Printhead Driver IC

Industrial Applications of the E09A7218A Surface‑Mount Printhead Driver IC

1. Inkjet Printer Main‑Board Repair

   Replacement driver IC for Epson 1390, Artisan1430, L1800 inkjet printers. Fix blank printing failure caused by damaged printhead driving circuit。

2. DTF Transfer Printing Equipment

   Core control component for modified DTF garment printers, responsible for print‑head drive signal transmission and panel key input processing。

3. Commercial Photo Inkjet Devices

   Applied in large‑format photo inkjet machines, handling front‑panel button scanning, signal conditioning and print‑head logic control。

4. Printer After‑market Maintenance & Spare Parts

   Widely used in printer repair shops as replacement spare chip to resolve no‑print, key‑panel malfunction faults。
