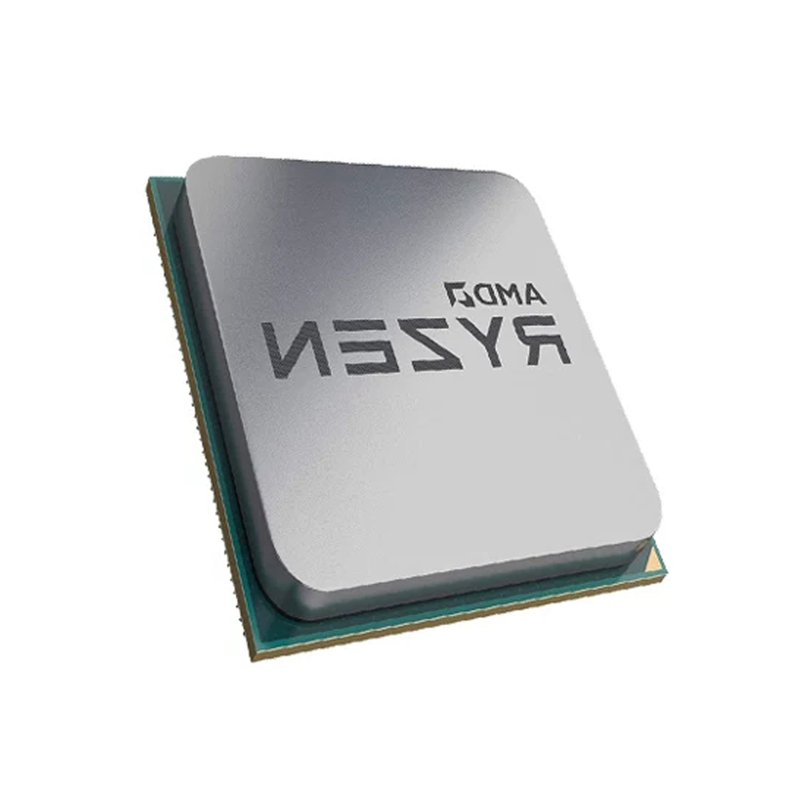

AMD Ryzen 5 5500
Ryzen 5 5500 belongs to AMD Ryzen 5000 Cezanne series desktop processor, manufactured by TSMC 7nm Zen3 process, delivering improved IPC performance. It features 6 cores and 12 threads with SMT multi‑thread technology, base clock 3.6GHz, max boost clock up to 4.2GHz, equipped with 3MB L2 cache and 16MB L3 cacheAMD.
Default TDP is 65W, multiplier is unlocked for manual overclocking, supports DDR4‑3200 dual‑channel memory and PCIe 3.0 interface. This CPU does not come with onboard iGPU, discrete graphics card is mandatory for video output. It fits AM4 socket motherboards including A520, B450, B550, X470, X570 chipsets.
Great choice for 1080p gaming, daily office work, multi‑task processing and simple video editing. Box version comes with Wraith Stealth stock cooler, tray version needs third‑party cooling solution.
The AMD Ryzen 5 5500 is a mainstream cost‑performance desktop microprocessor built on AMD Zen3 Cezanne architecture with TSMC 7nm FinFET manufacturing processAMD. Equipped with 6 physical cores and 12 SMT multi‑threads, this CPU delivers balanced single‑core and multi‑thread computing capability. It targets entry‑to‑mid‑range gaming rigs, daily multi‑task office terminals and light‑duty creative workstations, meeting mainstream computing requirements for DIY assembly, small‑business deployment and system refurbishment projects.
2. 3.6GHz Base / Up to 4.2GHz Max Boost Clock Frequency
This processor runs at 3.6GHz base clock and reaches up to 4.2GHz maximum boost frequency for single‑core intensive workloadsAMD. Optimized single‑core performance improves game frame‑rate output, program responsiveness and application loading efficiency. Powered by AMD Precision Boost 2 technology, it dynamically adjusts frequency according to thermal and power status, maintaining stable frequency output under variable daily desktop loads. Standard air cooling solution satisfies regular long‑time operation demands.
3. Multi‑Level Cache Architecture & Mature AM4 DDR4 Platform Ecosystem
Featuring 384KB L1 Cache, 3MB L2 Cache and 16MB shared L3 Cache, the Ryzen 5 5500 reduces data access latency and accelerates game asset loading, light‑weight video processing and batch file computationAMD. Adopting proven Socket AM4 interface, it supports dual‑channel DDR4‑3200 memory and PCIe 3.0 peripheral expansion, compatible with A520 / B450 / B550 / X570 series AM4 motherboardsAMD. Rich motherboard options bring flexible choices for new build and hardware replacement.
4. 65W Standard TDP, Unlocked Overclocking & DDR4 Memory Tuning Support
With 65W default TDP power envelope, this mainstream CPU realizes great balance between computing power and thermal dissipation, compatible with stock Wraith Stealth cooler and mainstream aftermarket air coolersAMD. Multiplier is unlocked for manual overclocking; users can tune DDR4 memory parameters to acquire higher system performance, providing extra adjustment space for DIY hardware enthusiasts. Note: This model has no integrated iGPU, discrete graphics card is mandatory for video outputAMD。
5. Desktop‑Grade IC Reliability & Broad Software‑Hardware Compatibility
Manufactured under strict AMD processor IC production standards, the chip maintains stable operation under standard desktop thermal conditions. It supports AMD‑V hardware virtualization for virtual‑machine running. Suitable for DIY desktop assembly, commercial PC batch deployment and old‑host performance upgrade, delivering reliable continuous operation for gaming, office and light‑creation computing hosts.
Item | Specifications |
|---|---|
Part Number | AMD Ryzen 5 5500 |
Product Series | AMD Ryzen 5000 Series Zen3 Desktop Microprocessor Integrated Circuit |
Architecture | Zen3 (Cezanne) |
Process | TSMC 7nm FinFET |
Core / Thread | 6 Cores / 12 Threads (SMT Enabled) |
Base Frequency | 3.6 GHz |
Max Boost Frequency | Up to 4.2 GHz |
Cache | L1:384KB; L2:3MB; L3:16MB |
Default TDP | 65W |
Socket | Socket AM4 |
Memory Support | Dual‑Channel DDR4 up to 3200MT/s |
PCIe Version | PCIe 3.0 |
Integrated Graphics | None (Discrete GPU Required) |
Overclock Support | Unlocked Multiplier, Precision Boost 2 Supported |
Core Technology | Zen3 CPU Architecture, SMT Simultaneous Multi‑Threading, Precision Boost 2, AMD‑V Virtualization |
Form Factor | Desktop Socket AM4 Processor |
Core Advantages | 7nm advanced process, 6C12T balanced performance, 4.2GHz boost clock, unlocked overclocking, mature AM4 DDR4 platform, outstanding cost‑performance ratio |
Application Grade | Entry‑Mid Gaming Desktops, Daily Office PCs, Light‑Duty Content‑Creation Hosts, Small‑Business Computing Terminals, Hardware Upgrade & System Refurbishment |
The AMD Ryzen 5 5500 serves as main processing core for budget‑friendly AM4 gaming systems. Decent single‑core performance ensures smooth frame‑rate output for mainstream e‑sports titles and mid‑range 3A games. When paired with discrete graphics card, it delivers stable gaming experience for home users and DIY builders.
2. Light‑Duty Content Creation & Multi‑Task Daily Computing
Benefiting from 6‑core 12‑thread multi‑thread capability, this CPU handles image processing, simple video editing, multi‑layer document processing and multi‑software concurrent running efficiently. It satisfies daily creative workloads for freelance amateurs and small‑studio lightweight projects.
3. Office & Small‑Business Desktop Terminal Deployment
Stable multi‑task processing capacity supports massive browser tabs, office suites and batch file processing. It improves work efficiency for commercial office, retail business and small‑enterprise desktop hardware batch deployment.
4. DIY Enthusiast AM4 Platform & Tuning‑Oriented Builds
Unlocked overclocking function and DDR4 memory tuning space provide performance‑adjustment potential for PC hobbyists. Mature AM4 ecosystem supplies abundant motherboard and peripheral hardware options for system assembly and modification.
5. Batch Desktop Hardware Iteration & System Refurbishment
As cost‑effective AM4‑platform desktop processor IC component, Ryzen 5 5500 features wide cross‑brand motherboard compatibility. It is widely used in new‑machine assembly, legacy host performance upgrade and bulk‑quantity commercial PC refresh projects, building high‑cost‑performance mainstream desktop computing infrastructure.
