Product Advantage ▼
Engineered specifically for demanding industrial automation workflows, intelligent IoT networks, and advanced household appliance designs, the 59140 miniature flange mount reed sensor resolves complex position detection challenges. By combining a highly sensitive magnetic mechanism with a resilient exterior, this sensor provides engineers with a reliable, low-maintenance component that ensures operational continuity. It serves as a foundational sensing unit that prevents mechanical failures, reduces downtime, and optimizes the overall efficiency of your electromechanical systems. The detailed engineering benefits are outlined below to help you evaluate its fit for your specific project requirements.
Utilizing a friction-free magnetic switching architecture, this miniature sensor excels in punishing environments exposed to moisture, airborne dust, and corrosive elements. The internal reed contacts are isolated from external physical wear. When operating under standard microcontroller voltages and logic-level loads, the hermetically sealed mechanism achieves millions of flawless operational cycles. This extraordinary longevity drastically cuts down on replacement frequency and long-term maintenance overhead for continuous-duty industrial machinery.
Space constraints are a common hurdle in modern equipment design. This sensor occupies a remarkably minimal installation area of merely 3.22cm², granting mechanical engineers immense structural design freedom. The optimized flange housing facilitates precise positional adjustments during assembly. Furthermore, it supports dual fastening methods—secure screw mounting for heavy-vibration zones or industrial-grade adhesive backing for rapid attachment on flat surfaces, ensuring stable fixation across diverse chassis materials.
Encased in a rigid, moisture-repellent polymer shell, the internal circuitry is fully protected by an IP67-rated hermetic epoxy seal. This resilient construction effectively blocks fluid ingress and particulate contamination. Beyond its physical endurance, the component strictly complies with UL508, CSA C22.2 No.14, and REACH regulatory standards. These authoritative international certifications provide documented assurance of operational safety, facilitating smooth regulatory approvals and export processes for your finished equipment destined for North American and European markets.
Energy efficiency is critical for remote monitoring systems. Unlike solid-state alternatives, this passive reed sensor exhibits absolutely zero leakage current when the contacts remain in the open state. This true zero-power standby characteristic eliminates unnecessary battery drain, thereby significantly extending the operational lifespan of wireless IoT terminals, smart building access controllers, and portable diagnostic instruments. It empowers developers to build greener, more energy-efficient battery-powered networks.
To streamline your mass production and OEM assembly procedures, the sensor offers extensive connection adaptability. It provides standard right-side cable exits, with alternative left-side routing options (similar to the 59141 series) available to match specific enclosure layouts. Buyers can specify custom wire lengths, insulation materials, and pre-crimped terminal connectors. This plug-and-play readiness eliminates secondary wire processing on your factory floor, accelerating final product assembly.
Engineered to handle diverse circuit requirements, the device is available in Normally Open (NO), Normally Closed (NC), and Changeover (CO) contact configurations. It confidently manages switching loads up to 265Vac or 300Vdc, alongside a 10VA power rating, making it suitable for both low-level signal routing and moderate power control. Additionally, its magnetic induction capability easily penetrates non-ferrous barriers—such as thick plastics, solid wood panels, and aluminum extrusions—enabling completely concealed, tamper-proof installations.
Achieving precise limit triggering requires perfectly paired magnetic counterparts. This sensor is designed to integrate flawlessly with standard magnetic actuators, including the 57140 and 57141 series. This guaranteed compatibility ensures highly accurate actuation distances and reliable system-wide performance. It simplifies the procurement process for buyers seeking complete sensor-actuator sets and serves as a dependable drop-in replacement part for existing OEM equipment upgrades.
Technical Parameters ▼

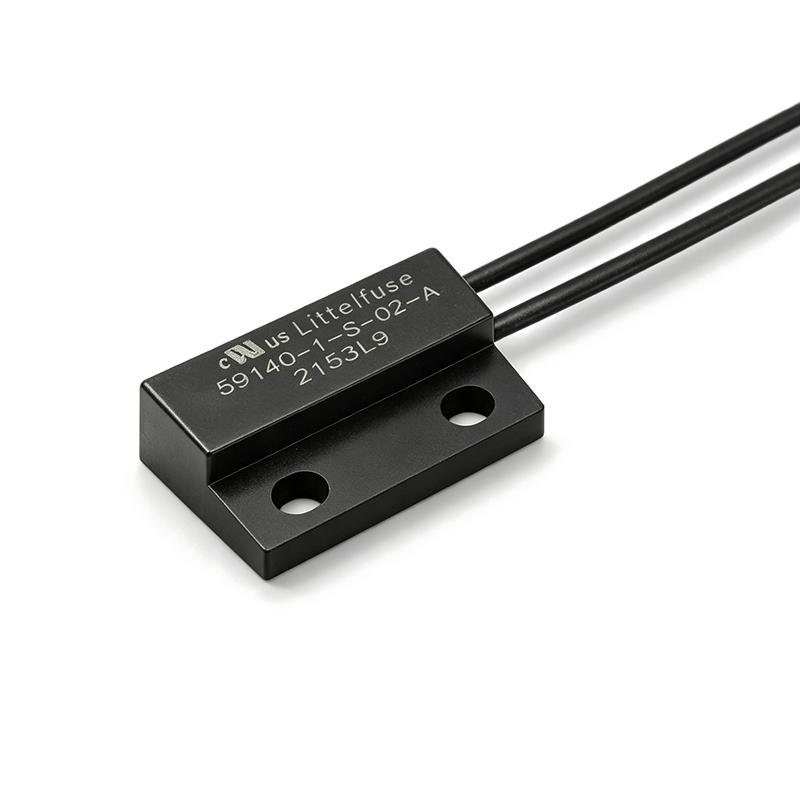

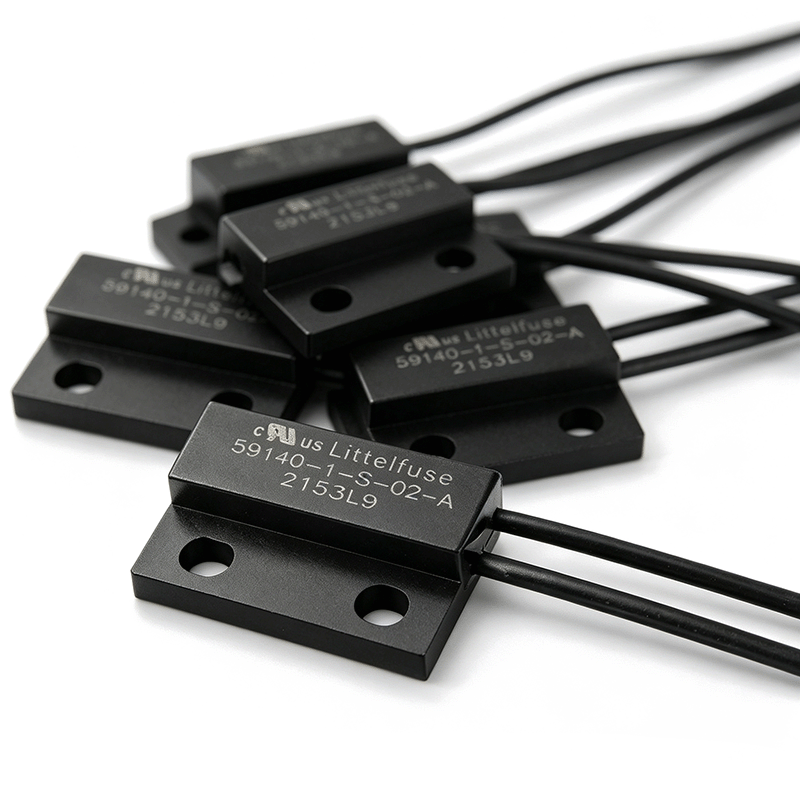

Product Model | 59140 Miniature Flange Mount Reed Sensor |
|---|---|
Working Principle | Non-contact magnetic reed proximity induction |
Mounting Method | Flange fixed mounting |
Protection Class | IP67 waterproof & dustproof, hermetically sealed |
Official Certifications | UL Recognized (UL 508), CSA C22.2 No.14, REACH compliant |
Standby Performance | No leakage current in open state |
Detection Ability | Can penetrate non-ferrous materials: plastic, wood, aluminum |
Adjustability | Adjustable housing; multiple sensitivity & operating distance options |
Cable Options | Standard cable layouts + custom cable length / connectors available |
Structural Feature | Compact size, supports concealed installation |
Suitable Environment | Wet, dusty and harsh industrial environments |
Product Uses ▼
Leveraging its IP67-rated enclosure, ultra-low power consumption profile, and highly adaptable flange structure, this magnetic proximity sensor is successfully deployed across a multitude of demanding sectors. It acts as the critical sensory input for complex control systems, ensuring precise mechanical choreography. The primary implementation scenarios include:
Extensively utilized in commercial and residential security networks, the sensor provides real-time feedback on the opening and closing status of doors, windows, and secure cabinets. It integrates flawlessly into smart locking mechanisms and access permission management systems. By delivering instant, false-alarm-free status updates, it guarantees building safety while enabling intelligent energy-saving controls, such as automatically disabling HVAC systems when windows are detected open.
In the realm of industrial processing, accurate position feedback is non-negotiable. This sensor functions as a highly dependable limit stroke detector on automated production lines and CNC processing machinery. Furthermore, it is an ideal position sensing component for material handling vehicles, including pallet trucks, electric stackers, and linear actuators. By continuously monitoring component positions, it prevents catastrophic equipment overtravel, eliminates mechanical collisions, and ensures a stable, uninterrupted automated workflow.
Appliance manufacturers embed this miniature sensor within the chassis of modern refrigerators, washing machines, and specialized kitchen equipment to monitor door and lid closures. Its compact size allows for unobtrusive placement without disrupting the appliance's aesthetic design. Upon detecting an open or closed state, the sensor triggers the main control board to automatically adjust working modes—pausing a spin cycle or activating interior lighting—thereby maximizing energy conservation and protecting users from moving parts.
Beyond specific niches, this component serves as a universal position feedback solution for a vast array of electromechanical devices. Whether deployed in automated dispensing kiosks, medical diagnostic equipment, or motorized window treatments, it executes non-contact proximity induction and stroke limit monitoring with exceptional accuracy. Its ability to perform reliably without physical contact ensures that your equipment maintains peak operational integrity over years of continuous service.
