LMT86LP T

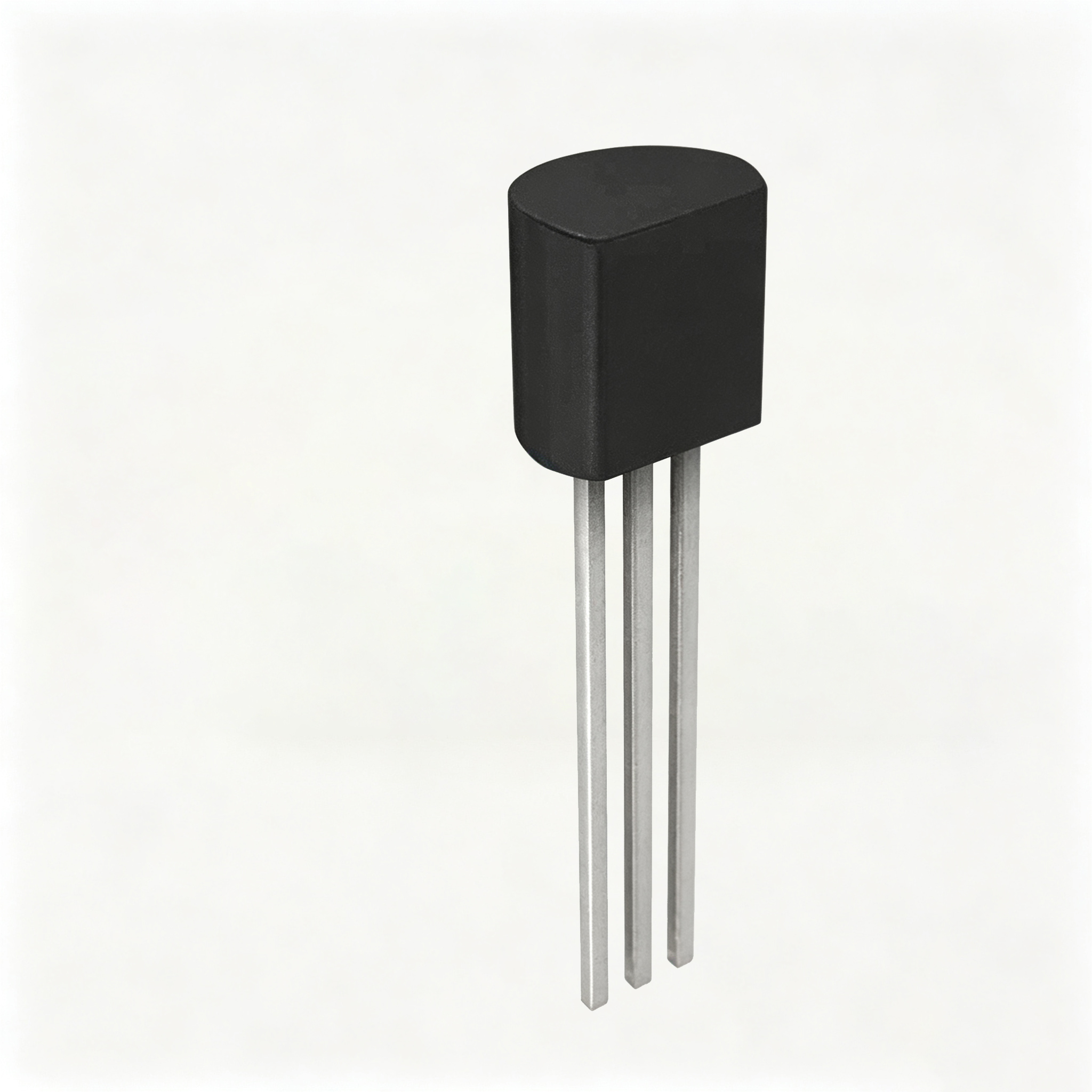

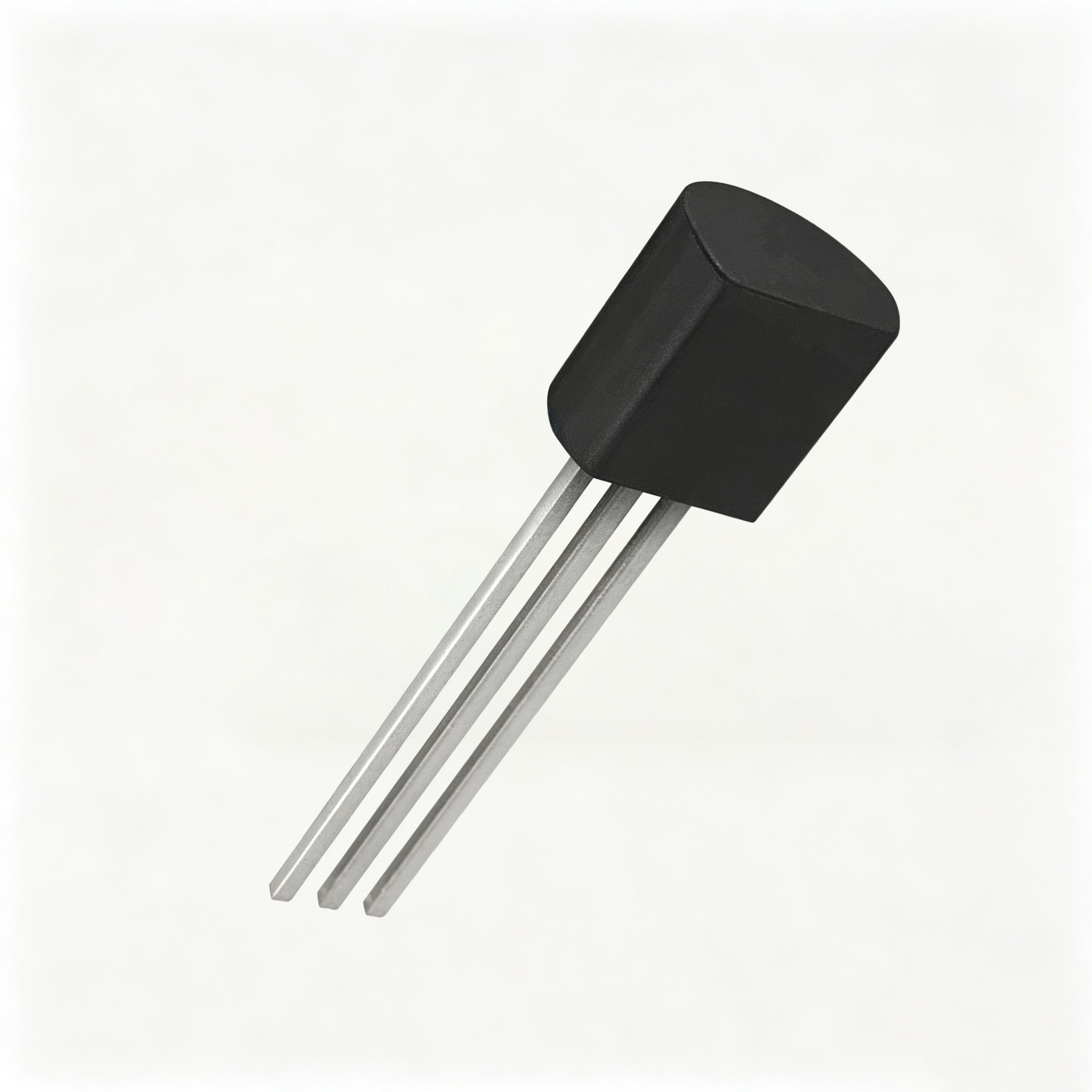

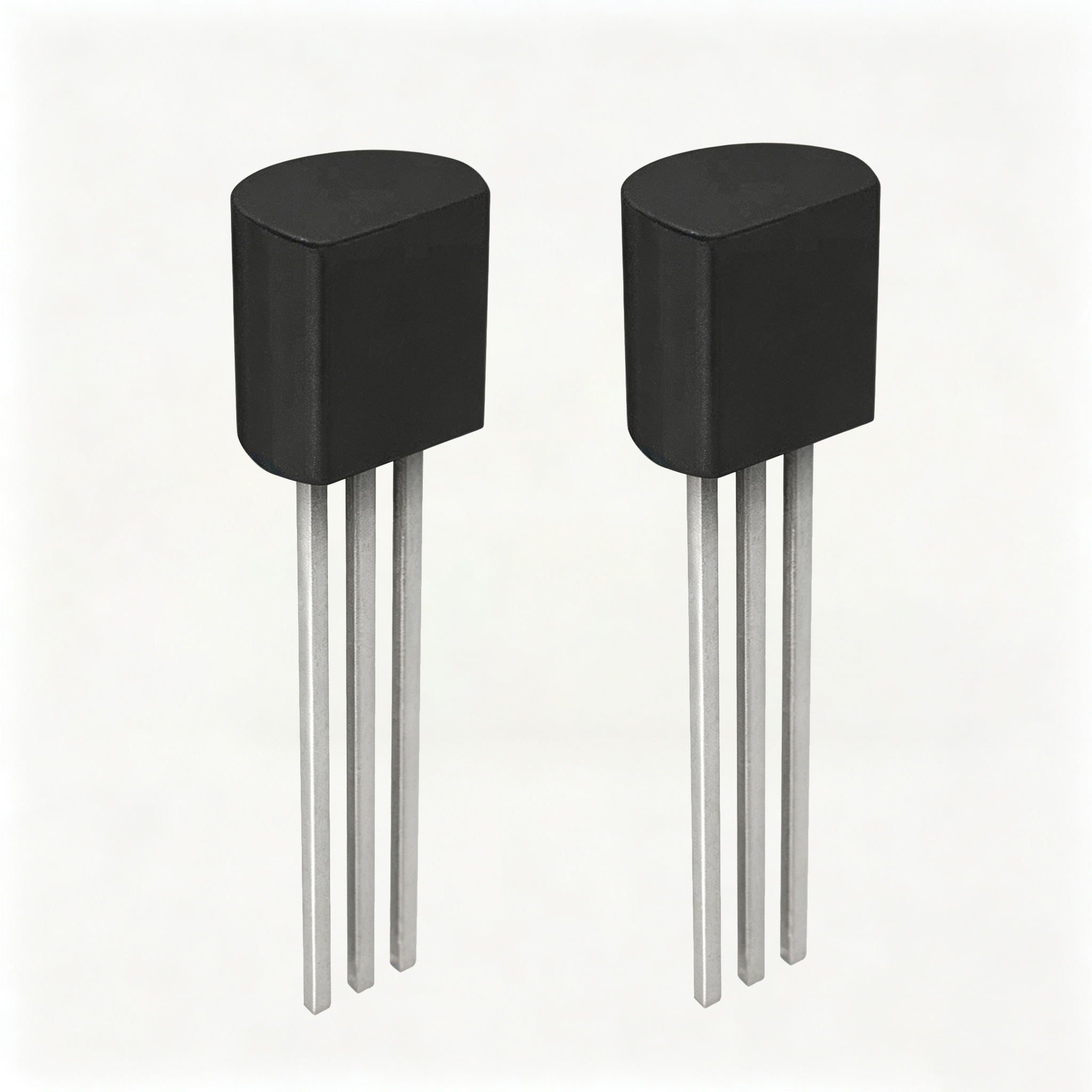

LMT86LP is a CMOS analog temperature sensor manufactured by TI in standard TO-92 through-hole package. Its output voltage decreases linearly as temperature rises at -10.9mV per degree Celsius.
The chip works at ultra-low supply voltage starting from 2.2V, with extremely low 5.4µA static current, making it well-suited for low-battery portable devices. Typical accuracy reaches ±0.4°C, maximum error ±2.7°C across full -50°C to 150°C temperature range.
It integrates push-pull class-AB output stage with low output impedance, can directly drive ADC inputs. Output short-circuit protection is included. The pin assignment is compatible with classic LM35, LM20 sensors for easy drop-in replacement, serving as a cost-effective upgrade alternative to thermistors.
1. Precision CMOS Temperature Sensing with Linear Inverse Analog Output
LMT86LP is a high-precision CMOS analog temperature sensor manufactured by TI. Its output voltage changes linearly inversely with temperature, with fixed transfer slope of -10.9mV/℃. Factory trimmed for consistent performance, typical accuracy ±0.4℃, maximum error ±2.7℃ across full temperature range. It is an economical alternative to traditional thermistors, delivering stable and repeatable temperature readings.
2. Low Voltage Operation & Ultra Low Power Consumption
Supports low supply voltage starting from 2.2V up to 5.5V, well suited for lithium battery powered portable systems. Typical quiescent current only 5.4µA, greatly reduces power drain and self-heating error for long-life battery equipment.
3. Push-Pull Output & Built-in Short-Circuit Protection
Adopts Class-AB push-pull output structure with ±50µA drive capability, directly connects to MCU ADC without extra buffer amplifier. Integrated output short-circuit protection, prevents chip damage under accidental output short conditions, improves circuit robustness for industrial and consumer designs.
4. TO-92 Package & Pin Compatibility with LM35 Series
Comes in TO-92 3-pin through-hole package, same pinout footprint as LM35, LM19 and LM20 sensors. Engineers can directly replace legacy temperature sensors without major PCB redesign. Wide working temperature range -50℃ ~ +150℃, covers most industrial and household thermal detection requirements.
5. Cost-Effective General Purpose Sensing Component
RoHS & REACH compliant. Widely adopted in new product development, equipment maintenance replacement, electronic prototype verification and BOM matching. Ideal for projects that demand high accuracy and low power budget.
Item | Specifications |
|---|---|
Part Number | LMT86LP |
Product Series | Precision CMOS Analog Temperature Sensor IC |
Manufacturer | Texas Instruments (TI) |
Output Type | Push-Pull Analog Voltage Output |
Sensor Gain | -10.9mV/℃ |
Supply Voltage | 2.2V ~ 5.5V DC |
Quiescent Current | Typical 5.4µA |
Temperature Measuring Range | -50℃ ~ +150℃ |
Accuracy | Typical ±0.4℃, Max ±2.7℃ |
Protection | Output Short-Circuit Protection |
Package | TO-92, 3 Pin Through-Hole |
Pin Definition | Pin1:VDD; Pin2:Vout; Pin3:GND |
Mounting Style | Through Hole |
Compliance | RoHS, REACH Compliant |
Core Advantages | Low voltage supply, ultra-low power, push-pull output, short-circuit protection, pin compatible with LM35, high precision, wide temperature range, cost-effective thermistor replacement |
Application Grade | Household Appliance Thermal Detection, Battery-Powered Portable Instruments, Industrial Equipment Temperature Monitoring, HVAC & Smoke Heat Detectors, Drone & Embedded Systems, Electronic Prototype, Equipment Repair & BOM Replacement |
1. Household Appliance Thermal Monitoring
Temperature detection for small home appliances, heat detectors and smoke alarm modules, realize overheat protection and temperature feedback.
2. Battery-Powered Portable Measurement Devices
Low power feature perfect for handheld temperature meters, portable IoT sensors and battery-operated embedded equipment.
3. Industrial Equipment & HVAC Thermal Sensing
Cabinet, pipeline and motor surface temperature sampling for industrial control and heating, ventilation system monitoring.
4. UAV and Embedded Electronic Systems
PCB temperature monitoring for drones and low-power embedded control boards, protect electronics from overheating damage.
5. Electronic Prototype, Teaching Experiment & BOM Replacement
Common temperature sensor for university lab projects and hardware prototype design, standard replacement component to substitute LM35 and thermistor in legacy equipment maintenance.
